IBZA SERIES
A New Experience in Sound Reinforcement

Ibza 6 PLUS





FULL-RANGE ULTRA-COMPACT HIFI LOUDSPEAKER
  • 2-Way coaxial passive speaker
  • 1 x 6 ½-inch LF poliester driver, Vented box
  • 1 x 1-inch compression drive

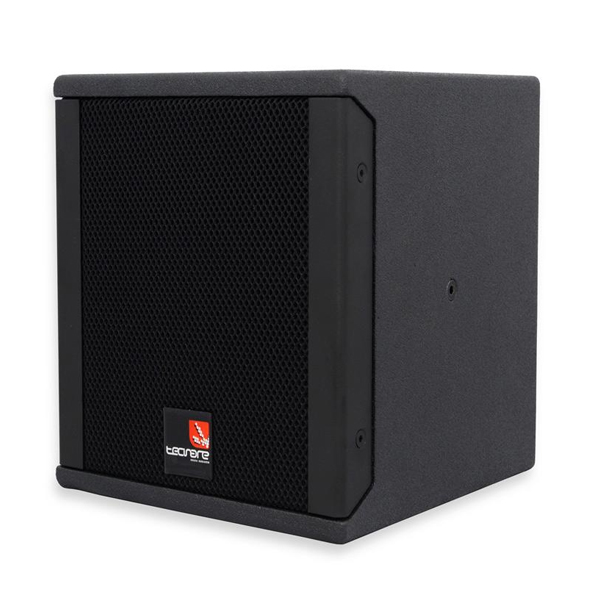

tecnare ibza6plus 6 inches coaxial loudspeaker right view
tecnare ibza6plus 6 inches coaxial loudspeaker, right perspective



160 W AES / 320 W continuos.

116 dB continuous / 122 peak

g

8 Ohm.

5,3 kg.


The IBZA 6 Plus is a very small trapezoidal compact full range loudspeaker of studio quality, designed to be used in a wide variety of audio applications where a small size although very high output SPL is required.

The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The IBZA 6 Plus is a versatile, two-way passive system designed for applications where very high output is required from an ultra-compact enclosure. It features a 6 ½ “ low frequency driver and a 1” compression driver attached to a conical horn. The combination exhibits a smooth power response resulting in extremely natural voicing. It can be used with a passive subwoofer (e.g. the SW12MiniSub).

The box houses multiple internal rigging points for ground-support, truss and wall mounting, pole mount socket, as well as SpeakON® NL4 connectors. The enclosure has been made with the latest techniques, ensuring a perfect and rigid construction. Weatherized finish is provided, as the cabinet is coated with a rugged Polyurea texture finish and protected by special grills.




Features

  • Passive Ultra-Compact, vented two-way loudspeaker
  • 1 x 6½-inch-LF polyester cone/ 1 x 1-inch compression driver
  • 70º conical directivity

Applications

  • Background music in restaurant, disco, club.
  • Gyms, museums and AV spaces
  • Near-field applications
  • Retail outlets


Frequency Response: 85 Hz – 20 kHz ± 3dB, measured on axys
Components 1 x 6,5-inch LF Ferrite driver and 1 x 1-inch Neodym. Ring HF driver
Nominal Dispersions: 70ºH x 70ºV @ 6dB point
Impedance: 8 Ohm
Axial Sensitivity: 93 dB (1w/1m)
Calculated SPL: 116 dB continuous / 122 dB peak
Power Handling: 160 W AES / 320 W continuos
Dimensions (HxWxD) (millimeters/inches): 230 x 211,7 x 223 (mm) / 9.05″x 8.31″ x 8.78″
Net Weight (kg/lbs): 5,3 kg. / 14.10 lbs
Construction: 16mm birch plywood. Finished in weathered coating with Polyurea protection and metal grills coated with acoustically transparent fabric
IBZA 6 PLUS
FULL-RANGE ULTRA-COMPACT HIFI LOUDSPEAKER

Ibza 6 HZ






HIGH IMPEDANCE LOUDSPEAKER



  • Compact Full-Range system
  • 6 ½” Full range loudspeaker
  • 40 Ω nominal impedance

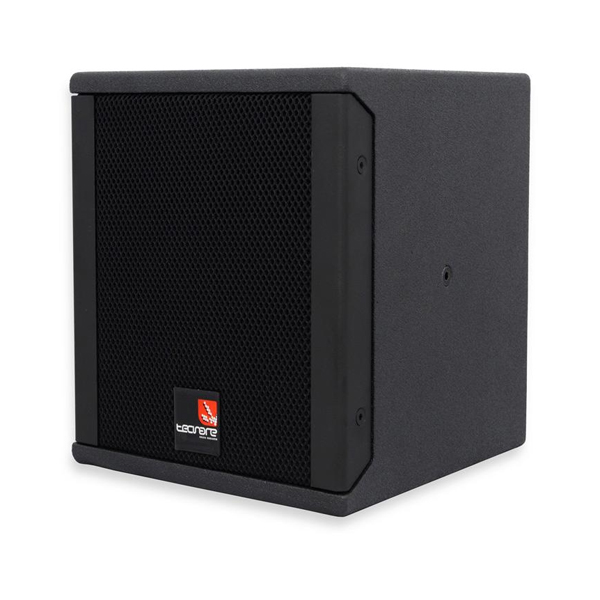

tecnare ibza6plus 6 inches coaxial loudspeaker, right perspective



100 W AES / 200 W continuous

SPL (1m): 111 dBspl / Maximum Peak SPL 117 dBspl

g

40 Ohm

5,3kg


The IBZA6HZ is a trapezoidal compact loudspeaker designed to provide high–quality sound and reliable performance for distributed systems. Housed in a wooden enclosure, the IBZA6HZ is especially suitable for installations involving space limitations and which long distance cables should be used. The exclusive special designed loudspeaker, 6½–inch cone transducer medium impedance, loaded in a vented-bass cabinet delivers a maximum peak SPL of 117 dB and it has a wide operation range of 110Hz to 20kHz with very low distortion, providing an extremely coherent coverage through 70° conical field.

In a full-range mode with or without processor the IBZA6HZ is perfect for speech and vocal applications such as conferencing, TV studios, shopping centre, etc. With a processor, it offers highly accurate music reproduction. Combined with Tecnare® subwoofers, IBZA6HZ is capable of high level performance in a variety of applications.

The box houses multiple internal rigging points M6 insert for different flying bracket and a 3/8” insert on the bottom for pole-mount.

The cabinet is coated with a rugged Polyurea texture finish and protected by special grille.



Features

  • Compact two-way passive system
  • 6 ½” Full range loudspeaker
  • 40 Ω nominal impedance
  • Mounting accessories

Applications

  • Background Music in restaurants, club, airpots
  • Museums and AV Spaces
  • Convention centres
  • Hotels
  • Distibuted, Fill and Bajo Balcony



Frequency Response: 110 Hz – 20 kHz ±3 dB
Components: 1 x 6 ½” cone drivers ferrita magnet, direct radiation. Bass-reflex
Nominal Dispersion: 70° x 70º
Impedance 40 Ohm
Sensitivity (1W/1m): 88 dB SPL
Calculated SPL: 111 dB continuous / 117 dB peak
Power Handling: 100 W (AES) /  200 W continuous
Dimensions (HxWxD) (milimeters / inches): 230 x 211,7 x 223 / 9.05″x 8.31″ x 8.78″
Net Weight (kg/Pounds): 5,3 kg / 11,68 lbs
Construction: 16mm birch plywood. Finished in weathered coating with Polyurea protection and metal grills coated with acoustically transparent fabric








IBZA 6 HZ
HIGH IMPEDANCE LOUDSPEAKER

Ibza 6







FULL-RANGE COMPACT LOUDSPEAKER



  • 2-Way Passive Loudspeaker
  • 1 x 6 ½-inch LF cone, Vented box
  • 1 x 1.25-inch tweeter

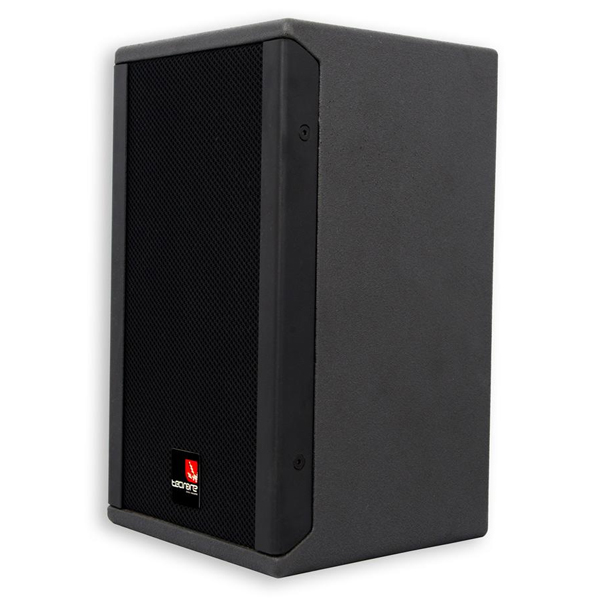

Tecnare Ibza6 Full Range Loudspeaker, right view


200 W AES / 400 W continuos



116 dB continuous / 122 peak



8 Ohm.



4,5 kg.


The IBZA6 is a small trapezoidal compact full-range loudspeaker of studio quality, designed to be used in a wide variety of audio applications as a small sound reinforcement unit. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting.

The IBZA6 is a versatile, two-way passive system designed for applications where high output is required from an ultra-compact enclosure. It features a long-excursion, 6½-inch low frequency driver and a 1.25-inch dome tweeter. The combination exhibits  a smooth power response resulting in extremely natural voicing. It has been designed for use as stand-alone full-range speaker or together with a passive subwoofer to create a full-range system (e.g. the SW12MiniSub).

The box houses multiple internal rigging points for ground-support, truss and wall mounting, pole mount socket, and Speakon® NL4 connectors.

The enclosure has been made with the latest techniques, ensuring a perfect and rigid construction.

Weather protected finish is provided, as the cabinet is coated with a rugged Durawound texture finish and protected with specially grills.


Features

  • Compact, vented two-way system
  • 1 x 6½-inch-LF/ 1 x dome tweeter
  • High-output, low profile

Applications

  • Background music in restaurant, disco, club.
  • Gyms, museums and AV spaces
  • Near-field applications
  • Retail outlets



Frequency Response: 82 Hz – 20 kHz ± 3dB, measured on axys
Components: 1 x 6,5-inch LF driver and 1 x 1.25-inch Tweeter
Nominal Dispersions: 80ºH x 80ºV @ 6dB point
Impedance: 8 Ohm
Axial Sensitivity (1w/1m): 93 dB
Calculated SPL: 116 dB continuous / 122 dB peak
Power Handling: 200 W AES / 400 W continuos
Dimensions (HxWxD) (millimeters/inches): 330 x 215 x 207  / 13.07″x 8.46″ x 8.11″
Net Weight (kg/lbs): 4,5 kg. / 14.10 lbs
Construction: 16mm birch plywood. Finished in Durawound weather protection coating and coated perforated steel grille with acoustically transparent reticulated fabric

IBZA 6
FULL-RANGE COMPACT LOUDSPEAKER
