Top Rated

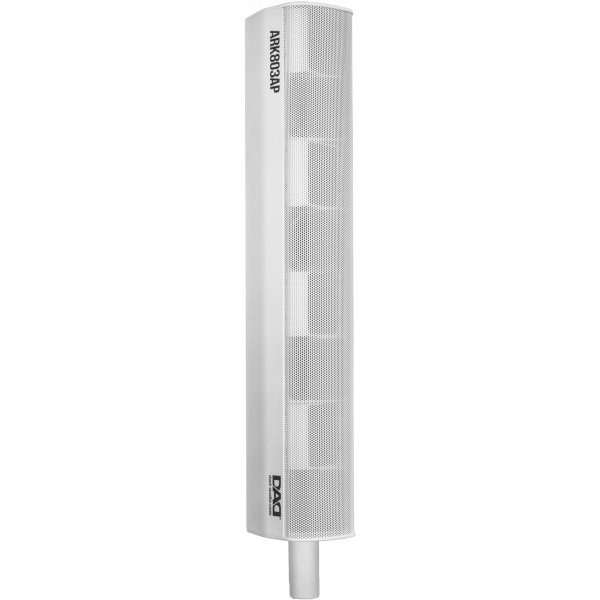

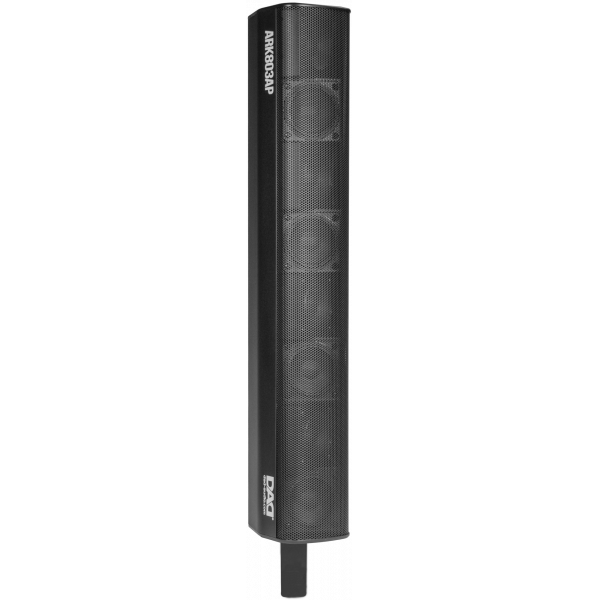

ARK803AP
Column line array loudspeaker module, 200W AES, 120dB SPL.
Features:
Mid frequency:8x3 '' midrange / 0.75'' v.c.
Frequency response:135-17000 Hz (±3dB)
Coverage angle HxV:115x20 °
The modules with 8 transducers of 3” can be configured in vertical array too and represent the solution to sound in deep environments particularly difficult, where quality and intelligibility are required. Column modules with an off-axis transducer for wide horizontal dispersion.
Aluminium frame for a very robust yet lightweight design that fits in with any environment
LOUDSPEAKER
- System type: column loudspeaker
COMPONENTS
- Mid frequency: 8x3'' midrange / 0.75'' v.c.
FEATURES
- AES/program power: 200/400W
- SPL max: 120dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
- Sensitivity: 95dB @1W/1m (free field)
- Impedance: 16 Ohm
- SPL cont/peak: 114/120dB @1m (free field)
- Frequency response: 135-17000Hz (±3dB)
- Coverage angle HxV: 115x20°
- Suggest LPF range: 140/180Hz
- Recommended amplifier up to: 400W /16Ohm
INPUT/OUTPUT CONNECTORS
- Input signal: Jack 6.35 mm IN/OUT
CABINET CONSTRUCTION
- Cabinet material: 3mm aluminum die cast
- Sospension system: support with signal connection
PHYSICAL
- Dimensions (WxHxD): 110x770x148mm
- Weight: 7.6kg
ARK803AP

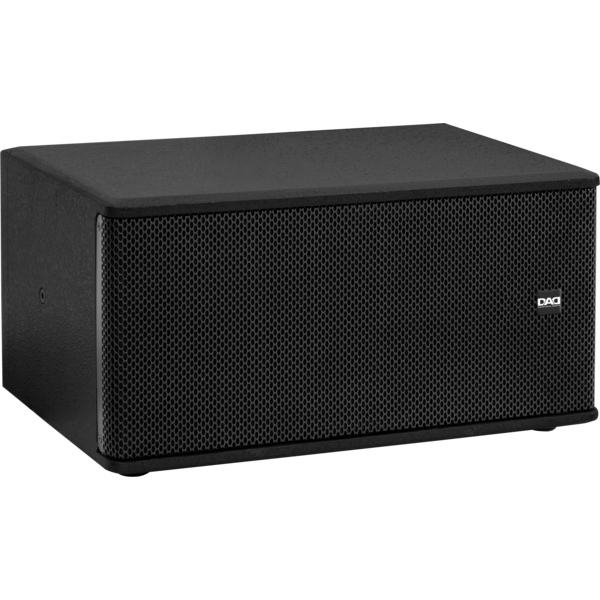

ARK1200SA
Active sub woofer 600W with 2x300W/4 Ohm stereo output.
Features:
Low frequency: 2x8 '' woofer/2'' v.c.
Frequency response:40/200 Hz (±3dB)
Adjustable Crossover: LPF:80/120 Hz - HPF 22, 80,125 Hz
Can be used with full range speakers in the ARK series.
Possible combinations ARK1200SA + 2 x ARK105 / 106 / 205 / 206, up to 4 for each channel.
Birch plywood enclosure.
PHYSICAL
- Dimensions (WxHxD): 500x246x325mm
- Weight: 14.5kg
LOUDSPEAKERS
- System type: active subwoofer with amplified stereo out
COMPONENTS
- Low frequency: 2x8'' woofer/2''v.c.
ACOUSTICAL SPECIFICATIONS
- SPL cont/peak: 120/126dBdB @1m (free field)
- Frequency response: 40/200Hz (±3dB)
- Coverage angle HxV: ° omnidirectional
INPUT/OUTPUT CONNECTORS
- Input signal: XLR IN/OUT, jack 6.35 mm, pin RCA unbal.
- Output signal: 2 x 4 pole
- Power connection: powerCON IN/OUT
ELECTRONICS
- Amplifier: Digital
- Power: 600+2x300W /4Ohm
- Input sensitivity: 4 dBu (1,228Vrms) adjustable
- Protection: limiter temp.
- User controls: mic, line, master, eq LF-HF
- Operating voltage/frequency 220 V~240 V/50 Hz
CABINET CONSTRUCTION
- Cabinet material: 15mm plywood
- Sospension system: wall brackets (included)
FEATURES
- Amplified subwoofer: Built-in amp LF 600 + MF/HF 2x300W 4Ohm
- Adjustable crossover: LPF:80/165 Hz - HPF 22, 80,125 Hz
ARK1200SA
ARK112SP
Bass reflex passive subwoofer, 400W AES,125dB SPL
Features:
Low frequency: 12 '' woofer/3'' v.c
Frequency response:40-200 Hz (±3dB)
ARK112SP subwoofer speaker is the ideal complement to column loudspeakers for reinforcing low notes.
Signal connection between the subwoofer and medium-high column units via a connector integrated with the loudspeaker.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
Birch plywood enclosure.
LOUDSPEAKER
- System type: passive subwoofer
COMPONENTS
- Low frequency: 12'' woofer/3''v.c.
FEATURES
- AES/program power: 400/800W
- SPL max: 125dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
- Sensitivity: 96dB
- Impedance: 8
- SPL cont/peak: 119/125dB @1m (free field)
- Frequency response: 40-200Hz (±3dB)
- Coverage angle HxV: ° omnidirectional
- Suggest LPF range: 100/160Hz
- Recommended amplifier up to: 800W
INPUT/OUTPUT CONNECTORS
- Input signal: jack 6.35 mm, NL4 IN/OUT
CABINET CONSTRUCTION
- Cabinet material: 15mm plywood
- Sospension system: support with signal connection
- Handles: 2 on side, 1 top
PHYSICAL
- Dimensions (WxHxD): 362x520x470mm
- Weight: 21.9kg
ARK112SP

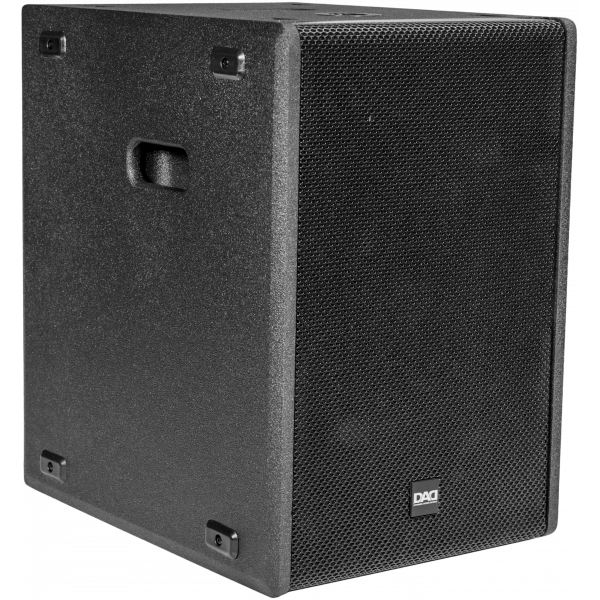

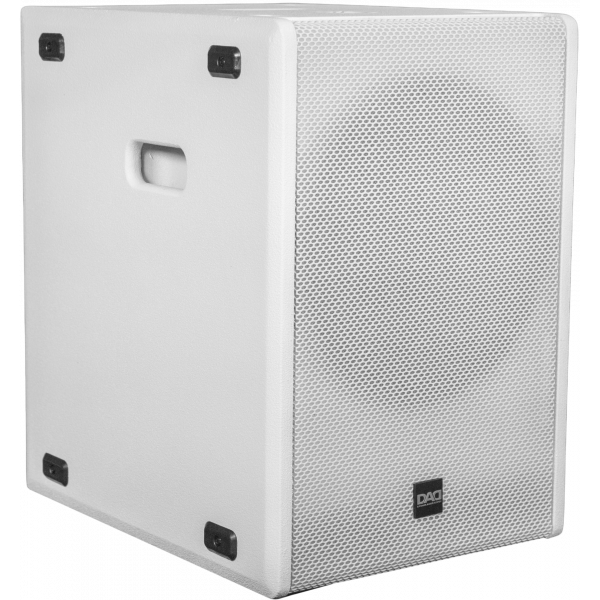

ARK112SA
Bass-reflex active subwoofer, 2x700W D-class amplifier, 124dB SPL
Features:
Low frequency: 12 '' woofer/3'' v.c.
Frequency response:40-200 Hz (±3dB)
Built-in DSP: fully adjustable.
ARK112SA amplified subwoofer speaker can drive up to 2 column speakers of the ARK column series plus an additional ARK112SP passive subwoofer.
Signal connection between the subwoofer and medium-high column units via a connector integrated with the loudspeaker.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
Birch plywood enclosure.
LOUDSPEAKER
- System type: active subwoofer
COMPONENTS
- Low frequency: 12'' woofer/3''v.c.
FEATURES
- Built-in amp LF/MF-HF: 700+700W /4Ohm
- Built-in DSP: DSP fully adjustable
ACOUSTICAL SPECIFICATIONS
- SPL cont/peak: 118/124dB @1m (free field)
- Frequency response:40-200Hz (±3dB)
- Coverage angle HxV: ° omnidirectional
- Suggest LPF range: 120/200Hz
ELECTRONICS
- Amplifier: digital
- Power: 700 +700W /4Ohm
- Input sensitivity: 4 dBu (1,228Vrms) adjustable
- Protection: limiter temp.
- User controls: mic, line, master, eq LF-HF
- Built-in DSP: 28/56bit
- Operating voltage/frequency: 220 V~240 V/50 Hz
INPUT/OUTPUT CONNECTORS
- Input signal: XLR IN/OUT
- Output signal: jack 6.35 mm, 4 pole IN/OUT
- Data: USB port
- Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
- Cabinet material: 15mm plywood
- Sospension system: support with signal connection
- Handles: 2 on side, 1 top
PHYSICAL
- Dimensions (WxHxD): 362x520x470mm
- Weight: 24.1kg
ARK112SA

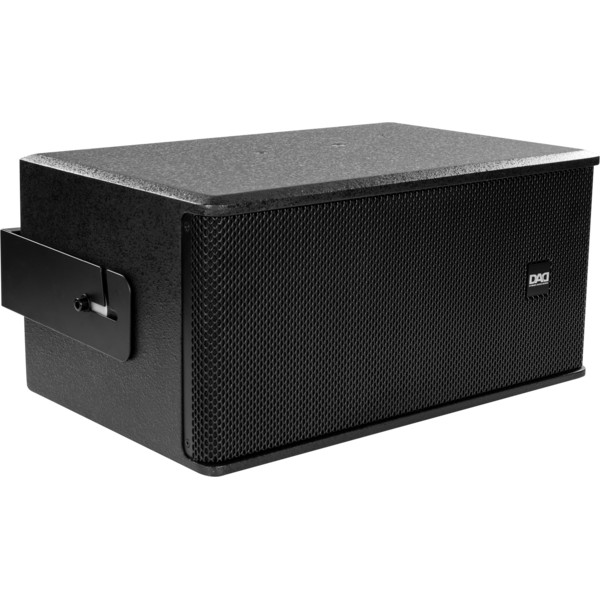

ARK208SA
Bass-reflex active subwoofer, 2x700W D-class amplifier, 121dB SPL
Features:
Low frequency: 2x8 '' woofer/2'' v.c.
Frequency response:40-200 Hz (±3dB)
Built-in DSP: fully adjustable
ARK208SA amplified subwoofer speaker can drive up to 4 full range speakers of the ARK series plus an additional ARK208SP passive subwoofer.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
Birch plywood enclosure.
PHYSICAL
- Dimensions (WxHxD): 500x246x235mm
- Weight: 14.5kg
LOUDSPEAKERS
- System type: active subwoofer
COMPONENTS
- Low frequency: 2x8'' woofer/2''v.c.
ACOUSTICAL SPECIFICATIONS
- SPL cont/peak: 116/122dB @1m (free field)
- Frequency response: 40-200Hz (±3dB)
- Coverage angle HxV: ° omnidirectional
- Suggest LPF range: 120/200Hz
INPUT/OUTPUT CONNECTORS
- Input signal: XLR IN/OUT
- Output signal: 2 x 4 pole
- Data: RJ485 port
- Power connection: powerCON IN/OUT
ELECTRONICS
- Amplifier: digital
- Power: 700+700W /4Ohm
- Input sensitivity: 4 dBu (1,228Vrms) adjustable
- Protection: limiter temp.
- User controls: volume
- Built-in DSP:28/56bit
- Operating voltage/frequency: 220 V~240 V/50 Hz
CABINET CONSTRUCTION
- Cabinet material: 12mm plywood
- Sospension system: wall brackets (included)
FEATURES
- Built-in amp LF/MF-HF: 700+700W /4Ohm
- Built-in DSP: fully adjustable
ARK208SA
ARK205MP
Features:
Low frequency: 2x5 '' woofer/0.75'' v.c.
High frequency: 1 '' driver / 1.5'' v.c.
Frequency response:75-18000 Hz (±3dB)
ARK205MP full range speakers are suitable for small installations or can be used as satellites in combination with the passive or active sub.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
Birch plywood enclosure.
2-way passive loudspeaker, 240W AES, 119dB SPL
Features:
Low frequency: 2x5 '' woofer/0.75'' v.c.
High frequency: 1 '' driver / 1.5'' v.c.
Frequency response:75-18000 Hz (±3dB)
ARK205MP full range speakers are suitable for small installations or can be used as satellites in combination with the passive or active sub.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
Birch plywood enclosure.
PHYSICAL
- Dimensions (WxHxD): 186x438x208mm
- Weight: 8.6kg
LOUDSPEAKERS
- System type: passive 2 way
COMPONENTS
- Low frequency: 2x5'' woofer/1.5''v.c.
- High frequency: 1'' driver/1''v.c.
ACOUSTICAL SPECIFICATIONS
- Sensitivity: 92dB @1W/1m (free field)
- Impedance: 16 Ohm
- SPL cont/peak: 113/119dB @1m (free field)
- Frequency response: 75-18000Hz (±3dB)
- Coverage angle HxV: 140x140°
- Cross over frequency: 2200Hz
- Protection: H.F. signal compression
- Suggest HPF range: 140/180Hz
- Recommended amplifier up to: 480W /16Ohm
INPUT/OUTPUT CONNECTORS
- Input signal: 4pole - terminal clamp IN/OUT
CABINET CONSTRUCTION
- Cabinet material: 12mm plywood
- Sospension system: wall brackets (included)
- Angle: 7.5° trapezoidal taper
FEATURES
- AES/program power: 240/480W
- SPL max: 119dB @1m (free field)
ARK205MP
ARK403MP
Wall mounted column loudspeaker, 100W AES, 114dB SPL
Features:Mid frequency:4x3 '' midrange / 0.75'' v.c.
Frequency response:135-17000 Hz (±3dB)
Coverage angle HxV:115x20 °
The modules with 4 transducers of 3” represent the solution to sound in deep environments particularly difficult, where quality and intelligibility are required.
Column modules with an off-axis transducer for wide horizontal dispersion.
Aluminium frame for a very robust yet lightweight design that fits in with any environment.
LOUDSPEAKER
- System type: column loudspeaker
COMPONENTS
- Mid frequency: 4x3'' midrange / 0.75'' v.c.
FEATURES
- AES/program power: 100/200W
- SPL max: 114dB@1m (free field)
ACOUSTICAL SPECIFICATIONS
- Sensitivity: 92dB @1W/1m (free field)
- Impedance: 8 Ohm
- SPL cont/peak: 108/114dB @1m (free field)
- Frequency response: 135-17000Hz (±3dB)
- Coverage angle HxV: 115x20°
- Suggest HPF range: 140/180Hz
- Recommended amplifier up to: 200W /8Ohm
INPUT/OUTPUT CONNECTORS
- Input signal: 4pole IN/OUT
CABINET CONSTRUCTION
- Cabinet material: 3mm aluminum die cast
- Sospension system: wall brackets (included)
PHYSICAL
- Dimensions (WxHxD): 110x350x148mm
- Weight: 5.8kg
ARK403MP
ARK803MP
Wall mounted column loudspeaker, 200W AES, 120dB SPL
Features:Mid frequency:8x3 '' midrange / 0.75'' v.c.
Frequency response:135-17000 Hz (±3dB)
Coverage angle HxV:115x20 °
The modules with 8 transducers of 3” represent the solution to sound in deep environments particularly difficult, where quality and intelligibility are required.
Column modules with an off-axis transducer for wide horizontal dispersion.
Aluminium frame for a very robust yet lightweight design that fits in with any environment.
LOUDSPEAKER
- System type: column loudspeaker
COMPONENTS
- Mid frequency: 8x3'' midrange / 0.75'' v.c.
FEATURES
- AES/program power: 200/400W
- SPL max: 120dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
- Sensitivity: 95dB @1W/1m (free field)
- Impedance: 16 Ohm
- SPL cont/peak: 114/120dB @1m (free field)
- Frequency response: 135-17000Hz (±3dB)
- Coverage angle HxV: 115x20°
- Suggest HPF range: 140/180Hz
- Recommended amplifier up to: 400W /16Ohm
INPUT/OUTPUT CONNECTORS
- Input signal: 4pole IN/OUT
CABINET CONSTRUCTION
- Cabinet material: 3mm aluminum die cast
- Sospension system: wall brackets (included)
PHYSICAL
- Dimensions (WxHxD): 110x690x148mm
- Weight: 7.5kg
ARK803MP
ARK206MP
2-way passive loudspeaker, 240W AES, 122dB SPL
Features:
Low frequency: 2x6 '' woofer/0.75'' v.c.
High frequency: 1 '' driver / 1.5'' v.c.
Frequency response:65-18000 Hz (±3dB)
ARK206MP full range speakers are suitable for small installations or can be used as satellites in combination with the passive or active sub.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
Birch plywood enclosure.
PHYSICAL
- Dimensions (WxHxD): 202x498x233mm
- Weight: 9.5kg
LOUDSPEAKERS
- System type: passive 2 way
COMPONENTS
- Low frequency: 2x6'' woofer/1.5''v.c.
- High frequency: 1'' driver/1''v.c.
ACOUSTICAL SPECIFICATIONS
- Sensitivity: 95dB @1W/1m (free field)
- Impedance: 16 Ohm
- SPL cont/peak: 116/122dB @1m (free field)
- Frequency response: 65-18000Hz (±3dB)
- Coverage angle HxV: 140x140°
- Cross over frequency: 2100Hz
- Protection: H.F. signal compression
- Suggest HPF range: 120/160Hz
- Recommended amplifier up to: 480W /16Ohm
INPUT/OUTPUT CONNECTORS
- Input signal: 4pole - terminal clamp IN/OUT
CABINET CONSTRUCTION
- Cabinet material: 12mm plywood
- Sospension system: wall brackets (included)
- Angle: 7.5° trapezoidal taper
FEATURES
- AES/program power: 240/480w
- SPL max: 122dB @1m (free field)
ARK206MP
Top Rated
MA605A
High-directivity active module for line-array, 1500W D-class amplifier, 2-way, 138dB SPL
Features:Low frequency: 2x10'' neodymium woofer/2.6''v.c.
High frequency: 1.4'' neodymium driver/3''v.c.
Frequency response: 65-18000 Hz (±3dB)
Coverage angle HxV: 80x10°
Hi-definition system for reproduction of voice and music in live and recorded performance
For sound installations in environments requiring dynamics and high sound pressure
Birch plywood enclosure
DSP with 4 presets ( 1-3/4-6 unit - full range/ high pass filter) for selection of optimal frequency response
LOUDSPEAKER
- System type: active 2 way
COMPONENTS
- Low frequency: 10'' neodymium woofer / 2.6'' v.c.
- High frequency: 1.4'' neodymium driver / 3'' v.c.
FEATURES
- Built-in amp LF/HF: 1500W
- SPL max: 138dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
- SPL cont/peak: 132/138dB @1m (free field)
- Frequency response: 65-18000Hz (±3dB)
- Coverage angle HxV: 80x10°
- Cross over frequency: 1100Hz
ELECTRONICS
- Amplifier: 1500 digital
- Input sensitivity: 4 dBu (1,228Vrms) adjustable
- Protection: RMS limiter, fast limiter, temp.
- User controls: 1-3/4-6 unit - full range/ high pass filter
- Processor: DSP
- Operating voltage/frequency:220 V ±10%, 50 Hz
INPUT/OUTPUT CONNECTORS
- Input signal: Neutrik XLR IN/OUT
- Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
- Cabinet material: 18mm birchplywood
- Sospension system: fixed angle bracket, M8 eyebolt, 35 mm pole mount
- Angle: 5° trapezoidal taper
- Handles: 2 on side
PHYSICAL
- Dimensions (WxHxD): 656x332x497mm
- Weight: 30kg
MA605A
MA615A
Wide-dispersion active module for line-array, 1500W D-class amplifier, 2-way, 137dB SP
Features:Low frequency: 2x10'' neodymium woofer/2.6''v.c.
High frequency: 1.4'' neodymium driver/3''v.c.
Frequency response: 65-18000 Hz (±3dB)
Coverage angle HxV: 100x30°
Hi-definition system for reproduction of voice and music in live and recorded performance
For sound installations in environments requiring dynamics and high sound pressure
Birch plywood enclosure
DSP with 4 presets ( 1-3/4-6 unit - full range/ high pass filter) for selection of optimal frequency response
LOUDSPEAKER
- System type: active 2 way
COMPONENTS
- Low frequency: 10'' neodymium woofer / 2.6'' v.c.
- High frequency: 1.4'' neodymium driver / 3'' v.c.
FEATURES
- Built-in amp LF/HF: 1500W
- SPL max: 137dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
- SPL cont/peak: 131/137dB @1m (free field)
- Frequency response: 65-18000Hz (±3dB)
- Coverage angle HxV: 100x30°
- Cross over frequency: 1100Hz
ELECTRONICS
- Amplifier: 1500 digital
- Input sensitivity: 4 dBu (1,228Vrms) adjustable
- Protection: RMS limiter, fast limiter, temp.
- User controls: 1-3/4-6 unit - full range/ high pass filter
- Processor: DSP
- Operating voltage/frequency: 220 V ±10%, 50 Hz
INPUT/OUTPUT CONNECTORS
- Input signal: Neutrik XLR IN/OUT
- Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
- Cabinet material: 18mm birchplywood
- Sospension system: fixed angle bracket, M8 eyebolt, 35 mm pole mount
- Angle: 15° trapezoidal taper
- Handles: 2 on side
PHYSICAL
- Dimensions (WxHxD): 656x364x497mm
- Weight: 30kg
MA615A
MA18SA
Aerodynamic bass-reflex active subwoofer, 3000W D-class amplifier,134dB SPL
Features:Low frequency: 18'' woofer/4.5''v.c.
Frequency response: 30-150 Hz (±3dB)
High pressure on low frequencies in large indoor/outdoor venues
Birch plywood enclosure
DSP with 4 presets (120/90Hz - normal/reverse phase) for selection of optimal frequency response
LOUDSPEAKER
- System type: active subwoofer
COMPONENTS
- Low frequency: 18'' woofer/4.5''v.c.
FEATURES
- Built-in amp: 3000W
- SPL max: 134dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
- SPL cont/peak: 128/134dB @1m (free field)
- Frequency response: 30-150Hz (±3dB)
- Coverage angle HxV: ° omnidirectional
ELECTRONICS
- Amplifier: digital
- Input sensitivity: 4 dBu (1,228Vrms) adjustable
- Protection: RMS limiter, fast limiter, temp.
- User controls: 120/90Hz - normal/reverse phase
- Processor: DSP
- Operating voltage/frequency: 220 V ±10%, 50 Hz
INPUT/OUTPUT CONNECTORS
- Input signal:XLR IN/OUT
- Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
- Cabinet material: 18mm birchplywood
- Handles: 4 on side
- Hardware: 35 mm mounting pole
PHYSICAL
- Dimensions (WxHxD): 615x685x636mm
- Weight: 53kg
MA18SA

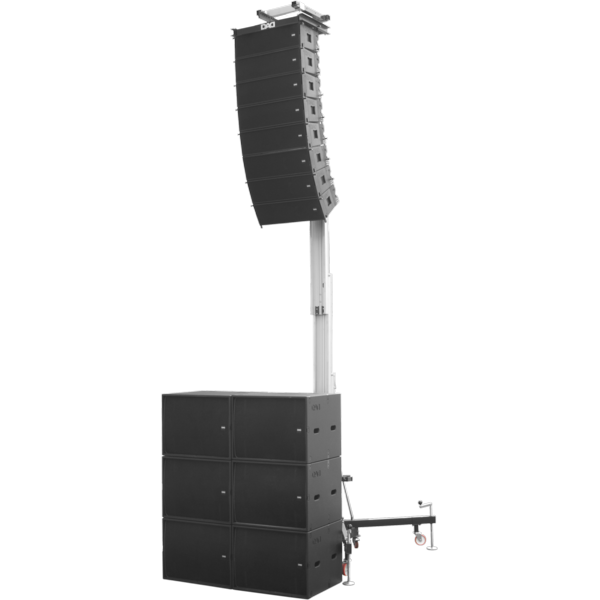

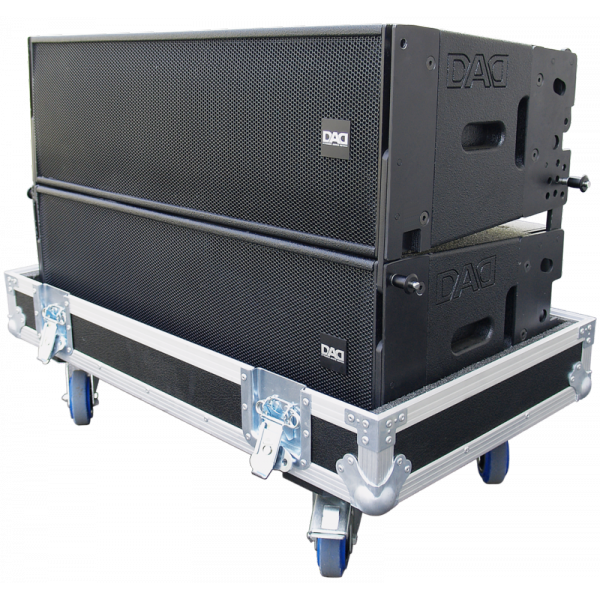

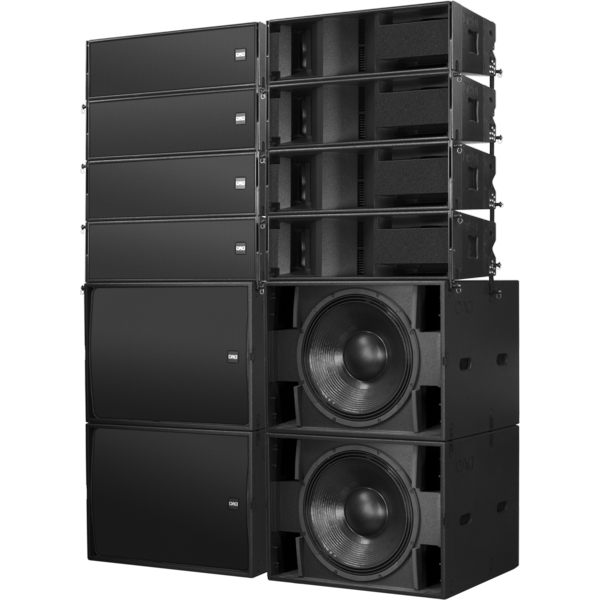

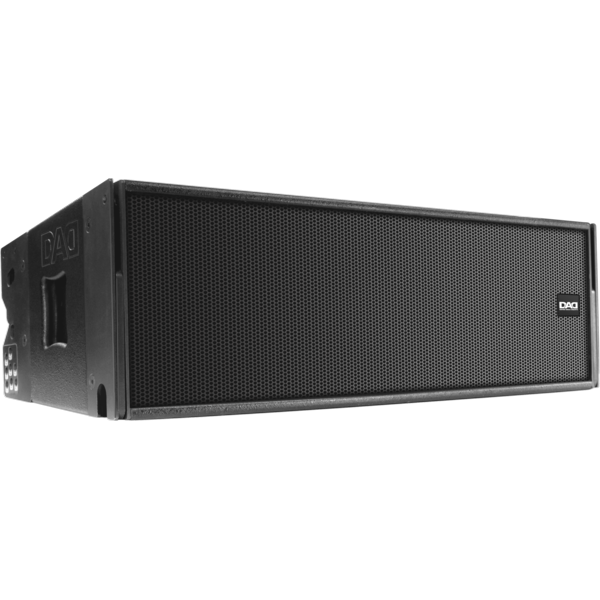

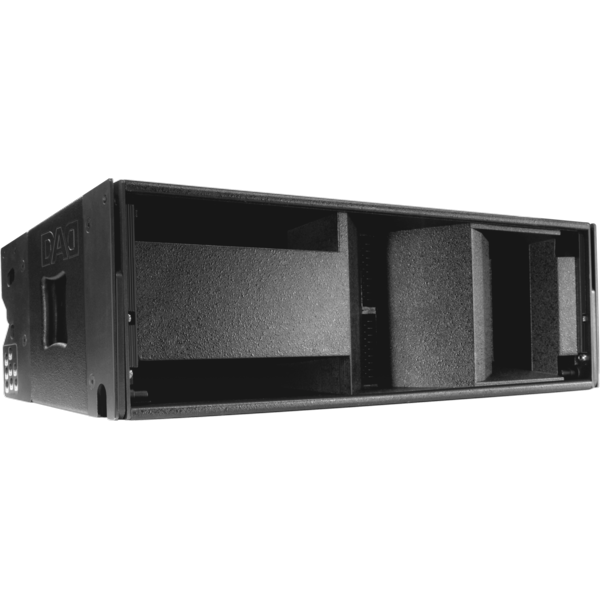

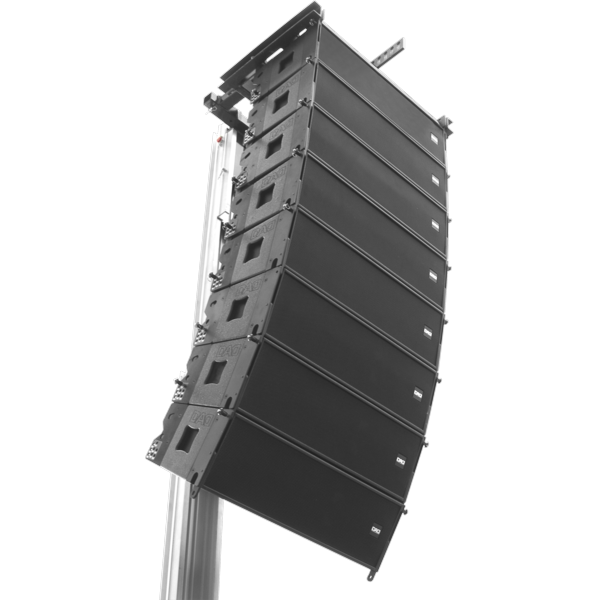

HDA800
Hi-performance compact module for line-array systems, "all loaded" configuration, bi/tri-amplifiable, 3-way 800W AES, 134dB SPL
Components:
Components:
- 12’’ Nd woofer, long excursion, 3’’ voice coil
- 8’’ Nd mid-woofer, 2’’ voice coil
- 2 Nd HF compression drivers with 1’’ throat, titanium diaphragm, 1.7’’ voice coil
- 80°x75° (HxV) constant-directivity waveguide
- Impedance: LF 8Ohm, MF 16Ohm, HF 16Ohm
- Recommended amplifiers: LF up to 1000W RMS/8Ohm, MF up to 400W RMS/16Ohm, HF uo tp 200W RMS/16Ohm
- Sensitivity (@1W/1m): LF 98dB, MF 101dB, HF 108dB
- Frequency response: 60-16000Hz (±3dB)
- Crossover frequency: 300/1800Hz
- External HPF recommended range: 80Hz to 100Hz
- Passive filter with HF driver protection
- EQ switch to select optimal setup of each module for short, medium and long-throw applications
- Trapezoidal profile with 7,5° enclosure angle
- 18mm multilayer birch plywood, hi-resistance scratch-proof finishing, black painting
- 12” Nd woofer in band-pass configuration, reducing module height to 10,3'' (262mm) only
- 8” Nd mid-woofer loaded by a double-slot waveguide with longitudinal phase plug
- Nd HF drivers loaded by waveguides designed for curvilinear line-array systems
- Built-in hardware for suspension, 1° steps for angle adjustment, safety-pins in steel
- 7:1 safety factor for mechanics
- Neutrik NL-8 Speakon in/out
- High directivity & efficiency PA system for indoor/outdoor events in large venues
- Sound reinforcement in live applications, theaters and permanent installations
- High quality vocal/music performance for live or recorded music
- Combined with DAD HD21SW subwoofers to extend performance in the low range
- Software for correct setup and aiming of HDA modules
| technical data | HDA800 |
| System type | "All-loaded" module, bi/tri-amp., 3-way |
| AES Power | LF 500W, MF 200W, HF 100W |
| Program Power | LF 1000W, MF 400W, HF 200W |
| Recommended amp (RMS) | LF up to 1000W 8Ohm, MF up to 400W 16Ohm, HF up to 200W 16Ohm |
| Horizontal Coverage angle | 80° (500–16000Hz) |
| Vertical Coverage angle | Variable (depending on system configuration) |
| Frequency response | 60–16000Hz (±3 dB) |
| Frequency range | 48–18000Hz (-10 dB) |
| Max SPL-Cont./Peak | 128/134dB (Free Field) |
| Transducers Section | |
| Low Section | 12” long-excursion Nd woofer / 3” coil |
| LF Loading | 7th-order bandpass |
| LF Impedance | 8Ohm |
| LF Bandpass Sensitivity | 98 dB @1W/1m (Free Field) |
| Mid Section | 8” Nd mid-woofer / 2” coil |
| MF Loading | Horn |
| MF Impedance | 16Ohm |
| MF Bandpass Sensitivity | 101dB @1W/1m (Free Field) |
| High Section | 2x1” Nd drivers / 1.7” coil |
| HF Loading | Horn |
| HF Impedance | 16Ohm |
| HF Bandpass Sensitivity | 108dB @1W/1m (Free Field) |
| Cabinet | |
| Trapezoidal taper | 7,5° |
| Suspension System | Proprietary built-in steel suspension system |
| Grille | Black steel grille, foam backed |
| Input Connectors | Neutrik NL8 Speakon in/out |
| Measures (WxHxD) | 832x400x262 mm |
| Weight | 37 Kg |
HDA800

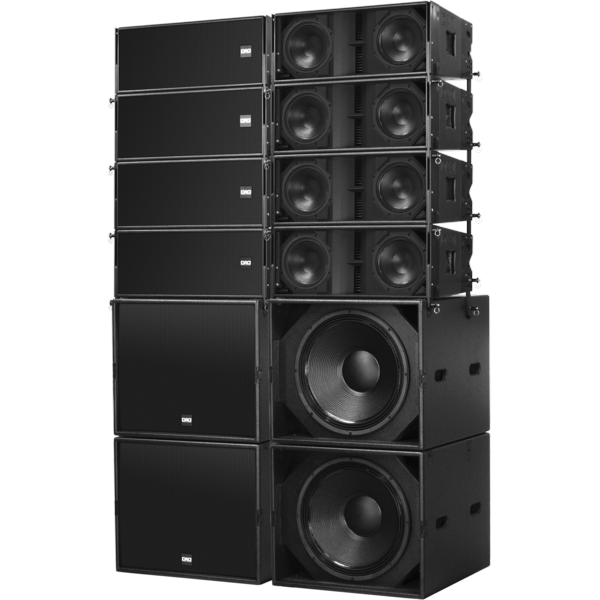

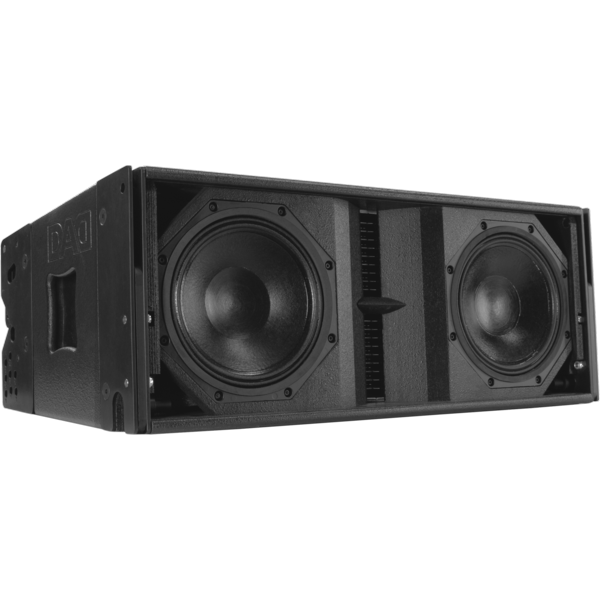

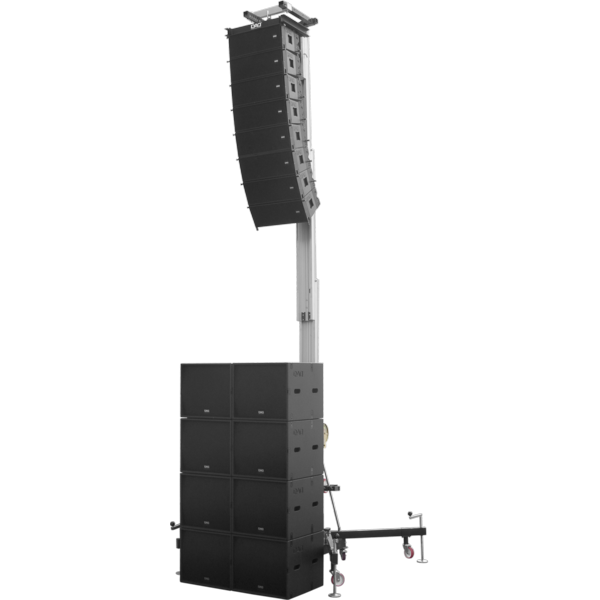

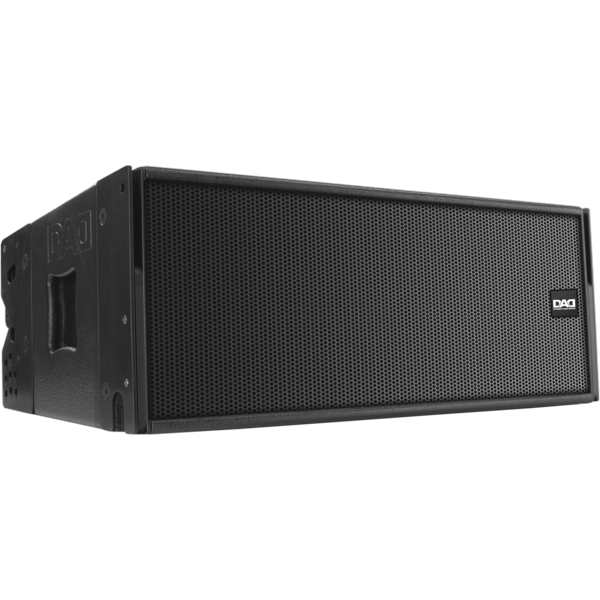

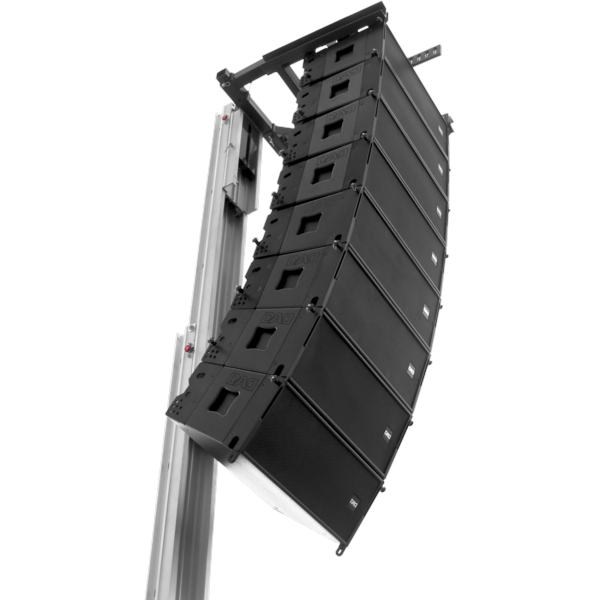

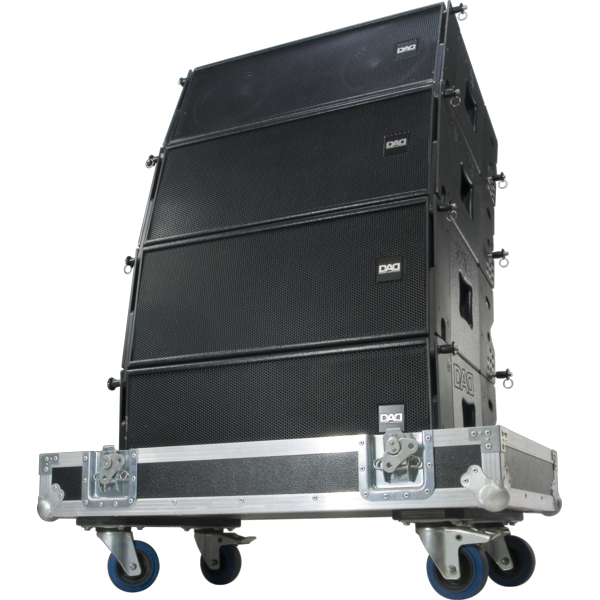

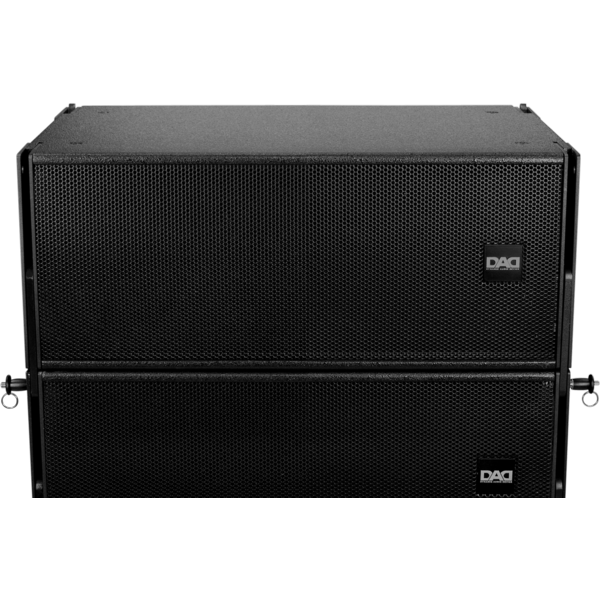

HDA500
Hi-performance compact module for line-array systems, bi-amplifiable, 3-way 500W AES, 134dB SPL
Components:
Components:
- 8'' Nd woofer, long-excursion, 2'' voice coil
- 8'' Nd mid-woofer, 2'' voice coil
- 2 Nd HF compression drivers with 1'' throat, titanium diaphragm, 3'' voice coil
- 100°x7.5° (HxV) constant-directivity waveguide
- Impedance: LF-MF 8Ohm, HF 16Ohm
- Recommended amplifier: LF-MF up to 1000W RMS/8Ohm, HF up to 200W RMS/16Ohm
- Sensitivity (@1W/1m): LF 98dB, HF 108dB
- Frequency response: 65-16000Hz (±3dB)
- Crossover frequency: 300/1800Hz
- External HPF recommended range: 80Hz to 100Hz
- Passive filter with HF driver protection
- EQ switch to select optimal setup of each module for short, medium and long-throw applications
- Trapezoidal profile with 7,5° enclosure angle
- 15mm multilayer birch plywood, hi-resistance scratch-proof finishing, black painting
- 8'' Nd woofers installed in separate chambers
- Nd HF drivers loaded by waveguides designed for curvilinear line-array systems
- Built-in hardware for suspension, 1° steps for angle adjustment, safety-pins in steel
- 7:1 safety factor for mechanics
- Neutrik NL-4 Speakon in/out
- High directivity & efficiency PA system for indoor/outdoor events in large venues
- Sound reinforcement in live applications, theaters and permanent installations
- Combined with DAD MA18SP subwoofers to extend performance in the low range
- Software for correct setup and aiming of HDA modules
| technical data | HDA500 |
| System type | Ultra-compact module, bi-amp., 3-way |
| AES Power | LF - MF 400W,HF 100W |
| Program Power | LF - MF 800W, HF 200W |
| Recommended amp (RMS) | LF - MF up to 800W 8Ohm, HF up to 200W 16Ohm |
| Horizontal Coverage angle | 100° (500–16000Hz) |
| Vertical Coverage angle | Variable (depending on system configuration) |
| Frequency response | 65–16000Hz (±3 dB) |
| Frequency range | 55–18000Hz (-10 dB) |
| Max SPL-Cont./Peak | 128/134dB (Free Field) |
| Transducers Section | |
| Low Section | 8” long-excursion Nd woofer / 2” coil |
| Mid Section | 8” Nd mid-woofer / 2” coil |
| LF - MF Loading | bass reflex |
| LF-MF Impedance | 8Ohm |
| LF -MF Bandpass Sensitivity | 98dB @1W/1m (Free Field) |
| High Section | 2x1” Nd drivers / 1.7” coil |
| HF Loading | Horn |
| HF Impedance | 16Ohm |
| HF Bandpass Sensitivity | 108dB @1W/1m (Free Field) |
| Cabinet | |
| Trapezoidal taper | 7,5° |
| Suspension System | Proprietary built-in steel suspension system |
| Grille | Black steel grille, foam backed |
| Input Connectors | Neutrik NL4 Speakon in/out |
| Measures (WxHxD) | 645x400x262 mm |
| Weight | 24 Kg |
HDA500
Top Rated

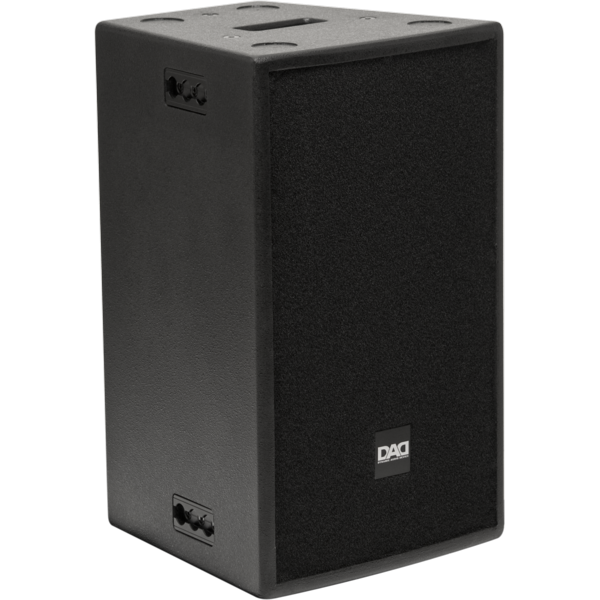

FUSION10A
Active loudspeakers, D+AB class bi-amp, 2-way 350W+70W, 124db SPL
Features:
Low frequency: 10'' woofer/2.6''v.c.
High frequency: 1'' driver/1.7''v.c.
Frequency response: 65-18000 Hz (±3dB)
User controls: mic, line, master, eq LF-HF
Reproduction of voice and music for live and recorded performances
Birch plywood enclosure
For sound installations in environments requiring dynamics and sound pressure
PHYSICAL
- Dimensions (WxHxD):304x495x300mm
- Weight:17kg
LOUDSPEAKERS
- System type: active 2 way
COMPONENTS
- Low frequency: 10'' woofer/2.6''v.c.
- High frequency: 1'' driver/1.7''v.c.
ACOUSTICAL SPECIFICATIONS
- SPL cont/peak: 118/124 dB @1m (free field)
- Frequency response: 65-18000Hz (±3dB)
- Coverage angle HxV: 90x70°
- Cross over frequency: 2000Hz
INPUT/OUTPUT CONNECTORS
- Input signal: XLR IN/OUT
- Power connection: VDE
ELECTRONICS
- Amplifier: digital + AB class
- Power: 350+70W /4/8Ohm
- Input sensitivity: 4 dBu (1,228Vrms) adjustable
- Protection: fast limiter, temp
- User controls: mic, line, master, eq LF-HF
- Processor:analog
- Operating voltage/frequency: 220 V~240 V/50 Hz
CABINET CONSTRUCTION
- Cabinet material:15mm birchplywood
- Sospension system: 6 point M8 eyebolt, fly track, 35 mm pole mount
- Angle: 10° trapezoidal taper
- Handles: 2 on side
FEATURES
- Built-in amp LF/HF: 350+70W
- SPL max: 124dB @1m (free field)
FUSION 10A

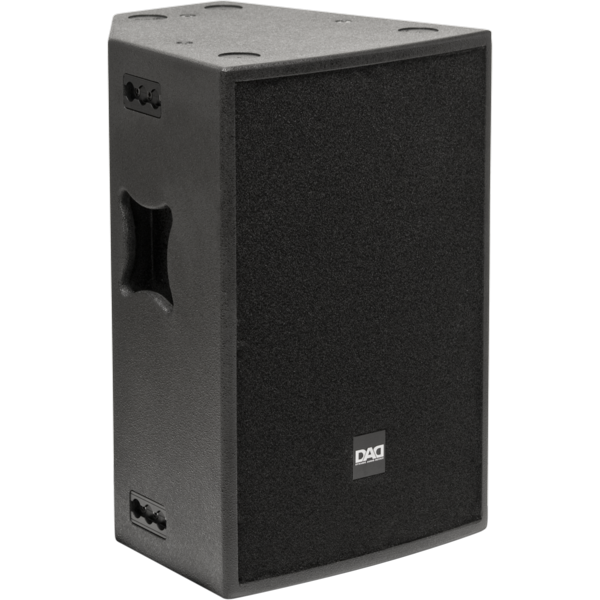

FUSION15A
Active loudspeakers, D+AB class bi-amp, 2-way 350W+70W,128db SPL
Features:
Low frequency: 15'' woofer/3''v.c.
High frequency: 1.4'' driver/3''v.c.
Frequency response: 45-18000 Hz (±3dB)
User controls: mic, line, master, eq LF-HF
Reproduction of voice and music for live and recorded performances
Birch plywood enclosure, designed for stage-monitor application
For sound installations in environments requiring dynamics and sound pressure
PHYSICAL
- Dimensions (WxHxD): 448x668x400 mm
- Weight: 32kg
LOUDSPEAKERS
- System type: active 2 way
COMPONENTS
- Low frequency: 15'' woofer/3''v.c.
- High frequency: 1.4'' driver/3''v.c.
ACOUSTICAL SPECIFICATIONS
- SPL cont/peak: 122/128 dB @1m (free field)
- Frequency response: 45-18000 Hz (±3dB)
- Coverage angle HxV: 90x40°
- Cross over frequency: 1500Hz
INPUT/OUTPUT CONNECTORS
- Input signal: XLR IN/OUT
- Power connection: VDE
ELECTRONICS
- Amplifier: digital + AB class
- Power: 350+70W /4/8Ohm
- Input sensitivity: 4 dBu (1,228Vrms) adjustable
- Protection: fast limiter, temp
- User controls: mic, line, master, eq LF-HF
- Processor: analog
- Operating voltage/frequency: 220 V~240 V/50 Hz
CABINET CONSTRUCTION
- Cabinet material: 18mm birchplywood
- Sospension system: 6 point M8 eyebolt, fly track, 35 mm pole mount
- Angle: 10 - 40° monitor applications
- Handles: 2 on sideFEATURES
- Built-in amp LF/HF: 350+70W
- SPL max: 128dB@1m (free field)
FUSION 15A
FUSION12MA
Active stage-monitor, coaxial design, D+AB class bi-amp. 2-way 350+70W, 128db SPL
Features:
Low frequency: 12'' woofer/2.6''v.c.
High frequency: 1'' driver/1.3''v.c.
Frequency response: 60-18000 Hz (±3dB)
User controls: mic, line, master, eq LF-HF
Reproduction in the monitoring of voice and music for live and recorded performances
Birch plywood enclosure
For sound installations in environments requiring dynamics and high sound pressure
PHYSICAL
- Dimensions (WxHxD):502x370x440mm
- Weight:20kg
LOUDSPEAKERS
- System type:active stage monitor, coaxial design
COMPONENTS
- Low frequency: 12'' woofer/2.6''v.c.
- High frequency: 1'' driver/1.3''v.c.
ACOUSTICAL SPECIFICATIONS
- SPL cont/peak: 121/127dB @1m (free field)
- Frequency response: 60-18000Hz (±3dB)
- Coverage angle HxV: 80x80°
- Cross over frequency: 2000Hz
INPUT/OUTPUT CONNECTORS
- Input signal: XLR IN/OUT
- Power connection: VDE
ELECTRONICS
- Amplifier: digital + AB class
- Power: 350+70W /4/8Ohm
- Input sensitivity: 4 dBu (1,228Vrms) adjustable
- Protection: fast limiter, temp
- User controls: mic, line, master, eq LF-HF
- Processor: analog
- Operating voltage/frequency: 220 V~240 V/50 Hz
CABINET CONSTRUCTION
- Cabinet material: 15mm birchplywood
- Sospension system: 6 point M8 eyebolt, fly track, 35 mm pole mount
- Angle:40° monitor applications
- Handles: 2 on side
FEATURES
- Built-in amp LF/HF: 350+70W
- SPL max: 127dB@1m (free field)
FUSION12MA
FUSION10P
2-way passive loudspeakers, 250W AES, 124db SPL
Features:
Low frequency: 10'' woofer/2.6''v.c.
High frequency: 1'' driver/1.7''v.c.
Frequency response: 70-18000 Hz (±3dB)
Reproduction of voice and music for live and recorded performances
Birch plywood enclosure
For sound installations in environments requiring dynamics and sound pressure
PHYSICAL
- Dimensions (WxHxD): 304x495x300mm
- Weight: 15kg
LOUDSPEAKERS
- System type: passive 2 way
COMPONENTS
- Low frequency: 10'' woofer/2.6''v.c.
- High frequency: 1'' driver/1.7''v.c.
ACOUSTICAL SPECIFICATIONS
- Sensitivity: 94dB @1W/1m (free field)
- SPL cont/peak: 118/124dB @1m (free field)
- Frequency response: 70-18000Hz (±3dB)
- Coverage angle HxV: 90x70°
- Cross over frequency: 2000Hz
- Protection: H.F. signal compression
- Recommended amplifier up to: 500W /8Ohm
INPUT/OUTPUT CONNECTORS
- Input signal: 4pole IN/OUT
CABINET CONSTRUCTION
- Cabinet material: 15mm birchplywood
- Sospension system: 6 point M8 eyebolt, fly track, 35 mm pole mount
- Angle: 10° trapezoidal taper
- Handles: 2 on side
FEATURES
- AES/program power: 250/500W
- SPL max: 124dB @1m (free field)
FUSION10P
FUSION12P
2-way passive loudspeakers, 300W AES, 129db SPL
Features:
Low frequency: 12'' woofer/3''v.c.
High frequency: 1'' driver/1.7''v.c.
Frequency response: 65-18000 Hz (±3dB)
Reproduction of voice and music for live and recorded performances
Birch plywood enclosure, designed for stage-monitor application
For sound installations in environments requiring dynamics and sound pressure
PHYSICAL
- Dimensions (WxHxD): 361x530x367mm
- Weight: 23kg
LOUDSPEAKERS
- System type: passive 2 way
COMPONENTS
- Low frequency: 12'' woofer/3''v.c.
- High frequency: 1'' driver/1.7''v.c.
ACOUSTICAL SPECIFICATIONS
- Sensitivity: 98dB @1W/1m (free field)
- SPL cont/peak: 123/129dB @1m (free field)
- Frequency response: 65-18000Hz (±3dB)
- Coverage angle HxV: 90x70°
- Cross over frequency: 1700Hz
- Protection: H.F. signal compression
- Recommended amplifier up to: 600W /8Ohm
INPUT/OUTPUT CONNECTORS
- Input signal: 4pole IN/OUT
CABINET CONSTRUCTION
- Cabinet material: 15mm birchplywood
- Sospension system: 6 point M8 eyebolt, fly track, 35 mm pole mount
- Angle: 10 - 40° monitor applications
- Handles: 2 on side
FEATURES
- AES/program power: 300/600W
- SPL max: 129dB @1m (free field)
FUSION12P
Top Rated
LIVE 8A
Active loudspeaker, AB-class bi-amp, 2-way 100W+50W, 117dB SPL
Features:
Low frequency:8 '' woofer/2''v.c.
High frequency:1 '' driver/1.3''v.c.
Frequency response:70-18000 Hz (±3dB)
Reproduction of voice and music for live and recorded performances
Polypropylene enclosure, designed for stage-monitor application
For indoor/outdoor sound installations where quality and sound pressure are required
For portable PA systems, mobile DJ sets and voice/multimedia applications
PHYSICAL
- Dimensions (WxHxD):255x435x245mm
- Weight:9.5kg
LOUDSPEAKERS
- System type: active 2 way
COMPONENTS
- Low frequency: 8'' woofer/2''v.c.
- High frequency: 1'' driver/1.3''v.c.
ACOUSTICAL SPECIFICATIONS
- SPL cont/peak: 111/117dB @1m (free field)
- Frequency response: 70-18000 Hz (±3dB)
- Coverage angle HxV: 80x60°
- Cross over frequency: 3500Hz
INPUT/OUTPUT CONNECTORS
- Input signal: XLR IN/OUT, jack 6.35 mm
- Power connection: VDE
ELECTRONICS
- Amplifier: AB class
- Power: 100+50W /4/8Ohm
- Input sensitivity: -2 dBu (0,6Vrms) adjustable
- Protection: limiter temp.
- User controls: mic, line
- Processor: analog
- Operating voltage/frequency: 100~120V/220~240V 60Hz/50Hz
CABINET CONSTRUCTION
- Cabinet material: 4mm polypropilene
- Sospension system: eyebolt, 35 mm pole mount
- Angle:60° monitor applications
FEATURES
- Built-in amp LF/HF: 100+50W /4/8Ohm
- SPL max: 117dB @1m (free field)
LIVE 8A

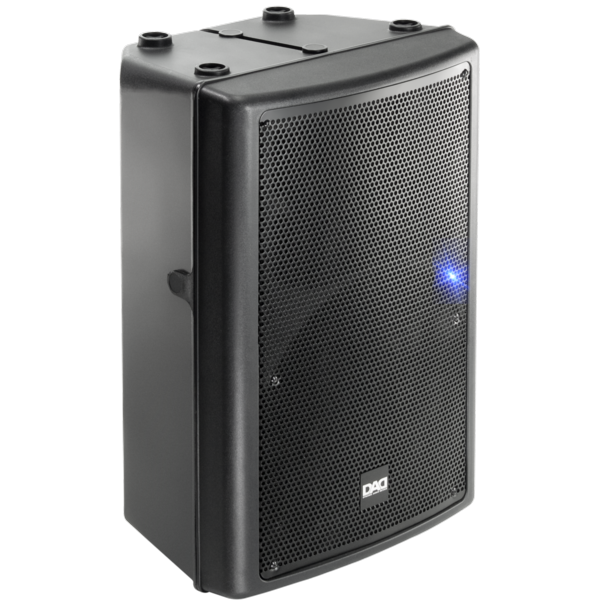

LIVE10A
Active loudspeaker, AB-class bi-amp, 2-way 250W+50W, 122dB SPL
Features:
Low frequency:10 '' woofer/2.6''v.c.
High frequency:1 '' driver/1.3''v.c.
Frequency response:65-18000 Hz (±3dB)
Reproduction of voice and music for live and recorded performances
Polypropylene enclosure, designed for stage-monitor application
For indoor/outdoor sound installations where quality and sound pressure are required
For portable PA systems, mobile DJ sets and voice/multimedia applications
PHYSICAL
- Dimensions (WxHxD):330x557x313mm
- Weight:20.5kg
LOUDSPEAKERS
- System type: active 2 way
COMPONENTS
- Low frequency: 10'' woofer/2.6''v.c.
- High frequency: 1'' driver/1.3''v.c.
ACOUSTICAL SPECIFICATIONS
- SPL cont/peak: 116/122dB @1m (free field)
- Frequency response: 65-18000Hz (±3dB)
- Coverage angle HxV: 80x60°
- Cross over frequency: 2500Hz
INPUT/OUTPUT CONNECTORS
- Input signal: XLR IN/OUT, jack 6.35 mm
- Power connection: VDE
ELECTRONICS
- Amplifier: AB class
- Power: 250+50W /4/8Ohm
- Input sensitivity: -2 dBu (0,6Vrms) adjustable
- Protection: limiter temp.
- User controls: mic, line
- Processor: analog
- Operating voltage/frequency:100~120V/220~240V 60Hz/50Hz
CABINET CONSTRUCTION
- Cabinet material: 4mm polypropilene
- Sospension system: eyebolt, 35 mm pole mount
- Angle: 60° monitor applications
- Handles: 1 on side
FEATURES
- Built-in amp LF/HF: 250+50W /4/8Ohm
- SPL max: 122dB @1m (free field)
LIVE 10A
LIVE12A
Active loudspeaker, AB-class bi-amp, 2-way 330W+70W, 124dB SPL
Features:
Low frequency:12 '' woofer/3''v.c.
High frequency:1 '' driver/1.7''v.c.
Frequency response:50-18000 Hz (±3dB)
Reproduction of voice and music for live and recorded performances
Polypropylene enclosure, designed for stage-monitor application
For indoor/outdoor sound installations where quality and sound pressure are required
For portable PA systems, mobile DJ sets and voice/multimedia applications
PHYSICAL
- Dimensions (WxHxD):416x615x356mm
- Weight: 25.5 kg
LOUDSPEAKERS
- System type: active 2 way
COMPONENTS
- Low frequency: 12'' woofer/3''v.c.
- High frequency: 1'' driver/1.7''v.c.
ACOUSTICAL SPECIFICATIONS
- SPL cont/peak: 122/128dB @1m (free field)
- Frequency response: 50-18000Hz (±3dB)
- Coverage angle HxV:80x60°
- Cross over frequency: 2200Hz
INPUT/OUTPUT CONNECTORS
- Input signal: XLR IN/OUT, jack 6.35 mm
- Power connection: VDE
ELECTRONICS
CABINET CONSTRUCTION
- Amplifier: AB class
- Power: 330+70W /4/8Ohm
- Input sensitivity: -2 dBu (0,6Vrms) adjustable
- Protection: limiter temp.
- User controls: mic, line, master, eq LF-HF
- Processor:analog
- Operating voltage/frequency: 100~120V/220~240V 60Hz/50Hz
CABINET CONSTRUCTION
- Cabinet material: 4mm polypropilene
- Sospension system: eyebolt, 35 mm pole mount
- Angle: 45° monitor applications
- Handles: 1 on side
FEATURES
- Built-in amp LF/HF: 330+70 W /4/8Ohm
- SPL max: 128dB @1m (free field)
LIVE 12A
LIVE15A
Active loudspeaker, AB-class bi-amp, 2-way 380W+70W, 124dB SPL
Features:
Low frequency:15 '' woofer/3''v.c.
High frequency:1 '' driver/1.7''v.c.
Frequency response:45-18000 Hz (±3dB)
Reproduction of voice and music for live and recorded performances
Polypropylene enclosure, designed for stage-monitor application
For indoor/outdoor sound installations where quality and sound pressure are required
For portable PA systems, mobile DJ sets and voice/multimedia applications
PHYSICAL
- Dimensions (WxHxD): 475x740x400 mm
- Weight: 30 kg
LOUDSPEAKERS
- System type: active 2 way
COMPONENTS
- Low frequency: 15'' woofer/3''v.c.
- High frequency: 1'' driver/1.7''v.c.
ACOUSTICAL SPECIFICATIONS
- SPL cont/peak: 122/128dB @1m (free field)
- Frequency response: 45-18000 Hz (±3dB)
- Coverage angle HxV: 80x60°
- Cross over frequency: 2600Hz
INPUT/OUTPUT CONNECTORS
- Input signal: XLR IN/OUT, jack 6.35 mm
- Power connection: VDE
ELECTRONICS
- Amplifier:AB class
- Power:380+70W /4/8Ohm
- Input sensitivity: -2 dBu (0,6Vrms) adjustable
- Protection: limiter temp.
- User controls: mic, line, master, eq LF-HF
- Processor: analog
- Operating voltage/frequency: 100~120V/220~240V 60Hz/50Hz
CABINET CONSTRUCTION
- Cabinet material: 4 mm polypropilene
- Sospension system: eyebolt, 35 mm pole mount
- Angle: 45° monitor applications
- Handles: 2 on side
FEATURES
- Built-in amp LF/HF: 380+70 W /4/8Ohm
- SPL max: 128 dB @1m (free field)
LIVE 15A
