    MOVING LIGHTS

    RA3000PROFILE

    RA3000PROFILE combines solid-state technology in every single detail and it has been specifically engineered to be not only a high-quality bright light but also silent. RA3000PROFILE is able to provide a real 25’000 lumen output with unprecedented beam evenness.

    The 6000K LED engine has been custom designed to make the RA3000PROFILE hit a CRI of 90, TLCI of 92, high R9 and TM30 making all skin tones and colours come to life on stage or in front of a camera.

    The RA3000PROFILE’s CMY system delivers beautiful pastels, stunning saturated colours, powerful primaries, one colour wheel provides split colours, and linear CTO allows the RA3000PROFILE to blend in with traditional sources.

    Packed with a full feature set, composed of a gobo wheel, animation wheel, iris, prism and dual linear frost.

    High-precision 4 blade shuttering system can be overlaid to provide endless combinations. The 19 element optics of the RA3000PROFILE are precision engineered for a perfect zoom, ideal edges and maximum efficiency.

    The RA3000PROFILE is silent, bright, flexible and precise.


    Features:
    1000W LED engine with 6000K CT featuring high CRI, TLCI, R9 and TM30
    25'000 lumen fixture output with flat-field projection
    Silent

    LIGHT SOURCE
    • Source:1000W white LED
    • CT: 6000K
    • CRI:>90
    • R9:75
    • Luminous flux:25'000lm
    • Lux:(50°) 1830 lux (6°) 83500lux@5m
    • Source life expectancy: >50.000 h
    • Other:TLCI: 92; TM30-15RF:88; TM30RG:99


    OPTICS
    • Zoom:6-50° motorised linear zoom
    • Lens diameter: 180 mm

    COLOUR SYSTEM
    • Colour mixing: linear CMY
    • CTC: linear CTO correction 3000~6000K
    • Colour wheel: 6 dichroic filters + open
    DYNAMIC EFFECTS
    • Shutter system:4 single blades: +/- 35°, complete system: +/- 45°
    • Animation wheel: animation wheel with CW and CCW rotation
    • Rotating gobos: 6 rotating gobos + open, interchangeable, indexing
    • Gobo size: Outer diameter: 31,9mm, Gobo diameter: 27mm
    • Circular prism: 4f with bi-directional rotation, indexing
    • Frost: Dual frost filter system, 1° soft-edge frost gobo, 5° frost wash, with
      linear 0-100% frost filter
    • Iris: 5-100%  motorised linear iris
    BODY
    • Pan angle:540°

      Tilt angle:270°

    • Pan/Tilt resolution: bit 8/16 bit
    • Feedback: automatic repositioning after accidental movement
    • Body: Flame-retardant PC
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM, Art-Net,W-DMX
    • DMX channels: 38 / 39 / 40 / 41
      channel

    • W-DMX: included, wireless solution receiver
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: black OLED high resolution display
    • Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer: linear 0~100% electronic dimmer
    • Strobe / shutter: 0-30Hz, electronic
    • Battery backup: battery backup for user operation without connecting to the main power
    • Operating temperature: -10° ~ +45°
    • Flicker: flicker free operation
    ELECTRICAL
    • Power supply:  100-240V – 50/60Hz
    • Power consumption (at 230V): 1288W

    • Power consumption (at 120V): 1371W

    • Power factor: (120W)1.0 - (230W) 0.97


    PHYSICAL
    • Cooling: combination of heat pipe cooling system and low noise fan
    • Sospension and fixing: Fast quick lock Omega bracket


    • Pan / tilt lock:  pan / tilt locking for transportation and maintenance
    • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
    • Data connection: Art-Net RJ45 IN/OUT
    • Power connection: Neutrik powerCON TRUE1 IN connector
    • IP rating: 20


    • Dimensions (WxHxD): 534x914x402 mm

    • Weight: 57kg







    RA3000PROFILE
    1.000W high-precision LED moving profile light


    ARIA700

    ARIA700 is a 400W theatrical LED light designed to bring refinement and silence to the stage. Featuring a custom RGBW engine which delivers an extensive colour palette and an optical system designed to allow the layering of effects. The ARIA700 puts the theatre into LED.


    Features:
    Full spectrum RGBW LED engine for extensive pastel colour palette and HD dimming
    A near-silent operation for use even in front of house
    Animation wheel and full-framing shutters with individual depth and angle control of each blade as well as module index

    LIGHT SOURCE
    • Source:400Wcustom RGBW LED
    • CT:Tunable 2700K~8000K
    • Luminous flux:6153lm

    • Lux:(10°) 22361 - (45°) 2166lux@3m full
    • Lux:(10°) 8050 - (45°) 780lux@5m full
    • Source life expectancy:>50.000 h
    OPTICS
    • Zoom:10-45°motorised linear zoom
    • Lens type:HD anti-reflection lenses with achromatic coating
    • Focus:motorised with auto-focus
    • Other:High-quality flat-field projection


    COLOUR SYSTEM
    • Colour mixing:RGBW/FC
    • CTC:CTC control through independent DMX channel
    • White presets:2000K ~ 8000K
    • Colour wheel:virtual colour wheel with presets
    DYNAMIC EFFECTS
    • Shutter system:4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
    • Animation wheel:animation wheel with CW and CCW rotation
    • Rotating gobos:7rotating gobos + open, interchangeable, indexing
    • Gobo size:gobo Ø 27 mm - img Ø 21 mm - 1.1 mm
    • FX generator:shutter macros with adjustable speed
    • Circular prism:3fwith bi-directional rotation, indexing
    • Frost:linear 0-100% frost filter
    • Iris:5-100%motorised linear iris
    BODY
    • Pan angle:540°

    • Tilt angle:270°

    • Pan/Tilt resolution:bit16 bit
    • Feedback:automatic repositioning after accidental movement
    • Body:aluminium structure with hi-resistance polycarbonate cover
    • Body colour:black
    CONTROL
    • Protocols:DMX512, RDM, Art-Net,W-DMX
    • DMX channels:33 / 38 / 39channel
    • W-DMX:included, wireless solution receiver
    • RDM: RDM ready for fixture remote monitor and settings
    • Display:LCD high resolution colour display with autoflip
    • Firmware upgrade:yes, via USB-DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer:linear 0~100% electronic dimmer
    • Dimmer curves:4different dimming curves available
    • Strobe / shutter:1-28Hz, electronic
    • Operating temperature:-10° ~ +45°
    • Flicker:flicker free operation
    ELECTRICAL
    • Power supply:100-240V – 50/60Hz
    • Power consumption (at 230V):463W

    • Power consumption (at 120V):467W

    • Output (at 230V):8units on a single power line
    • Output (at 120V):4units on a single power line
    PHYSICAL
    • Cooling:combination of heat pipe cooling system and low noise fan
    • Sospension and fixing:any position with quick-lock omega brackets
    • Pan / tilt lock:pan / tilt locking for transportation and maintenance
    • Signal connection:Amphenol XLR 5p IN/OUT connectors
    • Data connection:Art-NetRJ45 IN/OUT
    • Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
    • IP rating:20
    • Dimensions (WxHxD):408x526x474mm
    • Weight:26kg









    ARIA700PROFILE
     400W RGBW theatrical LED profile light

     AIR5FAN



    CATALOGUE

    AIR5FAN is a pixel-FX moving head, able to control the spread of its pixels through the motorised lens system, passing from a sharp linear beam effect to a multi-ray effect. Powered by 5x40W RGBW/FC LEDs, with a 2° beam each, delivering stunning brightness for large setups and featuring infinite rotation over pan and tilt. Last but not least, AIR5FAN allows for the mounting of a mirror on its housing allowing for an added effect as moving projecting surface bouncing beams from other light sources.


    Features:
    5x40W RGBW Osram LED with 2° beam angle
    Motorised pivot lenses from linear beam to multi-ray effect
    Mountable mirror on the housing featuring as a moving mirror
    Infinite pan and tilt rotation

    LIGHT SOURCE
    • Source: 5x40W RGBW Osram Ostar LEDs
    • Lux: 27211 lux @3m
    • Source life expectancy: >50.000 h
    OPTICS
    • Beam angle:2°

    • Lens diameter:68mm

    • Lens type: high-quality glass lens optics
    COLOUR SYSTEM
    • Colour mixing: RGBW/FC
    • CTC: CTC control through independent DMX channel
    • White presets: 2700-10000 K
    • Colour wheel: virtual colour wheel with presets
    DYNAMIC EFFECTS
    • Pixel patterns: pre-programmed dynamic and static patterns
    • FX generator:  adjustable foreground/background colour, index, speed, direction
    • Special features: Head pivot control, mirror reflecting beams


    BODY
    • Hardware on-board: Mountable mirror through quick-lock screws
    • Pan angle: 540/630° with 360° continuous rotation
    • Tilt angle: 360° with 360° continuous rotation
    • Pan/Tilt resolution: 16bit
    • Feedback: automatic repositioning after accidental movement
    • Body:  aluminium structure with hi-resistance polycarbonate cover
    • Body colour: black
    • Other: Pivot angle: 0-28°


    CONTROL
    • Protocols: DMX512, RDM, Art-Net
    • DMX channels: 17 / 27 / 43 channel
    • Pixel control: pixel2pixel control
    • W-DMX: optional, wireless solution receiver
    • RDM: RDM ready for fixture remote monitor and setting
    • Display:  LCD high resolution colour display with autoflip
    • Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included
    • Hibernation: power safe mode when lost DMx
    • Master/Slave: for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer: linear 0~100% electronic dimmer
    • Strobe / shutter: 1-30 Hz, electronic
    • Battery backup: battery backup for user operation without connecting to the main power
    • Operating temperature: -10° ~ +45°
    • Flicker: flicker free operation
    ELECTRICAL
    • Power supply: 100-240V – 50/60Hz
    • Power consumption (at 230V): 208W
    • Power consumption (at 120V): 218W

    PHYSICAL
    • Cooling: Aluminium heat sink cooling system and low noise fan


    • Sospension and fixing: any position with quick-lock omega brackets
    • Pan / tilt lock: Pivot lock for trasportation and maintenance
    • Signal connection: Amphenol XLR 5p IN/OUT connectors
    • Data connection:  Art-Net RJ45 IN/OUT
    • Power connection: Neutrik powerCON TRUE1 IN connector
    • IP rating: 20
    • Dimensions (WxHxD): 558x474x242mm
    • Weight: 16kg





    AIR5FAN
     5x40W moving head linear, pivot, mirror and pixel effect

    STARK1000



    STARK1000 is a new generation, high output, LED wash light designed to bring the workhorse LED wash light up-to-date. Featuring 19 of Osrams new 40W RGBW Ostar LEDs it delivers massive output with a huge colour range and an extensive toolkit of effects.


    Features:
    19 LED RGBW/FC Osram 40W
    Massive 4° to 45° linear zoom range from beam to wash
    Individual control of calibrated pixels with on-board FX generator for fast and precise effects
    Liquid cooling system for efficient cooling with virtually no noise

    LIGHT SOURCE
    • Source:1 9x40W RGBW Osram Ostar LEDs
    • CT: Tunable 2000K~10000K
    • Lux: (4°) 99943lux @3m full
    • Lux: (4°) 35979lux @5m full
    • Source life expectancy: >50.000 h
    OPTICS
    • Zoom: 4° - 45° motorised linear zoom
    • Lens diameter: 275mm
    • Lens type: high-quality glass lens optics
    COLOUR SYSTEM
    • Colour mixing: RGBW/FC
    • CTC: CTC control through independent DMX channel
    • White presets: 2000~10000K
    • Colour wheel: virtual colour wheel with presets
    • Macros: several pre-build pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Pixel patterns: pre-programmed dynamic and static patterns
    • FX generator: adjustable foreground/background colour, index, speed, direction
    BODY
    • Pan angle: 540/630°
    • Tilt angle: 233°
    • Pan/Tilt resolution: bit 16 bit
    • Feedback: automatic repositioning after accidental movement
    • Body: aluminium structure with hi-resistance polycarbonate cover
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM, Art-Net,W-DMX
    • DMX channels: 16 / 26 / 27 / 98 channel
    • Pixel control: pixel2pixel control
    • W-DMX: included, wireless solution receiver
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: LCD high resolution colour display with autoflip
    • Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included
    • Hibernation: power safe mode when lost DMX
    • Master/Slave: for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer: linear 0~100% electronic dimmer
    • Dimmer curves: different dimming curves available
    • Strobe / shutter: 1-30 Hz, electronic
    • Battery backup: battery backup for user operation without connecting to the main power
    • Operating temperature: -10° ~ +45°
    • Flicker: flicker free operation
    ELECTRICAL
    • Power supply: 100-240V – 50/60Hz
    • Power consumption (at 230V): 615W
    • Power consumption (at 120V): 615W

    PHYSICAL
    • Cooling: combination of heat pipe cooling system and low noise fan
    • Sospension and fixing: any position with quick-lock omega brackets
    • Pan / tilt lock: pan / tilt locking for transportation and maintenance
    • Signal connection: Amphenol XLR 5p IN/OUT connectors
    • Data connection: Art-Net RJ45 IN/OUT
    • Power connection: Neutrik powerCON TRUE1 IN connector
    • IP rating: 20
    • Dimensions (WxHxD): 430.5x563.1x247mm
    • Weight: 18kg
    STARK1000
     19x40 W high power LED wash/beam light with pixel mapping
    PANORAMAIPSPOT
       IP65

    Immagine Principale




    PANORAMAIPSPOT is a powerful and flexible IP rated moving LED spot designed to deliver a stunning brightness level all packaged in a compact housing. Equipped with a 1:10 zoom and a complete feature set, the PANORAMAIPSPOT really stands out in any environment be it festivals, arenas or large outdoor events.

    Features:
    420W high power LED with 7000K CT, and 5°-50° linear zoom
    IP rated for outdoor events and temporary installations
    Extensive range of effects including linear CMY and CTO mixing, colour wheel, rotating gobo wheel, static gobo wheel, circular prisms, linear frost and focus

    LIGHT SOURCE
    • Source: 420W high-power white LED
    • CT: 7000K
    • Lux: (5°) 21362lux @5m
    • Lux: (50°) 1173lux @5m full
    • Source life expectancy: >20.000 h
    OPTICS
    • Zoom: 5°-50° motorised linear zoom
    • Lens diameter: 120mm
    • Lens type: HD anti-reflection lenses with achromatic coating
    • Focus: motorised with auto-focus
    COLOUR SYSTEM
    • Colour mixing: linear CMY
    • CTC: linear CTO correction 2700~6000K
    • Colour wheel: 8 dichroic filters + open
    DYNAMIC EFFECTS
    • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
    • Gobo size: gobo Ø 27 mm - img Ø 21 mm - 1.1 mm
    • Fixed gobos: 6 fixed gobos + open, interchangeable
    • Gobo size: gobo Ø 27 mm - img vØ 21 mm - 1.1 mm
    • Circular prism: 3f with bi-directional rotation, indexing
    • Frost: linear 0-100% frost filter
    • Iris: 5-100% motorised linear iris
    BODY
    • Pan angle: 540-630°
    • Tilt angle: 233°
    • Pan/Tilt resolution: bit 8/16 bit
    • Feedback: automatic repositioning after accidental movement
    • Body: aluminium structure with hi-resistance polycarbonate cover
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM, Art-Net,W-DMX
    • DMX channels: 19 / 21 / 28 / 29 / 36 channel
    • W-DMX: included, wireless solution receiver
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: LCD high resolution colour display
    • Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included
    • Hibernation: power safe mode when lost DMX
    ELECTRONICS
    • Dimmer: linear 0~100% electronic dimmer
    • Strobe / shutter: 1-28 Hz, electronic
    • Battery backup: battery backup for user operation without connecting to the main power
    • Operating temperature: -20° ~ +45°
    ELECTRICAL
    • Power supply:  100-240V – 50/60Hz
    • Power consumption (at 230V): 492W
    • Power consumption (at 120V): 501W

    PHYSICAL
    • Cooling: combination of heat pipe cooling system and low noise fan
    • Sospension and fixing: any position with quick-lock omega brackets
    • Pan / tilt lock: pan / tilt locking for transportation and maintenance
    • Signal connection: Amphenol XLR 5p IN/OUT connectors
    • Data connection: Art-Net RJ45 IN/OUT
    • Power connection: Seetronic powerCON waterproof IN/OUT connectors
    • IP rating: 65 for temporary outdoor application, not for fixed installation
    • Dimensions (WxHxD): 420x740x474mm
    • Weight: 38kg
    PANORAMAIPSPOT
     420 W IP rated moving LED spot with zoom and colour mixing







    Immagine Principale




    The RA2000PROFILE has been designed in response to feedback from global users and by lighting designers. A universal moving profile/spot that lighting designers and users can use for theatrical, touring and TV productions. Powerful but silent, compact but fully equipped with both framing shutters and animation wheel, all whilst delivering a superior light quality, the RA2000PROFILE is an indispensable tool for any show.

    The 6000K LED engine has been custom engineered to make the RA2000PROFILE hit a 13.000-lumen output, keeping a native CRI of 94, TLCI of 92, high R9 and TM30 making all skin tones and colours come to life on stage or in front of a camera.

    The RA2000PROFILE’s CMY system delivers beautiful pastels, stunning saturated colours, powerful primaries, one colour wheel provides split colours, and linear CTO allows the RA2000PROFILE to blend in with traditional sources.

    Packed with a full feature set composed of a gobo wheel, adjustable framing shutters, animation wheel, iris, prism and dual linear frost. The highly efficient optical system delivers a 1:8 zoom from 6° to 48°, and crisp focus to perfectly merge multi-layer effects.

    The RA2000PROFILE is the real embodiment of solid-state LED technology.

    Features:
    540W LED engine with 6000K CT featuring high CRI, TLCI, R9 and TM30
    13'000 lumen fixture output with flat-field projection and silent operation
    Equipped with both adjustable framing shutters and an animation wheel

    LIGHT SOURCE
    • Source:540W LED
    • CT: 6000K
    • CRI: 94
    • R9: 78
    • Luminous flux: 13000lm
    • Lux: (6°) 32200 lux - (48°) 916lux @5m
    • Source life expectancy: 60000
    • Other: TM-30-15RF/RG: 90/99 - TLCI: (6°) 92.7 - (48°) 93.3

    OPTICS
    • Zoom: 6°-48° motorised linear zoom
    • Lens diameter: 120mm
    • Focus: motorised
    COLOUR SYSTEM
    • Colour mixing: linear CMY
    • CTC: linear CTO correction 2700~6000K
    • Colour wheel: 6 dichroic filters + open
    DYNAMIC EFFECTS
    • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
    • Animation wheel: animation wheel with CW and CCW rotation
    • Rotating gobos: 7  rotating gobos + open, interchangeable, indexing
    • Gobo size: Ø 26.9 mm - img Ø 21.5 mm - 1.1 mm
    • FX generator:  shutter macros with adjustable speed
    • Circular prism: 4f with bi-directional rotation, indexing
    • Frost: Dual frost filter system, 1° soft-edge frost gobo, 5° frost wash, with linear 0-100% frost filter frost unit to soften the beam edge
    • Iris:5 - 100% motorised linear iris
    • Static colour mode: selection of static colour
    • Manual colour mode: manual adjustment of dimmer and strobe
    BODY
    • Pan angle: 540°
    • Tilt angle: 270°
    • Pan/Tilt resolution: bit 16 bit
    • Feedback: automatic repositioning after accidental movement
    • Body colour: black finishing

    CONTROL
    • Protocols: DMX512, RDM, Art-Net,W-DMX
    • DMX channels: 38 / 39 / 40 / 41channel
    • W-DMX: included, wireless solution receiver
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: LCD high resolution colour display with autoflip
    • Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer: linear 0~100% electronic dimmer
    • Strobe / shutter: 1-30Hz, electronic
    • Battery backup: battery backup for user operation without connecting to the main power
    • Operating temperature: -10° ~ +50°
    • Flicker: flicker free operation
    ELECTRICAL
    • Power consumption: 150 W / 600 W
    • Power supply: 100-240V – 50/60Hz
    • Power consumption (at 230V): (static) 574 W - (dynamic) 620W
    • Power consumption (at 120V): (static) 606 W - (dynamic) 640W
    • Output (at 230V): 4 units on a single power line
    • Output (at 120V): 2  units on a single power line
    • Power factor: pF 0.95 @ 230 V - pF 0.99 @ 120 V

    PHYSICAL
    • Cooling: combination of heat pipe cooling system and low noise fan
    • Sospension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
    • Pan / tilt lock: pan / tilt locking for transportation and maintenance
    • Signal connection: Amphenol XLR 5p IN/OUT connectors
    • Data connection: Art-Net  RJ45 IN/OUT
    • Power connection:  Neutrik powerCON TRUE1 IN/OUT connectors
    • IP rating: 20
    • Dimensions (WxHxD): 443x697x416mm
    • Weight: 31.38kg
    RA2000PROFILE
     540 W high-precision LED moving profile
    PIXIEBEAM



    PIXIEBEAM 1




    PIXIEBEAM is a fast, bright and compact moving LED beam luminaire. Some looks are all about scale. The PIXIEBEAM takes this idea to a different level featuring incredible speed and infinite rotation of both pan and tilt.

    TECHNICAL SPECIFICATIONS

    LIGHT SOURCE
    • Source: 60W RGBW Osram Ostar LEDs
    • Lux: 11'120lx @3 m full
    • Source life expectancy: > 50.000 h
    OPTICS
    • Beam angle: 4,5°
    • Lens diameter: 100mm / 3.94''
    COLOUR SYSTEM
    • Colour mixing: RGBW / FC
    • CTC: CTC control through independent DMX channel
    • White presets: 2.000 K ~ 8.000K
    • Colour wheel: virtual colour wheel with presets
    BODY
    • Pan angle: ° with 360° continuous rotation
    • Tilt angle: ° with 360° continuous rotation
    • Pan/Tilt resolution: bit 8 / 16 bit
    • Feedback: automatic repositioning after accidental movement
    • Body: aluminium structure with hi-resistance polycarbonate cover
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM
    • DMX channels: 14 / 16 / 18channel
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: black OLED high resolution display
    • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
    • Hibernation: power safe mode when lost DMX
    • Master/Slave: for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer: linear 0 ~ 100% electronic dimmer
    • Strobe / shutter: 1 - 25 Hz, electronic
    • Operating temperature: -10° ~ +45°
    • Flicker: flicker free operation
    ELECTRICAL
    • Power supply: 100-240 V – 50/60 Hz
    • Power consumption (at 230 V): 82W
    • Power consumption (at 120 V): 82W
    • Output (at 230 V): 15 units on a single power line
    PHYSICAL
    • Cooling: forced air with low noise fan
    • Sospension and fixing: any position with quick-lock omega brackets
    • Signal connection: Amphenol XLR 5p IN/OUT connectors
    • Power connection: Neutrik powerCON IN/OUT connectors
    • IP rating: 20
    • Dimensions (WxHxD): 208x300x144mm / 8.19''x11.81''x5.67''
    • Weight: 4kg / 8.82lbs
    PIXIEBEAM
    60 W single source moving LED beam luminaire with continuous rotation

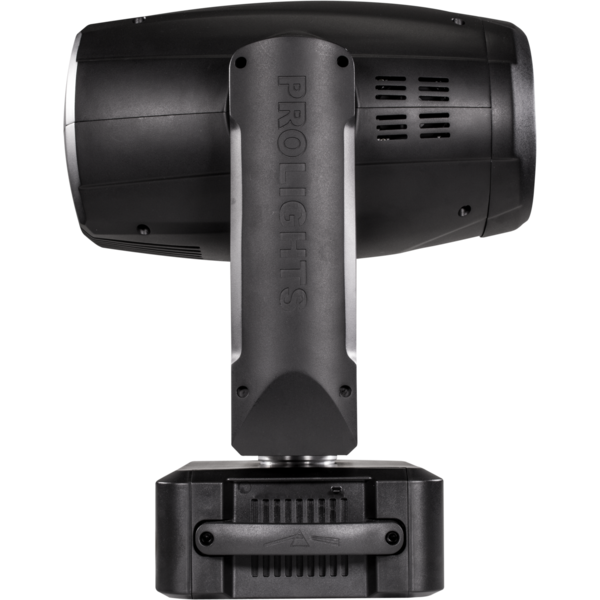

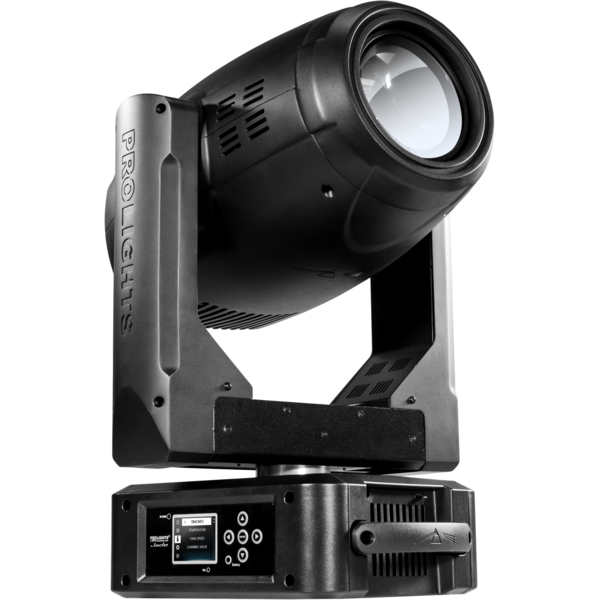

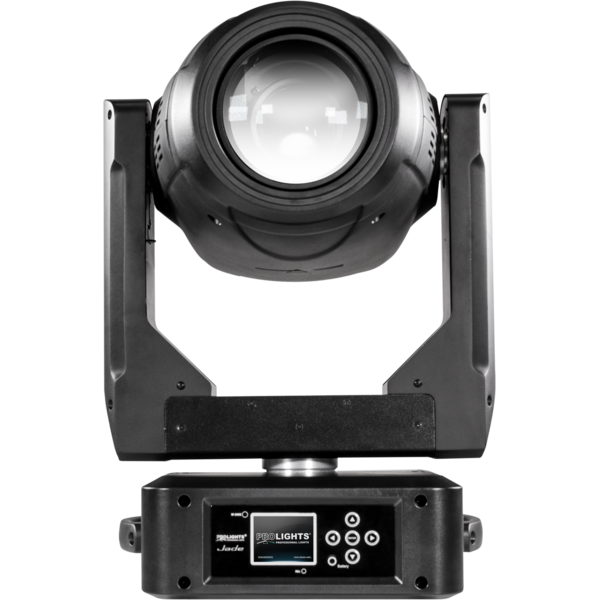

    JADE

     280W

    JADE 1



    JADE 2

    JADE 3

    JADE 4





    JADE is a hybrid moving light delivering a full toolkit for designers in a single, compact fixture. Harnessing the power of the 280 W discharge source with a custom optical system, it provides a punchy beam, even wash and crisp spot - all from a single unit.

    Features:
    Massive 2° to 23° zoom range with beam and spot modes
    13 position colour wheel including CTC filters
    Extensive effects including: rotating gobo wheel, static gobo wheel, dual prisms and linear frost

    LIGHT SOURCE
    • Source : 280W S Osram Sirius HRI
    • CT: 7.800K
    • Luminous flux: 9'826lm
    • Lux: (2°) 31'390lx @5 m
    • Lux: (5.5°) 2'562lx @5 m
    • Source life expectancy: 2.000 h


    OPTICS
    • Zoom: beam: 2°-10° / spot: 5,5°-23° motorised linear zoom
    • Lens diameter: 117mm
    • Lens type: high-quality glass lens optics
    • Additional optics: heat filter to switch from beam to spot modes
    • Focus: motorised with auto-focus
    COLOUR SYSTEM
    • CTC: on wheel 2500 K and 3200 K + CTB
    • Colour wheel: 13 dichroic filters + open
    • Macros: linear, half colours, colour bounce
    DYNAMIC EFFECTS
    • Rotating gobos: 9 rotating gobos + open, interchangeable
    • Gobo size: outer: 15,7 mm - image: 12 mm - thickness: 1,1 mm
    • Fixed gobos: 14 fixed gobos + open
    • Circular prism: 8f with bi-directional rotation, indexing
    • Linear prism: 6f with bi-directional rotation, indexing
    • Frost: frost unit to soften the beam edge
    BODY
    • Pan angle: 630° - 540°
    • Tilt angle: 265°
    • Pan/Tilt resolution: bit 8 / 16 bit
    • Feedback: automatic repositioning after accidental movement
    • Body:aluminium structure with hi-resistance polycarbonate cover
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM, W-DMX
    • DMX channels: 14 / 16 / 22 / 23channel
    • W-DMX: included, wireless solution receiver
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: LCD high resolution colour display
    • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
    • Hibernation: power safe mode when lost DMX
    ELECTRONICS
    • Dimmer:linear 0 ~ 100% mechanical dimmer
    • Strobe / shutter: 1 - 25 flash(s), mechanical
    • Battery backup: battery backup for user operation without connecting to the main power
    • Operating temperature:-10° ~ +45°
    ELECTRICAL
    • Power supply: 100-240 V – 50/60 Hz
    • Power consumption (at 230 V): 423W
    • Power consumption (at 120 V):423W

    PHYSICAL
    • Cooling: forced air with low noise fan
    • Sospension and fixing: any position with quick-lock omega brackets
    • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
    • Power connection: Neutrik powerCON TRUE1 IN connector
    • IP rating: 20

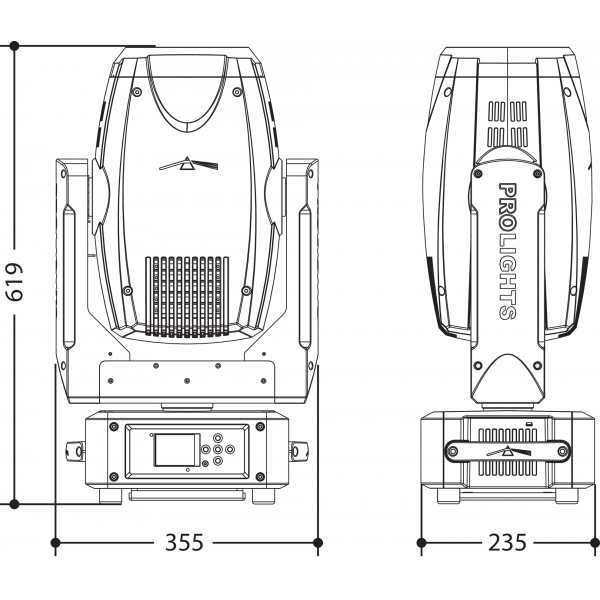

    • Dimensions (WxHxD): 355x619x235mm
    • Weight: 17kg









    JADE
    280 W hybrid beam / spot moving light

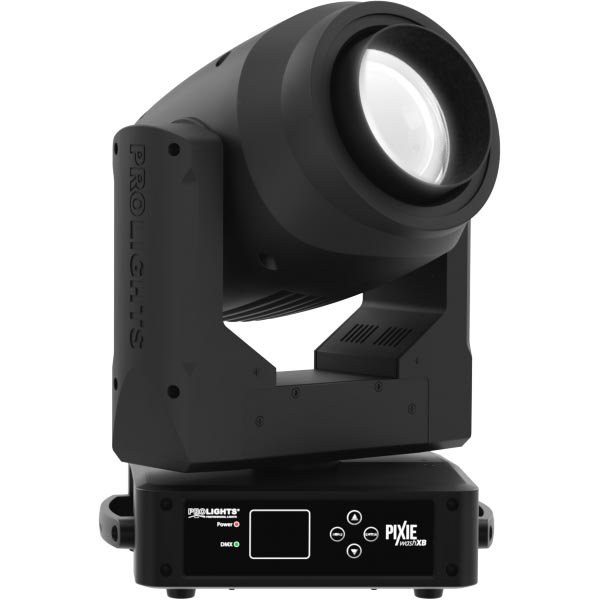

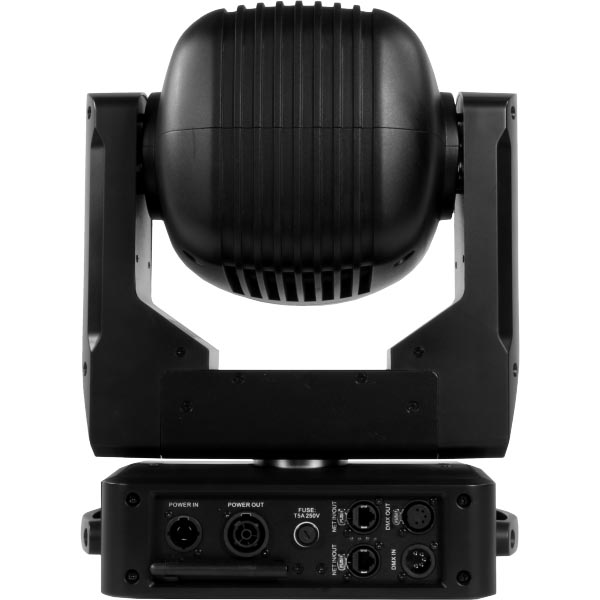

    PIXIEWASHXB


     280W


    Immagine Principale



    PIXIEWASHXB reinvents the concept of the moving LED wash light; bringing together the classic styling of a traditional wash luminaire and applying the very latest innovations in the field of LED technology. The large frontal plano-convex lens delivers a stunning level of brightness and an exceptional zoom range with a 1:8 ratio, combined with a proprietary 280W RGB + warm white LED module delivering a high-quality white reproduction with high CRI and TLCI parameters as well an extremely precise colour tuning. PIXIEWASH is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being compact, fast and silent, the PIXIEWASHXB offers unprecedented flexibility is ideal for use in theatres, TV, corporate and festivals.

    Features:
    280W proprietary RGB + warm white LED delivering high CRI, TLCI, TM30 values
    6 to 45 linear zoom with superior evenness
    Art-net and WDMX on-board

    LIGHT SOURCE
    • Source: 280W RGB + warm white
    • CT: 6500K
    • CRI: >92
    • R9: >94
    • Luminous flux: (6°) 3670 lm - (45°) 3795lm
    • Lux: (6°) 29900 lux - (45°) 1590lux @3m full
    • Lux: (6°) 10764 lux - (45°) 572lux @5m full
    • Source life expectancy: 70000
    • Other: TM-30-15RF/RG: 90/99 - TLCI: >85

    OPTICS
    • Zoom: 6° - 45°motorised linear zoom
    • Field angle: 11° - 43°
    • Lens diameter: 125mm
    • Lens type: high-quality glass lens optics
    COLOUR SYSTEM
    • Colour mixing: RGB+Warm White
    • CTC: CTC control through independent DMX channel
    • White presets: 2800K-10000K
    • Colour wheel: virtual colour wheel with presets
    • Macros: several pre-build macros with adjustable speed
    BODY
    • Hardware on-board: OMEGA sockets for quick rigging (clamp included)
    • Pan angle: 540°
    • Tilt angle: 250°
    • Pan/Tilt resolution: 8/16bit
    • Feedback: automatic repositioning after accidental movement
    • Body: aluminium die-casting
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM, Art-Net,W-DMX
    • DMX channels: 15 / 18 / 22channel
    • W-DMX: included, wireless solution receiver
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: LCD high resolution colour display with autoflip
    • Firmware upgrade:  yes, via USB-DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer:   linear 0~100% electronic dimmer
    • Dimmer curves: different dimming curves available
    • Strobe / shutter: 1-30 Hz, electronic
    • Battery backup:  battery backup for user operation without connecting to the main power
    • Operating temperature: -20° ~ +45°
    • Flicker: flicker free frequency with adjustable PWM
    ELECTRICAL
    • Power consumption: 326W
    • Power supply: 100-240V – 50/60Hz
    • Power consumption (at 230V): 338W
    • Power consumption (at 120V): 342W
    • Output (at 230V): 3  units on a single power line
    • Output (at 120V): 2  units on a single power line
    • Power factor: pF 0.99 @ 120V - pF 0.95 @ 230V

    PHYSICAL
    • Cooling: combination of heat pipe cooling system and low noise fan
    • Sospension and fixing: any position with quick-lock omega brackets
    • Signal connection: DMX 5p IN/OUT
    • Data connection: Art-Net  RJ45 IN/OUT
    • Power connection:   Seetronic powerCON waterproof IN/OUT connectors
    • IP rating: 20
    • Dimensions (WxHxD): 443x230x308mm
    • Weight: 14kg
    PIXIEWASHXB

    60W single source compact and zoomable LED wash luminaire


    PANORAMAIPWBX


     IP65


    Immagine Principale




    PANORAMAIPWBX is a stunning IP65 high-output, LED wash light with pixel ring designed to bring the workhorse LED washlight to outdoor events. Featuring 19 of Osrams new 40W RGBW Ostar LEDs, it delivers a massive output with a huge colour range and an extensive toolkit of effects.

    Features:
    IP65 for temporary outdoor application, not for fixed installation
    19 LED RGBW/FC Osram 40W + outer RGB pixel ring
    Massive 3° to 45° linear zoom range from beam to wash
    Individual pixel control with on-board FX generator for both LEDs and pixel ring for fast and precise effects
    Heat-pipe cooling system for efficient cooling with virtually no noise

    LIGHT SOURCE
    • Source: 19x40W RGBW Osram Ostar LEDs
    • Lux: (3°) 60000 lux (45°) 5010lux @3m full
    • Lux: (3°) 31500 lux (45°) 2000lux @5m full
    • Source life expectancy: >50.000 h
    • Other: Outer RGB Pixel ring with frost film

    OPTICS
    • Zoom: 3-45° motorised linear zoom
    • Lens type: high-quality glass lens optics
    • Additional optics: Diffuser on outer pixel ring

    COLOUR SYSTEM
    • Colour mixing: RGBW/FC
    • CTC: CTC control through independent DMX channel
    • White presets: 2000-10000K
    • Colour wheel: virtual colour wheel with presets
    • Macros: several pre-build pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Pixel patterns: pre-programmed dynamic and static patterns
    • FX generator: adjustable foreground/background colour, index, speed, direction
    • Special features: Outer RGB pixel ring with several built in customizable FX macros

    BODY
    • Pan angle: 540-630°
    • Tilt angle: 267°
    • Pan/Tilt resolution: bit 16 bit
    • Feedback: automatic repositioning after accidental movement
    • Body: weatherproof IP65 construction
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM, Art-Net,W-DMX
    • DMX channels: V1: 18 / 42 / 44 / 120, V2: 18 / 42 / 44 / 120channel
    • Pixel control: Pixel2Pixel control
    • W-DMX: included, wireless solution receiver
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: LCD high resolution colour display with autoflip
    • Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included
    • Hibernation:  power safe mode when lost DMX
    • Master/Slave: for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer: linear 0~100% electronic dimmer
    • Strobe / shutter: 1-30  Hz, electronic
    • Battery backup: battery backup for user operation without connecting to the main power
    • Operating temperature: -20° ~ +45°
    • Flicker: flicker free operation
    ELECTRICAL
    • Power supply:100-240V – 50/60Hz
    • Power consumption (at 230V): 661W
    • Power consumption (at 120V): 698W

    PHYSICAL
    • Cooling: combination of heat pipe cooling system and low noise fan
    • Sospension and fixing: any position with quick-lock omega brackets
    • Signal connection: Seetronic XLR 5p IN/OUT connectors
    • Data connection: Art-Net  RJ45 IN/OUT
    • Power connection:  Neutrik powerCON TRUE1 IN connector
    • IP rating: 65 for temporary outdoor application, not for fixed installation
    • Dimensions (WxHxD): 529x676x312mm
    • Weight: 35kg
    PANORAMAIPWBX
    19x40W IP65 moving wash, beam and pixel ring effect light
    LUMA1500SH


    Immagine Principale





    LUMA1500SH is a 440W 6500K LED profile light designed to replace the 1200W discharge fixture used in theatres, concerts, events and broadcast. The custom optical system delivers a consistent output with a flat-field and crisp gobo projection right through the massive 5° to 50° zoom range.


    Features:
    Rotating gobo wheel, static gobo wheel and either full framing shutter (SH) or animation wheel (SP) interchangeable modules
    Full CMY colour mixing system with separate linear CTO, plus colour wheel
    Full framing shutter core module with individual depth and angle control of each blade as well as module index

    LIGHT SOURCE
    • Source: 440W high-power white LED
    • CT: 6500K
    • Lux: (5°) 26533 - (50°) 1535lux @5m
    • Source life expectancy: >20.000 h
    OPTICS
    • Zoom: 5-50° motorised linear zoom
    • Lens diameter: 120mm
    • Lens type: HD anti-reflection lenses with achromatic coating
    • Focus: motorised with auto-focus
    • Other: High-quality flat-field projection


    COLOUR SYSTEM
    • Colour mixing: linear CMY
    • CTC: linear CTO correction 2700~6000K
    • Colour wheel: 7 dichroic filters + open
    DYNAMIC EFFECTS
    • Shutter system: (Inc) 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
    • Animation wheel: (Opt) animation wheel with CW and CCW rotation
    • Rotating gobos: 6 rotating gobos + open, interchangeable, indexing
    • Gobo size: gobo Ø 27 mm - img Ø 20 mm - 1.1 mm
    • Fixed gobos: 7 fixed gobos + open, interchangeable
    • Gobo size: gobo Ø 27 mm - img vØ 20 mm - 1.1 mm
    • Circular prism: 3f with bi-directional rotation, indexing
    • Frost: linear 0-100% frost filter
    • Iris: 5-100% motorised linear iris
    BODY
    • Pan angle: 630-540°
    • Tilt angle: 267°
    • Pan/Tilt resolution: bit 8/16 bit
    • Feedback: automatic repositioning after accidental movement
    • Body: aluminium structure with hi-resistance polycarbonate cover
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM, W-DMX
    • DMX channels: 28 / 30 / 37 / 38channel
    • W-DMX: included, wireless solution receiver
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: LCD high resolution colour display
    • Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included
    • Hibernation: power safe mode when lost DMX
    ELECTRONICS
    • Dimmer: linear 0~100% electronic dimmer
    • Strobe / shutter: 1-28Hz, electronic
    • Battery backup: battery backup for user operation without connecting to the main power
    • Operating temperature: -10° ~ +45°
    ELECTRICAL
    • Power supply: 100-240V – 50/60Hz
    • Power consumption (at 230V): 650W
    • Power consumption (at 120V): 650W
    • Power factor: 0.98


    PHYSICAL
    • Cooling: combination of heat pipe cooling system and low noise fan
    • Sospension and fixing: any position with quick-lock omega brackets
    • Pan / tilt lock: pan / tilt locking for transportation and maintenance
    • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
    • Power connection: Neutrik powerCON TRUE1 IN connector
    • IP rating: 20
    • Dimensions (WxHxD): 428x758x285mm
    • Weight: 31kg
    LUMA1500SH
    440W LED profile

    STATIC LIGHTS

    MOSAICO



    MOSAICO is a powerful outdoor LED fixture for the projection of textures, images and logos onto buildings and landscapes. The outstanding 11388 lumen output allows for replacement of the 1200 HID fixture with this far more durable and advanced tool. The complete set of onboard effects allow for extreme creative integration in any context and the zoomable optics makes it a truly versatile fixture for both near-field and long-throw installations


    Features:
    IP rating: 66 waterproof housing allowing for long-lasting installation with minimal maintenance
    Beam angle zooming from 10° to 45° allows for flexible use and opens up a new level of effects
    Extremely bright with over 11388 lumens, crisp and with 5 layers of effects allowing for limitless combinations

    LIGHT SOURCE
    • Source: 250W high-power white LED
    • CT: 7300K
    • CRI: 75
    • Luminous flux: 11388lm
    • Lux: (10°) 14028 lux - (45°) 1146lux @5m
    • Source life expectancy: >20.000 h
    OPTICS
    • Zoom: 10~45° motorised linear zoom
    • Lens diameter: 109mm
    • Lens type: high-quality glass lens optics
    • Focus: motorised
    COLOUR SYSTEM
    • Colour wheel: 14 dichroic filters + open on 2 independent colour wheels (7+7)
    DYNAMIC EFFECTS
    • Animation wheel: animation wheel with CW and CCW rotation
    • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
    • Gobo size: gobo Ø 26.9 mm - img Ø 24 mm - 1.1 mm
    • Circular prism: 3f with bi-directional rotation, indexing
    • Frost: linear 0-100% frost filter
    • Iris: 0~100% motorised linear iris
    BODY
    • Body: weatherproof IP65 construction
    • Body colour: cool gray
    CONTROL
    • Protocols: DMX512, RDM, W-DMX
    • DMX channels: 12 / 14channel
    • W-DMX: included, wireless solution receiver
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: black OLED touch display
    • Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer: linear 0~100% electronic dimmer
    • Dimmer curves: 4 different dimming curves available
    • Strobe / shutter: 1~30  Hz, electronic
    • Operating temperature: -20° ~ +45°
    ELECTRICAL
    • Power supply: 100-240V – 50/60Hz
    • Power consumption (at 230V): 316W
    • Power consumption (at 120V): 320W
    • Output (at 230V): 11 units on a single power line
    • Output (at 120V): 6 units on a single power line
    PHYSICAL
    • Cooling: forced air with IP low noise fan
    • Sospension and fixing: hanging bracket suitable for safe hanging and positioning
    • Adaptors: XLR and 16A adaptors included
    • Signal connection: moulded IP signal IN/OUT connectors
    • Data connection: W-DMX OEM TRX
    • Power connection: moulded IP power IN/OUT connectors
    • IP rating: 66 for outdoor installations
    • Dimensions (WxHxD): 331x424x450mm
    • Weight: 19.3 kg


    Mosaico
    250 W IP66 zoomable LED image projector with animation wheel

    ARENACOB4FC




    ARENACOB4FC is a full colour LED replacement for a traditional 4 cell DWE blinder. Each of the individually controllable 75W RGBW cells deliver a consistent, powerful punch that has been designed to perform in even the largest environments.


    Features:
    Four powerful RGBW LED cells with sizing and spacing matching traditional linear blinders
    Individual cell control for effects and amber shift for tungsten emulation
    IP65 housing for the most demanding environments with a virtually limitless 'building block' rigging system

    LIGHT SOURCE
    • Source: 4x75W RGBW LEDs
    • Luminous flux: (24°) 5393 lm, (40°) 6260lm
    • Lux: (24°) 2413lux @3m full
    • Lux: (40°) 891lux
    • Source life expectancy: >50.000 h
    OPTICS
    • Beam angle: (inc) 24° - (opt) 40°
    • Field angle: 46°
    • Pixel pitch: 150mm
    • Lens diameter: 100mm
    • Lens type: dichroic parabolic reflector in combination with HD fresnel lens
    • Additional optics: 40°(opt), 32° without magnetic lens
    • Other: Magnetic replacement of front lens
    COLOUR SYSTEM
    • Colour mixing: RGBW/FC
    • CTC: CTC control through independent DMX channel
    • White presets: 2000~8000K
    • Colour wheel: virtual colour wheel with presets
    DYNAMIC EFFECTS
    • Pixel patterns: pre-programmed dynamic and static patterns
    • FX generator: adjustable foreground/background colour, index, speed, direction
    • Static colour mode: selection of static colour
    • Manual colour mode: manual adjustment of colour
    • Auto mode: built-in programs with execution speed adjustment
    • Special features: HALO DWE dimming and amber-shift simulation
    BODY
    • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
    • Body: sturdy die-cast aluminium body conceived for long-time durability
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM
    • DMX channels: HALO 1 / 4channel - STD 4 / 6 / 15 channel - EXT16 / 21 / 27
      channel
    • Pixel control: pixel2pixel control
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: black OLED touch display
    • Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
    • Master/Slave: for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer: linear 0~100% electronic dimmer
    • Dimmer curves: 4 different dimming curves available
    • Strobe / shutter: 1-28 Hz, electronic
    • Battery backup: battery backup for user operation without connecting to the main power
      Operating temperature: -20° ~ +45°
    • Flicker: flicker free operation
    ELECTRICAL
    • Power supply: 100-240V – 50/60Hz
    • Power consumption (at 230V): 227W
    • Power consumption (at 120V): 230W
    • Output (at 230V): 16 units on a single power line
    • Output (at 120V): 8 units on a single power line
    PHYSICAL
    • Cooling: natural cooling of the peculiar chassis and to absence of fans
    • Sospension and fixing: hanging bracket suitable for safe hanging and positioning
    • Signal connection: Seetronic XLR 5p IN/OUT connectors
    • Power connection: Seetronic powerKon waterproof IN/OUT connectors
    • IP rating: 65 for outdoor installations
    • Dimensions (WxHxD): 619x167x264mm
    • Weight: 8kg


    ArenaCob 4FC
    4x75 W IP65 multifunctional full colour LED blinder

    PIXIEZOOM



    PIXIEZOOM is a single-source LED PAR featuring a 6°- 50° linear zoom and a fully homogenised output. Its IP65 housing and solid build allow it to be used in any event from theaters to festivals.


    Features:
    Single 60W RGBW LED source delivers an even beam and full colour spectrum
    Wide linear zoom from 6° to 50°
    IP65 rating allowing for flexible use

    LIGHT SOURCE
    • Source: 60W RGBW Osram LED
    • Luminous flux: 1001lm
    • Lux: (6°) 7650lux @3m full
    • Lux: (50°) 590lux @3m full
    • Source life expectancy: >50.000 h
    OPTICS
    • Zoom: 6-50° motorised linear zoom
    • Lens diameter: 100mm
    • Lens type: high-quality glass lens optics
    COLOUR SYSTEM
    • Colour mixing: RGBW/FC
    • CTC: CTC control through independent DMX channel
    • White presets: 2000~8000K
    • Colour wheel: virtual colour wheel with presets
    DYNAMIC EFFECTS
    • Static colour mode: selection of static colour
    • Manual colour mode: manual adjustment of colour
    • Auto mode: built-in programs with execution speed adjustment
    BODY
    • Body: sturdy die-cast aluminium body conceived for long-time durability
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM
    • DMX channels: 5 / 7 / 11 channel
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: black OLED touch display
    • Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
    • Master/Slave: for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer: linear 0~100% electronic dimmer
    • Dimmer curves: 4 different dimming curves available
    • Strobe / shutter: 1-28 Hz, electronic
    • Battery backup: battery backup for user operation without connecting to the main power
    • Operating temperature: -20° ~ +45°
    • Flicker: flicker free frequency with adjustable PWM
    • Selectable PWM: 600~25K Hz
    ELECTRICAL
    • Power supply: 100-240V – 50/60Hz
    • Power consumption (at 230V): 97W
    • Power consumption (at 120V): 100W
    • Output (at 230V): 22 units on a single power line
    PHYSICAL
    • Cooling: pressure and temperature balance through GORE membrane vents
    • Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection: Seetronic XLR 5p IN/OUT connectors
    • Power connection: Seetronic powerKon waterproof IN/OUT connectors
    • IP rating: 65 for outdoor installations
    • Dimensions (WxHxD): 259x182x400mm
    • Weight: 5.5kg


    Pixie Zoom
    60 W IP54 single source full colour zoom PAR

    Solar 48Q

    ORDER CODE: SOLAR48Q

    48x10 W high brightness indoor/outdoor compact wash light

    Solar 48Q is a compact fan-free outdoor wash light featuring an outstanding brightness of 22'760 lumens. Equipped with 48x10 W RGBW full-colour LEDs all delivering superior colour mixing. Featuring a slimline styling, multiple interchangeable optics through magnets, asymmetrical filters which combined, make the Solar 48Q an incredibly flexible device for indoor and outdoor use. Whilst highly-powerful, the Solar 48Q is also completely silent.

    Main features:

    • 48x10 W RGBW / FC LED delivering 22'760 lumens
    • Compact form factor and fan-free
    • Wireless DMX on-board


    PHOTO GALLERY

    <strong>Solar</strong> 48Q
    <strong>Solar</strong> 48Q
    <strong>Solar</strong> 48Q
    <strong>Solar</strong> 48Q

    TECHNICAL SPECIFICATIONS

    LIGHT SOURCE
    • Source: 48x10W RGBW / FC LEDs
    • Luminous flux: 22'760lm
    • Lux: (25°) 14'900lx @3 m full
    • Lux: (25°) 5'364lx @5 m full
    • Source life expectancy: > 50.000 h
    OPTICS
    • Beam angle: 25° - With included filter 45°
    • Additional optics: 10° / 15° / 45° / 40° filter / 10x60° filter / 30x60° filter
    • Other: magnetic filter included to achieve 45° (60° filter), barn door not included
    COLOUR SYSTEM
    • Colour mixing: RGBW / FC
    • CTC: CTC control through dedicated DMX channel
    • Colour wheel: virtual colour wheel with presets
    • Macros: several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • FX generator: section effect with 4 horizontal individually select and control sections
    • Static colour mode: selection of static colour
    • Manual colour mode: manual adjustment of colour
    • Auto mode: built-in programs with execution speed adjustment
    BODY
    • Hardware on-board: magnetic filter frame with 45° filter
    • Tilt angle: 0 - 150° with manual regulation
    • Body: sturdy die-cast aluminium body conceived for long-time durability
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM, W-DMX
    • DMX channels: 5 / 7 / 10 / 17 / 22channel
    • W-DMX: included, wireless solution receiver
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: black OLED high resolution display
    • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave: for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer: linear 0 ~ 100% electronic dimmer
    • Dimmer curves: 4 different dimming curves available
    • Strobe / shutter: 1 - 30 Hz, electronic
    • Battery backup: battery backup for user operation without connecting to the main power
    • Operating temperature: -20° ~ +45°
    • Flicker: flicker free frequency with adjustable PWM
    • Selectable PWM: 600 ~ 25.000 Hz
    ELECTRICAL
    • Power consumption: 700
    • Power supply: 100-240 V – 50/60 Hz
    • Power consumption (at 230 V): 513W
    • Power consumption (at 120 V): 541W
    • Output (at 230 V): 4 units on a single power line
    • Output (at 120 V): 2 units on a single power line
    • Power factor: 0,95
    PHYSICAL
    • Cooling: passive cooling and fan-free
    • Sospension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
    • Signal connection: Seetronic XLR 5p IN/OUT connectors
    • Data connection: W-DMX receiver
    • Power connection: Seetronic powerCON waterproof IN/OUT connectors
    • IP rating: 65 for temporary outdoor application, not for fixed installation
    • Dimensions (WxHxD): 563x314x93mm / 22.17''x12.36''x3.66''
    • Weight: 12,9kg / 28.44lbs





    Solar 48Q
    48x10 W high brightness indoor/outdoor compact wash light

    THEATRE & STUDIO




    ECLIPSEHD2 updates ECLIPSEHD ranges with extra brightness and higher CRI/R9/TLCI.

    The fixture is a proper LED replacement for the traditional 750W Tungsten ellipsoidal luminaire. The optical system harnesses the power of a 230W COB LED to create an even beam with clean shutter cuts and beautiful sharp or soft edge gobo focusing.

    Featuring HD dimming and available in a 3300K or 5400K, the ECLIPSEHD2 delivers the performance and quality of output demanded from this level of the luminaire.


    Features:
    Outstanding brightness over 15K lm for DY and 14k lm for TU versions
    CRI>95 (DY) and CRI>97 (TU), High R9 and TLCI values

    LIGHT SOURCE
    • Source:1x230W high-power white LED
    • CT: (TU) 3300 K - (DY) 5400K
    • CRI: (TU) 97 - (DY) 95,5
    • Luminous flux: (TU) 19°: 10989 lm; 26°: 13504 lm; 36°:13548 lm; 50°: 12020 lm - (DY) 19°: 11694 lm; 26°: 14466 lm; 36°:14454 lm; 50°: 12267lm
    • Lux:(TU) 19° 28800 lux; 26° 22300 lux; 36° 12600 lux; 50° 4150lux @3m
    • Lux: (DY) 19° 33000 lux; 26° 24300 lux; 36° 13900 lux; 50° 6000lux @3m
    • Source life expectancy:  >50.000
    • Other: TLCI: (TU) 19°: 90.5, 26°: 89.7, 36°: 92, 50°: 90
    OPTICS
    • Beam angle: optional 19° / 26° / 36° / 50° / Z 15-30° / Z 25-50°
    • Lens type: high-quality glass lens optics
    • Focus: manual
    COLOUR SYSTEM
    • Colour mixing: static white


    DYNAMIC EFFECTS
    • Gobo size:B
    • Static colour mode: selection of static colour
    • Manual colour mode:
    • Auto mode:built-in programs with execution speed adjustment
    BODY
    • Body: sturdy die-cast aluminium body conceived for long-time durability
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM
    • DMX channels: 1 / 2 / 5 channel
    • RDM:  RDM ready for fixture remote monitor and setting
    • Display: black OLED high resolution display
    • Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
    • Master/Slave: for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer: linear 0~100% electronic dimmer
    • Dimmer curves: 4 different dimming curves available
    • Strobe / shutter: 1-25 Hz, electronic
    • Operating temperature: -10° ~ +45°
    • Flicker: flicker free operation
    • Selectable PWM: 600~25K Hz
    ELECTRICAL
    • Power supply: 100-240V – 50/60Hz
    • Power consumption (at 230V): 229 W
    • Power consumption (at 120V): 226 W
    • Output (at 230V): 15 units on a single power line
    • Output (at 120V): 8 units on a single power line
    PHYSICAL
    • Cooling: combination of heat pipe cooling system and low noise fan
    • Sospension and fixing: hanging bracket suitable for safe hanging and positioning
    • Signal connection: Amphenol XLR 5p IN/OUT connectors
    • Power connection: Neutrik powerCON IN/OUT connectors
    • IP rating: 20
    • Dimensions (WxHxD): 528*342*526mm
    • Weight: 7,11 kg
    Eclipse HD2

    230 W high power LED ellipsoidal profile with white source

    ECLIPSEFC



    Immagine Principale

    • ECLIPSEFC
    • ECLIPSEFC
    • ECLIPSEFC
    • ECLIPSEFC
    • ECLIPSEFC
    • ECLIPSEFC
    • ECLIPSEFC
    • ECLIPSEFC
    • ECLIPSEFC
    • ECLIPSEFC

    ECLIPSEFC
      Code Housing
    ECLIPSEFCBK Black
    ECLIPSEFCWH White

    ECLIPSEFC is a full colour LED Ellipsoidal designed to deliver a full range of pastels, whites or saturates smoothly, consistently and both with or without gobos.

    The ECLIPSEFC’s RGB + Lime LED engine has been specially engineered to provide a full spectrum and full output in the most discerning environments, regardless of which role the ECLIPSEFC is playing.

    Features:
    RGB + Lime LED Ellipsoidal with HD dimming and extensive colour palette
    High Definition optics for sharp gobo projection
    Accepts industry standard accessories

    LIGHT SOURCE
    • Source: 91x3WRGB + lime LEDs
    • Luminous flux: (19°) 3921lm - (26°) 4918lm - (36°) 4918lm - (50°) 4557lm
    • Lux: (19°) 5850lux, (26°) 3769lux, (36°) 2280lux, (50°) 1050lux @3m full
    • Source life expectancy: >50.000 h
    OPTICS
    • Beam angle: optional 19° / 26° / 36° / 50° / Z15 - 30° / Z25 - 50°
    • Lens type: high-quality glass lens optics
    COLOUR SYSTEM
    • Colour mixing: RGB + lime / full colour
    • CTC: CTC control through independent DMX channel
    • White presets: 2700~10000K
    • Macros: built-in white presets
    DYNAMIC EFFECTS
    • Gobo size: B
    • Static colour mode:   selection of static colour
    • Manual colour mode: manual adjustment of colour
    • Special features: Automatic software colour balance when fixture warms up

    • BODY
    • Body: sturdy die-cast aluminium body conceived for long-time durability
    • Body colour:  black, white finishing available
    CONTROL
    • Protocols: DMX512, RDM
    • DMX channels: Theater 1 / 3 / 5 channel - Tour 4 / 8 / 11channel
    • RDM: RDM ready for fixture remote monitor and settings
    • Display:black OLED high resolution display
    • Firmware upgrade:  yes, via USB-DMX interface (UPBOX1) not included
    • Master/Slave: for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer: linear 0~100% electronic dimmer
    • Dimmer curves: 4 different dimming curves available
    • Strobe / shutter: 1-25  Hz, electronic
    • Battery backup:  battery backup for user operation without connecting to the main power
    • Operating temperature:  -10° ~ +45°
    • Flicker: flicker free operation
    • Selectable PWM:  600~25K Hz
    ELECTRICAL
    • Power supply: 100-240V – 50/60Hz
    • Power consumption (at 230V): 216W
    • Output (at 230V): 6 units on a single power line
    PHYSICAL
    • Cooling: combination of heat pipe cooling system and low noise fan
    • Sospension and fixing: hanging bracket suitable for safe hanging and positioning
    • Signal connection: Amphenol XLR 5p IN/OUT connectors
    • Power connection: Neutrik powerCON IN/OUT connectors
    • IP rating: 20
    • Dimensions (WxHxD)734x342x342mm
    • Weight: 7kg
    Eclipse FS
    High power full spectrum LED ellipsoidal
    ECLFR2K


    Immagine Principale

    • ECLFR2K
    • ECLFR2K
    • ECLFR2K
    • ECLFR2K

    ECLFR2K
      Code
    ECLFR2KDY
    ECLFR2KTU



    ECLFR2K is the LED replacement for a standard tungsten 2K fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The ECLFR2K adds all the advantages of LED to the Fresnel.


    Features:
    TU (3200K) and DY (5600K) versions available both with HD dimming
    Fresnel lens with 15° to 45° zoom range
    Silent operation for studio and stage use

    LIGHT SOURCE
    • Source: 507W high-power white LED
    • CT: (TU) 3200 K - (DY) 5600K
    • CRI: (TU) 97 Ra - (DY) 92
    • R9: (TU) >90 - (DY) > 81
    • Luminous flux: (TU) (45°) 25338 lm (15°) 22556 lm - (DY) (45°) 33750 lm (15°) 27960lm @Full
    • Lux: (TU) (15°) 28400 lux - (45°) 6150 lux - (DY) (15°) 31200 lux - (45°) 6790lux @3m full
    • Lux: (TU) - (15°) 10224 lux - (45°) 2214 lux - (DY) (15°) 11231 lux - (45°) 2445lux @5m full
    • Source life expectancy: >50.000 h
    • Other: TM30-15RG/RF: (TU - 15°) 94/103, (TU - 45°) 93/104 - (DY - 15°) 90/102, (DY - 45°) 90/103 - TLCI: (TU - 15°) 94.8, (TU - 45°) 94.4 - (DY - 15°) 94, (DY - 45°) 93.6


    OPTICS
    • Zoom: 15° - 45° manual
    • Lens diameter: 250mm
    • Lens type: Fresnel zoom lens
    • Other: Spigot, barn door and gel frame included


    COLOUR SYSTEM
    • Colour mixing: warm white
    • Macros: several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • Static colour mode: selection of static dimmer
    • Manual colour mode: manual adjust of dimmer throught menu and knob
    • Auto mode: built-in programs with execution speed adjustment
    BODY
    • Hardware on-board:filter frame, 8 doors barndoor, omega bracket spigot
    • Body: sturdy die-cast aluminium body conceived for long-time durability
    • Body colour:black
    • Other: Pan/Tilt infinite for pole operated version


    CONTROL
    • Protocols: DMX512, RDM, Local knob
    • DMX channels: 1 / 2-1 / 2-2 / 3 / 5channel
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: black OLED high resolution display
    • Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
    • Master/Slave: for synchronized operation of more units linked in a chain
    • Other: 16bit control of dimmer
    ELECTRONICS
    • Dimmer: linear 0~100% electronic dimmer
    • Dimmer curves: different dimming curves available
    • Strobe / shutter: 1 - 30 Hz, electronic
    • Operating temperature: -10° ~ +45°
    • Flicker: flicker free frequency with adjustable PWM
    • Selectable PWM: 600~25K Hz
    ELECTRICAL
    • Power consumption: 550W
    • Power supply: 100-240V – 50/60Hz
    • Power consumption (at 230V): 466W
    • Power consumption (at 120V): 469W
    • Output (at 230V): 4 units on a single power line
    • Output (at 120V): 2 units on a single power line
    • Power factor:  pF 0.96 @ 230V - pF 0.99 @ 120V


    PHYSICAL
    • Cooling: combination of heat pipe cooling system and low noise fan
    • Sospension and fixing: hanging bracket suitable for safe hanging and positioning
    • Signal connection: Amphenol XLR 5p IN/OUT connectors
    • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
    • IP rating: 20
    • Dimensions (WxHxD): 421x537x455mm
    • Weight: 17.2kg
    EclipseFresnel 2K

    FC and Tunable White with colour correction LED Fresnel, to replace 2.000 W lamp

    Eclipse ParFC






    150 W RGB + Warm White HQ and flexible LED PAR

    Eclipse ParFC is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TVs and corporate applications.
    Eclipse ParFC features a 150 W RGB + Warm White and delivers a superior white CTC with +/- tint control, red-shift (CRI > 92 and R9 > 94) and colour mixing.
    The fixture includes an extensive range of accessories including barn doors, filter frame, egg crate and a multitude of interchangeable lenses.
    Eclipse ParFC features a smooth 16-bit dimming as well as RDM control and adjustable PWM providing eye-candy.

    Main features:

    • 150 W RGB + Warm White delivering precise whites, +/-green correction (CRI > 92 and R9 > 94) and colour mixing
    • Flex lens system: 24° on-board - 65° included - 40° optional
    • Silent operation and adjustable PWM


    PHOTO GALLERY

    <strong>Eclipse</strong> ParFC
    <strong>Eclipse</strong> ParFC
    <strong>Eclipse</strong> ParFC
    <strong>Eclipse</strong> ParFC

    TECHNICAL SPECIFICATIONS

    LIGHT SOURCE
    • Source: 150W RGB + Warm White
    • CCT: 2.800 K - 10.000K
    • CRI: > 92
    • R9: > 94
    • Luminous flux: (24°) 5'720 lm - (65°) 5'130,8lm @Full
    • Lux: (24°) 2'890 lux - (65°) 490lx @3 m full
    • Lux: (24°) 1'040 lux - (65°) 176,4lx @5 m full
    • Source life expectancy: > 50.000 h
    • Other: TM-30-15RF/RG: 90 / 99 - TLCI: > 85
    OPTICS
    • Beam angle: (on board) 24° or (included) 65°
    • Field angle: (on board) 41° or (included) 100°
    • Lens diameter: 163mm / 6.42''
    • Lens type: fresnel lens
    • Additional optics: 24° lens on board - 65° lens included - 40° lens optional - egg crate optional - barndoors optional - gel frame holder included
    • Other: 12° lens not available
    COLOUR SYSTEM
    • Colour mixing: RGB + Warm White
    • CTC: CTC control through dedicated DMX channel, + / - green and magenta correction and amber shift activation by DMX
    • White presets: 2.800 K - 6.500K
    • Colour wheel: virtual colour wheel with presets
    • Macros: built-in white presets
    DYNAMIC EFFECTS
    • Static colour mode: selection of static colour
    • Manual colour mode: manual adjustment of colour
    • Auto mode: built-in programs with execution speed adjustment
    • Special features: linear crossfade from a white to any color and CTO applied on colours
    BODY
    • Hardware on-board: on board mechanics for rigging to the ceiling
    • Body: sturdy die-cast aluminium body conceived for long-time durability
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM
    • DMX channels: (theatre) 1 / 2 / 4 / 5 / 6 / 10 / 15 / 17 ch - (tour) 4 / 6 / 10 / 15channel
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: black OLED high resolution display
    • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave: for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer: linear 0 ~ 100% electronic dimmer
    • Dimmer curves: 4 different dimming curves available
    • Strobe / shutter: 1 - 30 Hz, electronic
    • Operating temperature: -10° ~ +45°
    • Flicker: flicker free operation
    • Selectable PWM: 600 ~ 25.000 Hz
    ELECTRICAL
    • Power consumption: 320 W
    • Power supply: 100-240 V – 50/60 Hz
    • Power consumption (at 230 V): 148,7W
    • Power consumption (at 120 V): 152,5W
    • Output (at 230 V): 14 units on a single power line
    • Output (at 120 V): 7 units on a single power line
    • Power factor: pF 0,99 @120 V - pF 0,94 @230 V
    PHYSICAL
    • Cooling: forced air with low noise fan
    • Sospension and fixing: any position with quick-lock omega brackets
    • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
    • Power connection: Neutrik powerCON IN/OUT connectors
    • IP rating: 20
    • Dimensions (WxHxD): 316x404x317mm / 12.44''x15.91''x12.48''
    • Weight: 5,7kg / 12.57lbs
    Eclipse ParFC

    150 W RGB + Warm White HQ and flexible LED PAR

    EclCyclorama 100

    330 W linear soft CYC and flood light with RGB + Warm White colour mixing

    EclCyclorama 100 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedent level of brightness in its category.
    The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances.
    The optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps.
    The fixture is extremely user firendly and offers a moltitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX.


    Main features:

    • RGB + Warm White colour systems allows high quality of whites (CRI 93 @3200 K) and bright colours.
    • Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage.
    • Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures
    • Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.




    TECHNICAL SPECIFICATIONS

    LIGHT SOURCE
    • Source: 330W RGB + Warm White
    • Luminous flux: (with 80°x40° filter on board) 27'342lm @full
    • Lux: @1m to wall and 1,5m height @ full (with standard filter 80°x40°) 1'240 lx - (with 40° filter) 2'610 lx - (with 10°x60° filter) 3'110 lx - (with 30°x60° filter) 2'880lx
    • CRI: 93 @ 3200K; 92,6@ 5600K
    • R9: 88 @ 3200K; 93,7@ 5600K
    • TLCI: 91 @ 5600K
    • TM30 Rf: 89,8 @ 5600K
    • TM30 Rg: 106 @ 5600K
    • Source life expectancy: > 50.000 h
    OPTICS
    • Beam angle: (HxV) 80°x40°
    • Additional optics: see available accessories
    COLOUR SYSTEM
    • Colour mixing: RGB + Warm White
    • CTC: CTC control, + / - green correction, Tungsten emulation
    • White presets: 2.800 K - 6.500K
    • Colour wheel: virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Control Resolution: 16bit Dimmer, Colours
    • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
    BODY
    • Hardware on-board: sockets for Quick-Lock Omega bracket (clamp not included)
    • Body: sturdy die-cast aluminium body
    • Body colour: black
    • Other: +/- 8° angle adjusting
    CONTROL
    • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
    • W-DMX: included, wireless solution receiver
    • RDM: RDM ready for remote monitoring and settings
    • Display: Graphic User Interface
    • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer curves: Selectable dimming modes available
    • Strobe / shutter: 1 - 30 Hz, electronic
    • Display battery: self-charging battery backup
    • Operating temperature: -10° ~ +45°
    • LED Control: flicker free frequency with adjustable PWM
    • Selectable PWM: 600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply: 100-240 V – 50/60 Hz
    • Max power consumption: 400W
    • Power factor: >0,94
    PHYSICAL
    • Cooling: heat sink without fan
    • Sospension and fixing: any position with quick-lock omega brackets
    • Signal connection: Amphenol XLR 5p IN/OUT connectors
    • Data connection: RJ45 IN/OUT
    • Power connection: Seetronic powerCON waterproof IN/OUT connectors
    • IP rating: IP20
    • Dimensions (WxHxD): 1000x119x148mm / 39.37''x4.69''x5.83''
    • Weight: 9,6kg / 21.16lbs







    EclCyclorama 100
    330 W linear soft CYC and flood light with RGB + Warm White colour mixing



    EclPanel TWC


    740W Tunable White and Colourful LED soft light with pixels and lighting effects

    EclPanel TWC, is the compact 2x1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWC comes with a full range of white reproductions, from daylight through to tungsten tones, reaching a superior light quality with high CRI, TLCI and TM-30. The EclPanel TWC allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on board pixel cinema effects. The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk. Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects. The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWC offers easy rigging and cabling making it the perfect lighting tool for every location.

    Main features:

    • 740W RGB + Warm White LED source
    • CRI > 95,5; R9 > 92; TLCI > 92
    • 8 section pixel control and built-in lighting effects for Cinema applications
    • Silent operation with multiple fan modes
    • Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)



    TECHNICAL SPECIFICATIONS

    LIGHT SOURCE
    • Source: 740W RGB + Warm White
    • Luminous flux: 34'236lm @4.000 K with MD filter
    • Lux: 404lx @5 m full
    • CRI: 94,6 @ 3200K; 95,5 @ 5600K
    • R9: 97 @ 3200K; 92 @ 5600K
    • TLCI: 92 @ 5600K
    • TM30 Rf: 92 @ 3200K; 89,5 @ 5600K
    • TM30 Rg: 103 @ 3200K; 102,4 @ 5600K
    • Source life expectancy: > 50.000 h
    OPTICS
    • Beam angle: 102°
    • Field angle: 159°
    • Lens type: Medium Density diffusion panel (interchangeable)
    • Additional optics: see available accessories
    COLOUR SYSTEM
    • Colour mixing: RGB + Warm White
    • CTC: CTC control, + / - green correction, Tungsten emulation
    • White presets: 2800 K - 10000K with 28 K resolution
    • Colour wheel: virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Control Resolution: 16bit dimmer, colours
    • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
    • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
    BODY
    • Body: sturdy die-cast aluminium body
    • Body colour: black
    CONTROL
    • Protocols: DMX512, RDM, W-DMX, rotatory knob
    • Stand Alone: selectable mode through 3 rotatory knobs
    • Pixel control: 8 section control
    • W-DMX: included, wireless solution receiver
    • RDM: RDM ready for remote monitoring and settings
    • Display: Graphic User Interface
    • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer curves: selectable dimming modes available
    • Strobe / shutter: 1 - 30 Hz, electronic
    • Display battery: self-charging battery backup
    • Operating temperature: -20° ~ +45°
    • LED Control: flicker free frequency with adjustable PWM
    • Selectable PWM: 600 ~ 36.000 Hz
    ELECTRICAL
    • Mains power supply: 100-240V - 50/60Hz
    • Low Voltage DC mains: 24-36V
    • Max power consumption: 440W
    • Power factor: >0,94
    PHYSICAL
    • Cooling: active, silent operation
    • Suspension and fixing: bracket for hanging and positioning
    • Signal connection: Amphenol XLR 5p IN/OUT connectors
    • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
    • Low Voltage DC connector: XLR 4p
    • IP rating: 20
    • Dimensions (WxHxD): 819x431x144 mm / (with PO system) 836x431x144mm / 32.24''x16.97''x5.67''
    • Weight: 15,3/()17,1kg / 33.73lbs



    <b>EclPanel</b> TWC
    <b>EclPanel</b> TWC
    <b>EclPanel</b> TWC
    <b>EclPanel</b> TWC
    <b>EclPanel</b> TWC
    <b>EclPanel</b> TWC
    <b>EclPanel</b> TWC
    <b>EclPanel</b> TWC
    <b>EclPanel</b> TWC
    <b>EclPanel</b> TWC
    <b>EclPanel</b> TWC
    <b>EclPanel</b> TWC
    <b>EclPanel</b> TWC
    <b>EclPanel</b> TWC
    EclPanel TWC
    740W Tunable White and Colourful LED soft light with pixels and lighting effects



    GALLERY LIGHTS

    Pin SpotTR



    13 W track mounted LED pinspot

    Pin SpotTR LED is a true LED replacement for a traditional Pin Spot. Featuring both the beam and output characteristics of the original, the Pin SpotTR is able to be used in all the same applications.

    Main features:

    • High power LED source and parabolic reflector delivering a tight, bright beam
    • Available in both Tungsten and Daylight colour temperature versions
    • Remove heat, dimmers and lamp changes in one go



    PHOTO GALLERY

    <strong>Pin</strong> SpotTR
    <strong>Pin</strong> SpotTR
    <strong>Pin</strong> SpotTR
    <strong>Pin</strong> SpotTR
    <strong>Pin</strong> SpotTR
    <strong>Pin</strong> SpotTR

    TECHNICAL SPECIFICATIONS

    LIGHT SOURCE
    • Source: 13W high-power white LED
    • CCT: (TU) 2.800 K - (DY) 6.100K
    • CRI: (TU) 90 - (DY) 80
    • Luminous flux: (TU) 775 lm - (DY) 978lm
    • Lux: (TU) 5'030 lux - (DY) 6'320lx @3 m
    • Source life expectancy: > 30.000 h
    OPTICS
    • Beam angle: 6°
    • Field angle: 12°
    DYNAMIC EFFECTS
    • Static colour mode: selection of static dimmer
    • Manual colour mode: manual adjustment of dimmer and strobe
    • Auto mode: built-in programs with execution speed adjustment
    BODY
    • Body: sturdy die-cast aluminium body conceived for long-time durability
    • Body colour: white
    ELECTRONICS
    • Dimmer: linear 0 ~ 100%, manual knob dimmer
    • Operating temperature: -10° ~ +45°
    ELECTRICAL
    • Power supply: 100-240 V – 50/60 Hz
    • Power consumption (at 230 V): 18,9W
    • Power consumption (at 120 V): 19,6W
    PHYSICAL
    • Cooling: passive cooling and fan-free
    • Sospension and fixing: track-adapter included for suspension and fixing
    • Power connection: moulded IP power IN connector
    • IP rating: 30
    • Dimensions (WxHxD): 209x167x238mm / 8.23''x6.57''x9.37''
    • Weight: 1,8kg / 3.97lbs




    Pin SpotTR

    13 W track mounted LED pinspot

    MniEclipse TRWD

    Track mounted mini LED profile with WDMX control

    kariotis





    MiniEclipse TRWD is a new concept of mini LED ellipsoidal based on a 28 W CREE LED. Performing a stylish design, ease of use, precise optics, sharp image projection and bright even projection all in a compact housing that is just a quarter of the size of traditional ellipsoidals. MiniEclipse TRWD comes with a built-in Wireless DMX (WDMX) module for cable-free operation, extending the possible applications of this light. Designed for applications in commercial installations, museums, restaurant, churches, educational theatres, and any other installation where size is an important factor. Available in Tungsten and Daylight versions, MiniEclipse TRWD performs even field projection, high CRI at any level of brightness and linear dimmer over the entire ramp.

    Main features:

    • Track mounted compact LED ellipsoidal with sharp optics and wireless DMX control
    • Available with warm and cool white high CRI LED sources
    • 19° - 26° - 36° - 50° lens options


    PHOTO GALLERY

    <strong>MniEclipse</strong> TRWD
    <strong>MniEclipse</strong> TRWD
    <strong>MniEclipse</strong> TRWD
    <strong>MniEclipse</strong> TRWD
    <strong>MniEclipse</strong> TRWD
    <strong>MniEclipse</strong> TRWD

    TECHNICAL SPECIFICATIONS

    LIGHT SOURCE
    • Source: 28W CREE LED
    • CCT: TU 3.100 K - DY 6.000K
    • CRI: TU 93 - DY 91
    • Luminous flux: TU 612 lm - DY 700lm
    • Lux: TU 880 lx - DY 1'037lx @3 m - 19°
    • Source life expectancy: > 50.000 h
    OPTICS
    • Beam angle: optional 19° / 26° / 36° / 50°
    • Lens type: high-quality glass lens optics
    DYNAMIC EFFECTS
    • Fixed gobos: gobo holder included in optics
    • Gobo size: E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
    • Static colour mode:
    • Manual colour mode: manual adjustment of dimmer and strobe
    • Auto mode:
    BODY
    • Body: sturdy die-cast aluminium body conceived for long-time durability
    • Body colour: white
    CONTROL
    • Protocols: W-DMX
    • DMX channels: 1 / 2 / 5channel
    • W-DMX: included, wireless solution receiver
    • Display: LCD display
    • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer: linear 0 ~ 100% electronic dimmer
    • Dimmer curves: 4 different dimming curves available
    • Strobe / shutter: 1 - 25 Hz, electronic
    • Operating temperature: -10° ~ +45°
    • Flicker: flicker free operation
    • Selectable PWM: 600 ~ 25.000 Hz
    ELECTRICAL
    • Power supply: 100-240 V – 50/60 Hz
    • Power consumption (at 230 V): 29W
    PHYSICAL
    • Cooling: passive cooling and fan-free
    • Sospension and fixing: track-adapter included for suspension and fixing
    • Power connection: moulded IP power IN connector
    • IP rating: 20
    • Dimensions (WxHxD): 112x252x226mm / 4.41''x9.92''x8.9''
    • Weight: 1,7kg / 3.75lbs
    MniEclipse TRWD

    Track mounted mini LED profile with WDMX control

    LED SCREENS

    OMEGAX39B







    OMEGAX39B is a revolutionary indoor 3.9mm LED screen rental panel, designed to offer advanced mechanical features, more creative configurations and empowered video image quality.

    Mechanical/assembly features:

    • Curve configurations both concave and convex through curving mounting plates (0-10 concave, 0-5 convex)
    • Seamless 90° corners through special 45° cutter cabinets (left & right version available)
    • Front service of magnetic replacement of the LED module for immediate service
    • Climbable, designed for a quick maintenance access
    • Hot swapping of the back panel to replace PSU & electronics
    • Assisted mounting magnets for 1 man quick setup
    • Ground stacking accessories available
    • Corner protection for safe transport in case
    • Velcro on the edges to don’t see gaps
    • Fly bars are suitable for both hanging or ground stacking application

    Components/Electronic features:

    • Premium components
    • Module with memory to store calibration database
    • Magnetic front and back LED module replacement
    • Black mask for superior contrast and rentability
    • 18 bit+ greyscale (4 times high than market average)
    • Rotation function enabled
    • New Novastar A8s receiver
    • IP powerCON IN/OUT
    • IP dataCON IN/OUT
    • CE, EMC, UL approved

    Image Quality:

    • New Novastar A8s Receiving card
    • 18 bit+ Greyscale, 4 time higher than the market average. Effectively improve greyscale performance under low brightness, showing more exquisite and more expressive images.
    • Clearview technology, by adjusting the texture, size and contrast of images in different areas to further enhance the image details.
    • Smart gamma correction: gamma correction is automatically applied according to the display brightness, achieving a better greyscale performance and providing clearer pictures.
    • Rotation enabled: rotation of panels recognized by software @ 360°
    • RCFGX restore, firmware copy, mapping MCTRLR5 sending fully supported
    Features:
    3.9mm pixel pitch indoor rental LED Screen
    Seamless 90° angles
    Curve configurations, concave and convex
    Fly bar hanging/stacking
    New Novastar A8s with 18bit+, Clearview and image rotation

    MECHANICS
    • Other specifics:
      curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting

    • Magnetic LED modules: available

    • Module size (WxH): 250x250mm

    • Panel size(WxHxD): 500x500x90.6mm

    • Vertical hanging system: built-in aliscaf clamp support
    • Cooling: Natural cooling of the peculiar chassis and to absence of fans
    • Connection: Seamless locking system
    • Curvability: 2°, 5°, 10° concave - 2°, 5° convex°
    • Body: Die-cast aluminium housing
    • Color: Black
    • Internal protection: IP30 (front and rear)
    • Panel weight: 9kg
    • Weight per square meter: 36kg
    • Hanging Panel Quantity ≤: 20
    • Compliant Standard: CE, EMC, UL
    VIDEO
    • Driver chip type: MBI 5124
    • LED source: SMD 2121 full black
    • Pixel pitch: 3.9mm
    • Panel resolution: 128x128pixels
    • Module resolution: 64x64pixels
    • Luminous flux: 1000nit
    • Contrast: 3000:1
    • Grayscale: 18 bit
    • Refresh rate ≥: 1920Hz
    • Drive Mode: 1/16 scan, constan current
    • Vertical viewing angle: 120°
    • Horizontal viewing angle: 140°
    • LED density: 65536LED/sqm
    • Dead Pixel Ratio: <0,002
    • LED avg life span: 100'000
    CONTROL
    • Receiving card type: A8S
    • Other controllers type: Rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
    • Control protocol: Novastar
    • Signal input: IP data Seetronic IN
    • Signal output: IP data Seetronic OUT
    ELECTRICAL
    • Power input/output: IPKON Seetronic IN/OUT
    • Power supply: AC 110/230V 50/60Hz
    • Max power consumption (panel): 160W
    • Avg power consumption (panel): 53W

    • Max power consumption (sqm): 640W
    • Avg power consumption (sqm): 212W
    • Standby power consumption (pannello): 20W
    • Max rated current/panel:: AC220V/0.55A
    • Max power output: 120Wmodules
    • Working temperature: -10°C/+45°C
    • Working humidity: 10~80 RH%
    OMEGAX39B

    APIX2







    In this fast-paced market, the ALPHAPIX family keep ahead of the game by consistently delivering top-quality images with the latest high-resolution indoor LED displays. The ALPHAPIX family use black-faced SMD LED for high-contrast and superb colour consistency in a robust, lightweight die-cast aluminium housing. The frame and fast interlocking system create a seamless image with minimal setup time. To deliver the perfect image, the ALPHAPIX series features a high refresh-rate, advanced greyscale properties and automatic image correction along with a viewing angle of up to 160°.

    Features:
    Rental-friendly die-cast aluminium housing
    Black-face LED for high-contrast and superb colour consistency
    Magnetic front access LED display modules for fast and easy maintenance
    Flicker-free on camera
    High-performance video reproduction at every level of brightness
    160° viewing angle
    CE and EMC certified by TUV

    MECHANICS
    • Module size (WxH): 250x250mm
    • Panel size(WxHxD): 500x500x90mm
    • Vertical hanging system: built-in aliscaf clamp support
    • Cooling: Natural cooling of the peculiar chassis and to absence of fans
    • Connection: Seamless locking system
    • Body: Die-cast aluminium housing
    • Color: Black
    • Internal protection: IP40
    • Panel weight: 8kg
    • Weight per square meter: 32kg
    • Hanging Panel Quantity ≤: 20
    • Compliant Standard: CE
    VIDEO
    • LED source: SMD 2020 high-power FC black face
    • Pixel pitch: 2.97mm
    • Panel resolution: 168x168pixels
    • Module resolution: 84x84pixels
    • Luminous flux: 1000nit
    • Grayscale: 16 bit
    • Refresh rate ≥: 3840Hz
    • Drive Mode: 1/16 scan, constan current
    • Vertical viewing angle: 160°
    • Horizontal viewing angle: 160°
    • LED density: 112'896LED/sqm
    • Dead Pixel Ratio: <0,002
    • LED avg life span: 100'000
    CONTROL
    • Control protocol: Novastar
    • Signal input:RJ45
    • Signal output: RJ45
    ELECTRICAL
    • Power input/output: PowerCON
    • Power supply: AC 110/230V 50/60Hz
    • Max power consumption (panel): 130W
    • Avg power consumption (panel): 45W
    • Max power consumption (sqm): 520W
    • Avg power consumption (sqm): 180W
    • Standby power consumption (pannello): 10.8W
    • Max rated current/panel:: AC 220V/0.6A
    • Max power output: 8modules
    • Working temperature: -10 ~ +40°C
    • Working humidity: 10 - 90%
    APIX2

    OMEGAX39C45LB






    Features:
    Seamless 90° corners through special 45° cutter cabinets.
    Curve configurations both concave and convex through curving mounting plates:
    • 0-10° Concave (10°, 5°, 2°)
    • 0-5° Convex (5°, 2°)

    MECHANICS
    • Magnetic LED modules: available
    • Other specifics: curve configurations, climbable, rear panel swapping, cornerprotection for transport, velcro strips for gapless mounting
    • Module size (WxH): 250x250mm
    • Panel size(WxHxD): 500m×500mm×90.6mm
    • Vertical hanging system: built-in aliscaf clamp support
    • Cooling: Natural cooling of the peculiar chassis and to absence of fans
    • Connection: Seamless locking system
    • Curvability: concave 2°, 5°, 10° convex - 2°, 5°
    • Body: Die-cast aluminium housing
    • Color: Black
    • Internal protection: IP30 (front and rear)
    • Panel weight: 9kg
    •
    • Hanging Panel Quantity ≤: 20
    • Compliant Standard: CE, EMC, UL
    VIDEO
    • Driver chip type:
      MBI 5124
    • LED source: SMD 2121 full black
    • Pixel pitch: 3.9mm
    • Panel resolution: 128x128pixels
    • Module resolution: 64x64pixels
    • Luminous flux: 1000nit
    • Contrast: 3000:1
    • Grayscale:   18 bit
    • Refresh rate ≥: 1920Hz
    • Drive Mode: 1/16 scan, constan current
    • Vertical viewing angle: 120°
    • Horizontal viewing angle: 140°
    • LED density: 65536LED/sqm
    • Dead Pixel Ratio: <0.002
    • LED avg life span: 100'000
    CONTROL
    • Receiving card type: A8S
    • Other controllers type: Rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
    • Control protocol: Novastar
    • Signal input: Waterproof Seetronic RJ45
    • Signal output: Waterproof Seetronic RJ45
    ELECTRICAL
    • Power input/output:  Seetronic TRUE powerCON
    • Power supply: AC 110/230V 50/60Hz
    • Max power consumption (panel): 120W
    • Avg power consumption (panel): 40W
    • Max power consumption (sqm): 480W
    • Avg power consumption (sqm): 160W
    • Standby power consumption (pannello): 20W
    • Max rated current/panel:: AC220V/0.55A
    • Max power output: 120Wmodules
    • Working temperature: -10°C/+45°C
    • Working humidity: 10~80 RH%
    OMEGAX39C45LB

    OmegaX 48T

    ORDER CODE: OMEGAX48T







    4,8 mm pixel pitch outdoor rental LED screen

    OMEGAX48T is a revolutionary outdoor 4,8 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and enhanced video image quality.

    Mechanical/Assembly features:

    • Curve configurations both concave and convex through curving mounting plates +15° / -15° onboard
    • Hot swapping of the back panel to replace PSU & electronics
    • Fast lock connections for LDMs swapping
    • Assisted mounting magnets allowing for a 1 man quick setup
    • Ground Stacking accessories available
    • Velcro on edges to avoid any gaps

    Main features:

    • 4,8 mm pixel pitch outdoor rental LED screen
    • Curve configurations, concave and convex
    • Fly bar hanging/stacking
    • New Novastar A8s with 18bit+, Clearview and image rotation







    TECHNICAL SPECIFICATIONS

    VIDEO
    • Driver chip type: MBI 5252
    • LED source: Kinglight SMD2525
    • Pixel pitch: 4.8mm / 0.19''
    • Panel resolution: 104x208pixels
    • Module resolution: 52x104pixels
    • Luminous flux: 4.000nit
    • Contrast: 3.000:1
    • Grayscale: 18 bit
    • Refresh rate ≥: 2.880Hz
    • Drive Mode: 1/13 scan, constant current
    • Vertical viewing angle: 120°
    • Horizontal viewing angle: 140°
    • LED density: 43.264LED/sqm
    • Dead Pixel Ratio: <0,002
    • LED avg life span: 100.000
    ELECTRICAL
    • Power input/output: IPKON Seetronic IN/OUT
    • Power supply: AC 110/230 V 50/60 Hz
    • Max power consumption (panel): 400W
    • Avg power consumption (panel): 133W
    • Max power consumption (sqm): 800W
    • Avg power consumption (sqm): 266W
    • Standby power consumption (pannello): 35W
    • Max rated current/panel:: AC 220 V / 1,6 A
    • Working temperature: -20°C / +50°C
    • Working humidity: 10~90 RH%
    CONTROL
    • Receiving card type: A8S
    • Other controllers type: rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
    • Control protocol: Novastar
    • Signal input: IP data Seetronic IN
    • Signal output: IP data Seetronic OUT
    MECHANICS
    • Other specifics: curve configurations, rear panel swapping, velcro strips for gapless mounting
    • Magnetic LED modules: not magnetic, removible by joint
    • Module size (WxH): 250x500mm / 9.84''x19.69''
    • Panel size(WxHxD): 500×1.000×76mm / 19.69''
    • Vertical hanging system: built-in aliscaf clamp support
    • Cooling: natural cooling of the peculiar chassis and to absence of fans
    • Connection: seamless locking system
    • Curvability: mechanics on board, -15° to +15°, can be adjusted by the unit of 2.5°
    • Body: die-cast aluminium housing
    • Color: black
    • IP rating: IP65 (front and rear)
    • Panel weight: 12kg / 26.46lbs
    • Weight per square meter: 24kg / 52.91lbs
    • Hanging Panel Quantity ≤: 10
    • Compliant Standard: CE, EMC, UL





    OMEGAX 48T



    PRICELISTS


    CATALOGUES

    Catalogue
    GALLERY
    Tags:
    © 2026 Your Company. All Rights Reserved.
