S-SERIES
S-SERIES
The Adamson S-Series solves a problem that most rental houses face, which is how to get consistent coverage and excellent power out of a sub-compact system. Traditional 2-way line array designs cannot provide even horizontal coverage in the mid-range, which is why we designed our patent-pending Controlled Summation Technology. By eliminating the interference associated with multiple-source summation at the pass-band, we’ve allowed the end-user to provide seamless coverage to their clients, without sacrificing power and flexibility. The 2 Kevlar Neodymium drivers ensure that the S-Series full-range cabinets will exceed headroom expectations, and our design philosophy allows for a larger radiating cone surface area than comparable competitors’ products in a similar enclosure footprint.

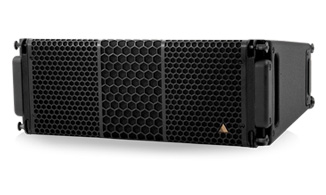

The S7 is a 2-way, full range line array cabinet containing 2x ND7-LM16 Kevlar Neodymium drivers (2x 16 Ω) and an NH3-8 1.4” exit compression driver (8 Ω). The critically optimized sound chamber produces a slightly curved wavefront with a nominal dispersion pattern of 100° x 12.5° (H x V). The chamber’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field. Patented Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems.
The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with two Speakon™ NL4 connectors. The SlideLock rigging system ensures easy yet secure setup and teardown.
The S7 is suited to a wide variety of applications. Its full range capability (80 Hz) at reasonable levels qualifies for applications where sub is not required. Increased vertical coverage (12.5°) enables the S7 to cover theaters and small arenas with reasonable speaker quantity. Other target applications include dance clubs, corporate events and contemporary churches.
SPECIFICATIONS
| Frequency Range (+/-3 dB) | 80 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 100° x 12.5° |
| Maximum Peak SPL** | 138 dB |
| Components LF | 2x ND7-LM16 7" Kevlar Neodymium Driver |
| Components HF | 1x NH3-8 3" Diaphragm / 1.4" Exit Compression Driver |
| Nominal Impedance LF | 2x 16Ω (8Ω) |
| Nominal Impedance HF | 8Ω |
| Power Handling (AES / Peak) LF | 500 / 2000 W |
| Power Handling (AES / Peak) HF | 110 / 440 W |
| Rigging |
Slidelock Rigging System |
| Connection | 2x Speakon™ NL4 |
| Height Front (mm / in) | 203 / 8 |
| Height Back (mm / in) | 122 / 4.8 |
| Width (mm / in) | 527 / 20.75 |
| Depth (mm / in) | 411 / 16.2 |
| Weight (kg / lbs) | 15.9 / 35 |
| Supported Processing | Lake |
**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
ACCESSORIES
| S7 & S118 Support Frame (930-0025) | Support frame for S7 & S118 enclosures | |
 |
S-Series Extended Beam (930-0021) | Extension beam for larger angles and frame linking |
 |
S7 Dolly (938-0022) | Transports up to 4x S7 enclosures |
 |
S7 Flight Case Single 3up (901-0004) | Flight Case for 3x S7 stacked on an S7 Dolly (part no. 938-0022) |
 |
S7 Flight Case Single 4up (901-0005) | Flight Case for 4x S7 stacked on an S7 Dolly (part no. 938-0022) |
DOWNLOADS
| S7 Spec Sheet | One page spec sheet for the S7 | 529.57 KB |
| Lake LoadLibrary V4.2 | Adamson LoadLibrary for Lake Controller 6.X | 28.58 MB |
| Adamson Amplification Chart V1.0 | Displays the maximum amount of Adamson loudspeakers that can be used with approved amplifiers. | 231.47 KB |
CONFIGURATIONS
 |
 |
 |
S7

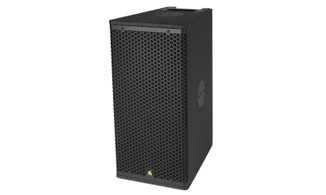

The S7p is a 2-way, full range point source cabinet containing 2x ND7-LM16 Low-Mid drivers (2x 16 Ω) and an NH3-8 1.4” exit compression driver (8 Ω). The prolate spheroidal waveguides produce a nominal dispersion pattern of 70° x 40° (H x V), rotatable by 90° increments.. The design of the waveguide ensures equal tonal balance when moving outside of the intended coverage pattern, delivering natural sound with no diffraction or lobing. The S7p can be operated in passive or bi-amped mode, which is user-defined through a switch on the jackplate.
The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors. A disc rigging system is placed on four faces of the enclosure, with a multitude of accessories allowing the enclosure to be deployed seamlessly in a variety of applications.
The S7p is suited to a wide variety of applications. Its full range capability (80 Hz) at reasonable levels qualifies for applications where sub is not required. Target applications include performing arts centers, live performance venues, sports venues, conference centers and houses of worship. The uniform voicing across the entire S-Series and E-Series makes the S7p the natural choice for front fill applications.
SPECIFICATIONS
| Frequency Range (+/-3 dB) | 80 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 70° x 40° |
| Maximum Peak SPL** | 136.5 dB (135 dB in passive) |
| Components LF | 2x ND7-LM16 7" Kevlar Neodymium Driver |
| Components HF | 1x NH3-8 3" Diaphragm / 1.4" Exit Compression Driver |
| Nominal Impedance LF | 2x 16Ω (8Ω) |
| Nominal Impedance HF | 8Ω |
| Nominal Impedance Passive | 6Ω |
| Power Handling (AES / Peak) LF | 500 / 2000 W |
| Power Handling (AES / Peak) HF | 110 / 440 W |
| Power Handling (AES / Peak) Passive | 500 / 2000 W |
| Rigging |
Integrated Rigging System |
| Connection | 2x Speakon™ NL4 |
| Height Front (mm / in) | 527 / 20.75 |
| Width (mm / in) | 249 / 9.8 |
| Depth (mm / in) | 356 / 14 |
| Weight (kg / lbs) | 15 / 33 |
| Supported Processing | Lake |
**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
DOWNLOADS
| S7p Spec Sheet | One page spec sheet for the S7p | 448.15 KB |
CONFIGURATIONS
 |
S7p

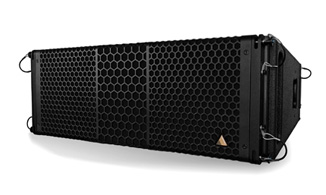

The S10 is a 2-way, full range line array cabinet containing 2x ND10-LM Kevlar Neodymium drivers (2x 16 Ω) and an NH4TA2 1.5” exit compression driver (8 Ω). The critically optimized sound chamber produces a slightly curved wavefront with a nominal dispersion pattern of 110° x 10° (H x V). The chamber’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field. Patent-pending Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems.
The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with two Speakon™ NL8 connectors. The rigging system incorporates the best aspects of previous advancements in our new SlideLock rigging technology.
The S10 is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. Increased vertical coverage (10°) enables the S10 to cover theaters, arenas and stadiums with reasonable speaker quantity. Other target applications include dance clubs, medium size festivals, corporate events and contemporary churches.
SPECIFICATIONS
| Frequency Range (+/-3 dB) | 60 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 110° x 10° |
| Maximum Peak SPL** | 141.3 dB |
| Components LF | 2x ND10-LM 10" Kevlar Neodymium Driver |
| Components HF | 1x NH4TA2 4" Diaphragm / 1.5" Exit Compression Driver |
| Nominal Impedance LF | 2x 16Ω(8Ω) |
| Nominal Impedance HF | 8Ω |
| Power Handling (AES / Peak) LF | 2x 350 / 2x 1400 W |
| Power Handling (AES / Peak) HF | 160 / 640 W |
| Rigging |
Slidelock Rigging System |
| Connection | 2x Speakon™ NL8 |
| Height Front (mm / in) | 265 / 10.4 |
| Height Back (mm / in) | 178 / 7 |
| Width (mm / in) | 737 / 29 |
| Depth (mm / in) | 526 / 20.7 |
| Weight (kg / lbs) | 27 / 60 |
| Supported Processing | Lake |
**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
ACCESSORIES
 |
S-Series Support Frame (930-0020) | Support frame for S-Series enclosures |
 |
S-Series Extended Beam (930-0021) | Extension beam for larger angles and frame linking |
 |
S-Series Moving Point Extended Beam (930-0022) | Adjustable beam with moving pick point for exact angles when using a single pick point |
 |
S10 Dolly (938-0019) | Transports up to 4x S10 enclosures |
 |
Dolly Stacking Legs (938-0014) | The Dolly Stacking Legs allow for your E-Series or S-Series system to be ground stacked without leaving the Dolly. As the Dolly naturally sits in a downward angle, the stacking legs allow you to elevate your stack to an angle which perfectly suits your particular application. |
 |
S10 Cover 4up (907-0026) | Cover for 4x S10 stacked on an S10 Dolly (part no. 938-0019) |
 |
S10 Underhang (931-0010) | Suspends S10 enclosures from E-Series 3-way enclosures |
 |
S10 Flight Case (901-0003) | Road-ready Flight Case for 4x S10. 31.25" x 25" x 50" |
DOWNLOADS
| S10 Spec Sheet | One page spec sheet for the S10 | 447.72 KB |
| S-Series Configuration Brochure | A document outlining the factory recommended configurations for the S-Series | 7.82 MB |
| E-Rack Brochure | Product Brochure for Adamson's unified rack solution, the E-Rack | 1.99 MB |
| S-Series User Manual | User manual outlining proper use and safety precautions for the S-Series | 5.29 MB |
| Lake LoadLibrary V4.2 | Adamson LoadLibrary for Lake Controller 6.X | 28.58 MB |
| 3D CAD Drawings | 3D CAD Drawings of all S-Series enclosures | 20.73 MB |
| Adamson Amplification Chart V1.0 | Displays the maximum amount of Adamson loudspeakers that can be used with approved amplifiers. | 231.47 KB |
CONFIGURATIONS
 |
 |
 |
S10

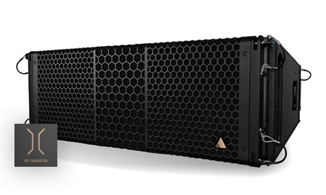

The S10n is a 2-way, full range line array cabinet containing 2x ND10-LM Kevlar Neodymium drivers (2x 16 Ω) and an NH4TA2 1.5” exit compression driver (8 Ω). The critically optimized waveguide produces a slightly curved wavefront with a nominal dispersion pattern of 80° x 10° (H x V). The waveguide’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field. Patent-pending Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems.
The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with two Speakon™ NL8 connectors. The rigging system incorporates the best aspects of previous advancements in our new SlideLock rigging technology.
The S10n is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. Increased vertical coverage (10°) enables the S10 to cover theaters, arenas and stadiums with reasonable speaker quantity. The S10n's narrower horizontal pattern allows for not only increased usability in reflective spaces, but also increases the long-throw capability of an S-Series package. Other target applications include dance clubs, medium size festivals, corporate events and contemporary churches.
SPECIFICATIONS
| Frequency Range (+/-3 dB) | 60 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 80° x 10° |
| Maximum Peak SPL** | 141.3 dB |
| Components LF | 2x ND10-LM 10" Kevlar Neodymium Driver |
| Components HF | 1x NH4TA2 4" Diaphragm / 1.5" Exit Compression Driver |
| Nominal Impedance LF | 8 Ω |
| Nominal Impedance HF | 8 Ω |
| Power Handling (AES / Peak) LF | 2x 350 / 2x 1400 W |
| Power Handling (AES / Peak) HF | 160 / 640 W |
| Rigging |
Slidelock Rigging System |
| Connection | 2x Speakon™ NL8 |
| Height Front (mm / in) | 265 / 10.4 |
| Height Back (mm / in) | 178 / 7 |
| Width (mm / in) | 737 / 29 |
| Depth (mm / in) | 526 / 20.7 |
| Weight (kg / lbs) | 27 / 60 |
| Supported Processing | Lake |
**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
ACCESSORIES
 |
S-Series Support Frame (930-0020) | Support frame for S-Series enclosures |
 |
S-Series Extended Beam (930-0021) | Extension beam for larger angles and frame linking |
 |
S10 Underhang (931-0010) | Suspends S10 enclosures from E-Series 3-way enclosures |
 |
S10 Dolly (938-0019) | Transports up to 4x S10 enclosures |
 |
Dolly Stacking Legs (938-0014) | Set of 4 legs to support one dolly |
 |
S10 Cover 4up (907-0026) | Cover for 4x S10 stacked on an S10 Dolly (part no. 938-0019) |
 |
S10 Flight Case (901-0003) | Road-ready Flight Case for 4x S10. 31.25" x 25" x 50" |
DOWNLOADS
| S10n Spec Sheet | One page spec sheet for the S10n | 424.5 KB |
| S-Series Configuration Brochure | A document outlining the factory recommended configurations for the S-Series | 7.82 MB |
| E-Rack Brochure | Product Brochure for Adamson's unified rack solution, the E-Rack | 1.99 MB |
| Lake LoadLibrary V4.2 | Adamson LoadLibrary for Lake Controller 6.X | 28.58 MB |
| Adamson Amplification Chart V1.0 | Displays the maximum amount of Adamson loudspeakers that can be used with approved amplifiers. | 231.47 KB |
CONFIGURATIONS
 |
 |
 |
S10n
The S10p is a 2-way, full range point source cabinet containing 2x ND10-LM Low-Mid drivers (2x 16 Ω) and an NH3-8 1.4” exit compression driver (8 Ω). The prolate spheroidal waveguides produce a nominal dispersion pattern of 70° x 40° (H x V), rotatable by 90° increments.. The design of the waveguide ensures equal tonal balance when moving outside of the intended coverage pattern, delivering natural sound with no diffraction or lobing.
SPECIFICATIONS
| Frequency Range (+/-3 dB) | 60 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 70° x 40° |
| Maximum Peak SPL** | 139 dB |
| Components LF | 2x ND10-LM 10" Kevlar Neodymium Driver |
| Components HF | 1x NH3-8 3" Diaphragm / 1.4" Exit Compression Driver |
| Nominal Impedance LF | 2x 16Ω (8Ω) |
| Nominal Impedance HF | 8Ω |
| Power Handling (AES / Peak) LF | 700 / 2800 W |
| Power Handling (AES / Peak) HF | 110 / 440 W |
| Rigging |
Integrated Rigging System |
| Connection | 2x Speakon™ NL4 |
| Height Front (mm / in) | 737 / 29 |
| Width (mm / in) | 326 / 12.8 |
| Depth (mm / in) | 442 / 17.4 |
| Weight (kg / lbs) | 21 / 46.3 |
| Supported Processing | Lake |
**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
S10P

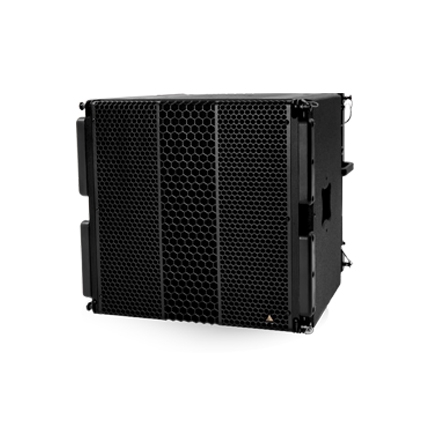

The S118 Subwoofer is the companion subwoofer to the S7. The enclosure is loaded with a light weight, long excursion, 18” ND18-S Kevlar Neodymium driver utilizing Adamson’s Advanced Cone Architecture and a 4” voice coil for exceptional power handling. It is mounted in an ultra-efficient front-loaded enclosure, designed to reproduce clean, musical low frequency information.
The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with Speakon™ NL4 connectors. The integrated rigging system matches the rigging for the S7 and can be flown in the same array without the need for an adapter frame.
SPECIFICATIONS
| Frequency Range (+/-3 dB) | 35 Hz - 100 Hz |
| Maximum Peak SPL** | 133 dB |
| Components LF | ND18-S 18" Kevlar Neodymium Driver |
| Nominal Impedance LF | 8 Ω |
| Power Handling (AES / Peak) LF | 500 / 2000 W |
| Rigging |
Slidelock Rigging System |
| Connection | 4x Speakon™ NL4: 2x Front (Pins 2 +/-), 2x Rear (Pins 1 +/-) |
| Height Front (mm / in) | 508 / 20 |
| Width (mm / in) | 527 / 20.75 |
| Depth (mm / in) | 495 / 19.5 |
| Weight (kg / lbs) | 39 / 85 |
| Supported Processing | Lake |
**12 dB crest factor pink noise at 1m, half space, using specified processing and amplification
ACCESSORIES
 |
S7 & S118 Support Frame (930-0025) | Support frame for S7 & S118 enclosures |
 |
S-Series Extended Beam (930-0021) | Extension beam for larger angles and frame linking |
 |
S118 Dolly (938-0023) | Dolly to transport 2x S118 enclosures |
 |
 |
 |
S118

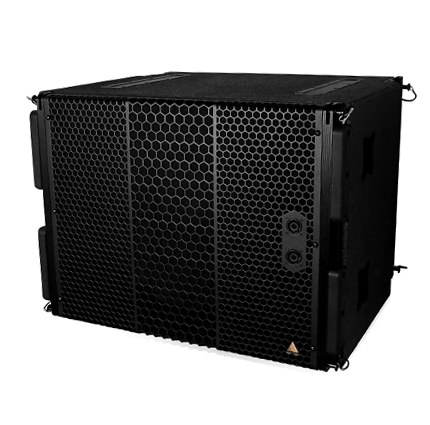

The S119 Subwoofer is the companion subwoofer to the S10. The enclosure is loaded with a light weight, long excursion, 19” ND19 Kevlar Neodymium driver utilizing Adamson’s Advanced Cone Architecture and a 5” voice coil for exceptional power handling. It is mounted in an ultra-efficient front-loaded enclosure, designed to reproduce clean, musical low frequency information.
The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with Speakon™ NL8 connectors. The integrated rigging system matches the rigging for the S10 and can be flown or stacked in the same array without the need for an adapter frame.
| Frequency Range (+/-3 dB) | 30 Hz - 80 Hz |
| Maximum Peak SPL** | 138 dB |
| Components LF | ND19 19" Kevlar Neodymium Driver |
| Nominal Impedance LF | 8 Ω |
| Power Handling (AES / Peak) LF | 1200 / 4800 W |
| Rigging |
Integrated Rigging System |
| Connection | 5x Speakon™ NL8: 2x Front (Pins 2 +/-), 2x Rear Parallel (Pins 1 +/-) and 1x Rear Output (Pin 2 to 1) |
| Height Front (mm / in) | 543.5 / 21.4 |
| Width (mm / in) | 742 / 29.2 |
| Depth (mm / in) | 630 / 24.8 |
| Weight (kg / lbs) | 46 / 102 |
| Supported Processing | Lake |
**12 dB crest factor pink noise at 1m, half space, using specified processing and amplification
ACCESSORIES
 |
S-Series Support Frame (930-0020) | Support frame for S-Series enclosures |
 |
S-Series Extended Beam (930-0021) | Extension beam for larger angles and frame linking |
 |
S119 Dolly (938-0021) | Dolly to transport S119 enclosures |
 |
S119 2-High Cover (907-0027) | 2-High cover for S119 enclosures on dolly |
 |
 |
 |
