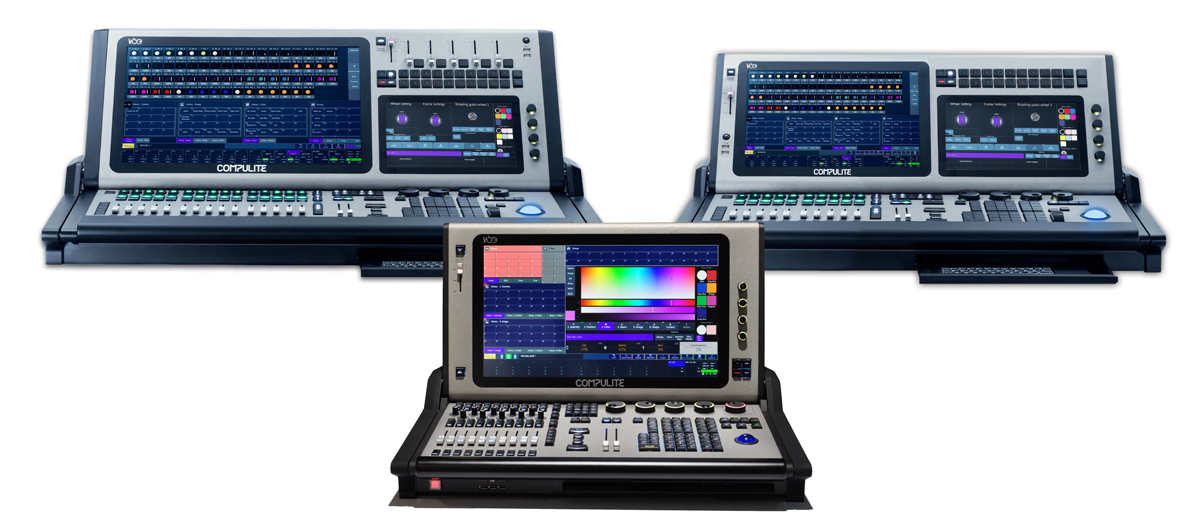

The Vibe Family
Vibe
Η οικογένεια Vibe είναι μια προηγμένη σειρά έξυπνων και ευέλικτων κονσολών ελέγχου φωτισμού. Αυτές οι κονσόλες χρησιμοποιούν τεχνολογία οθόνης πολλαπλής αφής και παρέχουν στους χειριστές φωτισμού έναν σχεδόν απεριόριστο αριθμό κουμπιών touch controller και fader. Χρησιμοποιώντας πληκτρολόγιο και μηχανοκίνητα faders για γρήγορη επιλογή και έλεγχο εξαρτημάτων, επιτρέπουν γρήγορη πρόσβαση και είναι πολύ ισχυρά.
Σχεδιασμένη χρησιμοποιώντας τις πιο πρόσφατες διαθέσιμες τεχνολογίες, η οικογένεια Vibe είναι βελτιστοποιημένη για ταχύτητα γραφικών και συνδεσιμότητα δικτύου, παρέχοντας στους επαγγελματίες φωτισμού όλα τα εργαλεία που χρειάζονται για να πραγματοποιήσουν ακόμη και τη μεγαλύτερη παραγωγή.
- 2 External DisplayPorts 1.4 (can split to 8 FHD Monitors)
- Multi-color illuminated keypad
- 8 RGB Backlit high-resolution wheels, 4 general purpose, 4 interactive. 1 vertical wheel for intensity control
- A backlit XY trackball with 3 dedicate multi-use buttons
- Dedicated A/B theatre style cross faders
- Fully customizable and swipable drag and drop Workspace layouts
- Virtually unlimited multi-touch controllers
- Multi-angle control surface
- Full tracking backup
- 2D topo and graphical on screen editing
- Up to 32-bit parameters and virtual parameters
- RDM support
- Comprehensive effects engine accessed via graphical editor with multiple primitives, patterns and parameters (*)
- Up to 256 DMX universes directly from console via network ports
- PC and Smartphone software
- Multi language support
- More than 30,000 Fixtures provided by AtlaBase Ltd
- 131,072 Parameters (256 universes)
- Over 9,000 Playbacks: 30 pages of 100 Slider controllers, 30 pages of 100 Q-Key controllers and 30 pages of 100 Auxiliary Key controllers
- Unlimited # of Cues / Functions / Curves: Q-Lists, Scenes, Sub-masters, Sets, Groups, Presets, Macros, Matrix, Snaps and Timelines
- 8 x DMX 512 Inputs / outputs, XLR5
- 2 x External DisplayPort 1.4
- 4 x Gigabit Ethernet ports RJ45
- 4 x USB 3.0, 2 x USB 2.0 ports
- SMPTE, Combo XLR
- MIDI in/thru, 5-pin DIN
- 2 x dimmable RGB LED desk light, XLR3
- AC input, powerCON
- Power switch
- 4th Generation intel Quad Core i7
- Windows 7-10 Operat ing System
- SSD for OS storage
- HDD, Data storage
- 16GB RAM
- Dedicated Graphics NVidia Processor Unit (GPU) card
- Show backup to internal HDD, USB
- Compulite VCs, sACN, Art-Net & RDM protocols
- 8 physical DMX ports expandable to 256 universes via DMX over Ethernet gateways
- Exceptionally stable SQL database for data storage
- Familiar touch commands and gestures
- Customizable workspaces with drag and drop, re-size and swipe
- Drag and drop patching
- nteractive on-screen toolbars with pop-up dialogues
- On screen interactive editing
- 2D interactive topo view in live view displays
- Interactive parameter selection and controls
Vibe
Vibe is a totally fresh concept in lighting control. We wiped the slate clean and developed a system to cater to the performances and complex needs of today’s lighting professionals.
Vibe utilizes the latest Operating System software & computer hardware with Multi-touch screen technologies to provide a totally flexible and dynamic customizable control surface.
- Built-in 21.5” plus 11.6” Full HD multi-touch screens
- Length: 977mm (38.4in)
- Width: 436mm (17.1in)
- Height (closed): 155mm (6.1in)
- Height (opened): 458mm (18in)
- Weight: 26.7kg (60.0lb)
- 15 individually paging motorized faders
- 35 individually paging multi-use controller buttons
- 5 general purpose faders
Vibe M
Vibe M is the ultimate compact console. It is just as powerful as the original Vibe, but is about 15 cm narrower, 7 cm shorter and 7 kg lighter, therefore it is easier to carry and maneuver.
Vibe M combines innovation with convenience, it utilizes the latest Operating System software & computer hardware with Multi-touch screen technologies to provide a totally flexible and dynamic customizable control surface.
- Built-in 15.6” plus 11.6” Full HD multi-touch screens
- Length: 882mm (34.7in)
- Width: 436mm (17.1in)
- Height (closed): 155mm (6.1in)
- Height (opened): 396mm (15.5in)
- Weight: 22.8kg (50.2lb)
- 10 individually paging motorized faders
- 30 individually paging multi-use controller buttons
Vibey
Vibey is the ultimate compact console. It is just as powerful as the original Vibe, but its only about 72cm wide, 47cm high and 19.5kg weight, therefore it is easier to carry and maneuver.
The Vibey combines innovation with convenience, it utilizes the latest Operating System software & computer hardware with Multi-touch screen technologies to provide a totally flexible and dynamic customizable control surface.
- Built-in 21.5” Full HD multi-touch screen
- Width: 720mm (28.3in)
- Depth: 445mm (17.5in)
- Height (closed): 166mm (6.5in)
- Height (opened): 470mm (18.5in)
- Weight: 19.5kg (43.0lb)
- 10 individually paging motorized faders
- 10 individually paging multi-use encoders
- 20 individually paging multi-use controller buttons
