INSTRUMENT MICROPHONES

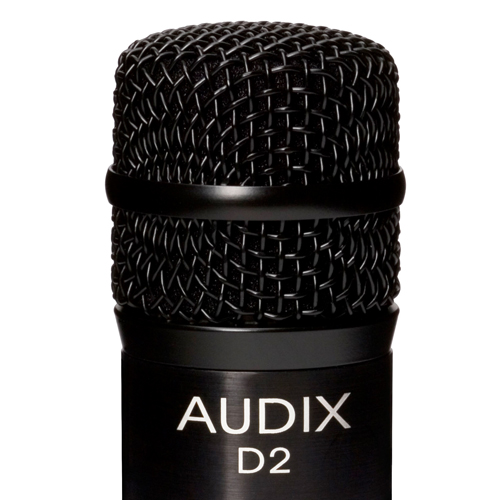

D2
PROFESSIONAL DYNAMIC INSTRUMENT MICROPHONE
The D2 dynamic instrument microphone is used for stage, studio, and broadcast applications. It is designed with a hypercardioid pickup pattern for isolation and feedback control and is equipped with a VLM™ diaphragm for natural, accurate sound reproduction.
The D2 is an excellent choice for miking instruments with a percussive nature such as rack toms, congas, saxophones, guitar cabinets, and brass. Transformerless design, low impedance, and balanced output insure that the D2 hypercardioid instrument microphone will perform interference-free.
| Transducer Type | Dynamic |
| Frequency Response | 68 Hz – 18 kHz |
| Polar Pattern | Hypercardioid |
| Output Impedance | 280 ohms |
| Sensitivity | 1.2 mV / Pa @ 1k |
| Capsule Technology | VLM Type B |
| Off-Axis Rejection | >30 dB |
| Maximum SPL | ≥144 dB |
| Power Requirements | None |
| Connector | 3-pin XLRm |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
| Materials / Finish | Black Hard Coat |
| Weight | 128 g / 4.5 oz |
| Length | 100 mm / 3.9 in |
Professional Dynamic Instrument Microphone

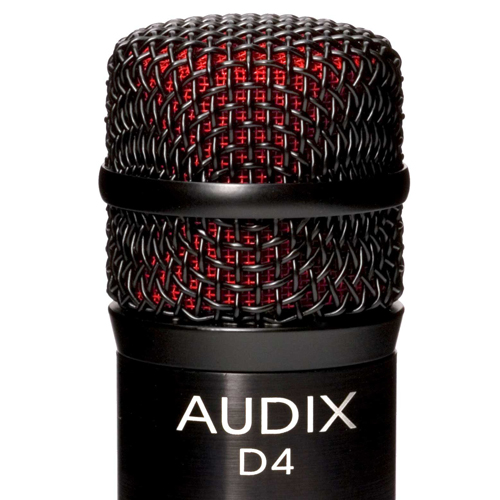

D4
Dynamic Instrument, Microphone
Professional Dynamic Instrument Microphone
Description
With a wide frequency response of 40 Hz - 18 kHz and the ability to handle SPLs in excess of 144 dB, the D4 dynamic instrument microphone is an excellent choice for miking instruments requiring precise, low frequency reproduction such as large rack toms, floor toms, cajon, djembe, tympani, leslie bottom, bass flute, saxophone and baritone saxophone, trombone, acoustic bass, bass cabinets and small kick drums.
The D4 is lightweight, compact and easy to position. Used for stage, studio and broadcast applications, the D4 dynamic instrument microphone is designed with a hypercardioid pickup pattern for isolation and feedback control. The D4 hypercardioid is also equipped with a VLM™ diaphragm for natural accurate sound reproduction.
Applications
- Live stage or recording
- Large rack tom, floor tom, small kick drum
- Cajon, djembe, tympani, leslie bottom
- Bass flute, sax and baritone sax, trombone
- Acoustic bass, bass cabs
Please see the spec sheet under the specifications tab for more information about this product.
Specifications
| Type | Dynamic |
|---|---|
| Polar Pattern | Hypercardioid |
| Frequency Response | 40Hz - 18kHz |
| Impedance | 280 ohms |
| Sensitivity | 1.4 mV/Pa @1k |
Professional Dynamic Instrument Microphone

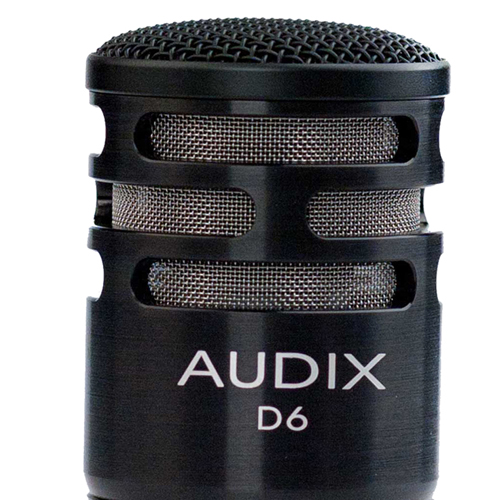

D6
Dynamic Instrument, Microphone
Professional Dynamic Instrument Microphone
Description
The D6 dynamic instrument microphone is used for stage, studio and broadcast applications. Designed with a cardioid pickup pattern for isolation and feedback control, the D6 drum microphone is equipped with a VLM™ diaphragm for natural, accurate sound reproduction.
Lightweight, compact and easy to position, the D6 cardioid microphone is an excellent choice for miking instruments requiring extended low frequency reproduction such as kick drums, large toms and bass cabinets. The D6's transformer less design, low impedance and balanced output allow for interference-free performance.
Designed, assembled, and tested by Audix in the USA.
Applications
- Live stage, recording
- Kick drum
- Floor tom
- Bass cabinets
- Leslie bottom
Please see the spec sheet under the specifications tab for more information about this product.
Specifications
| Type | Dynamic |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Response | 30Hz - 15kHz |
| Impedance | 280 ohms |
| Sensitivity | .8 mV/Pa @ 80Hz |
What's In The Box
-
- 1 x D6 Instrument Microphone
- 1 x DCLIP Microphone Clip
- 1 x P1 Carrying Pouch
D6
Professional Dynamic Instrument Microphone

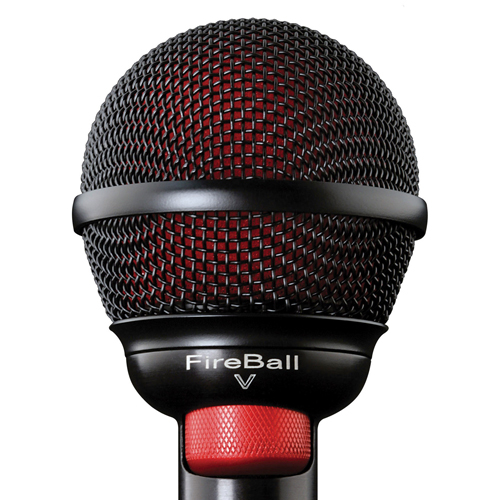

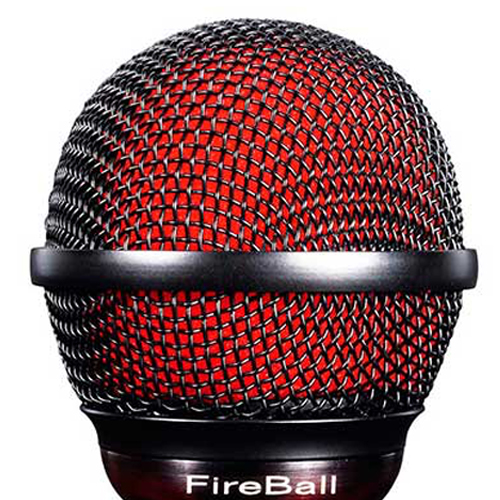

FireBall
Dynamic Instrument, Microphone
Ultra-small Professional Dynamic Instrument Microphone
Description
The FireBall™ dynamic instrument microphone is designed for harmonicas (both diatonic and chromatic) and beatbox. Clear, accurate and capable of handling SPLs in excess of 140 dB without distortion, the FireBall™ is ideally suited for both live stage and studio recording applications.
The FireBall™ microphone has a smooth, uniform frequency response of 50 Hz - 16 kHz, and a cardioid pickup pattern for isolation and feedback control. It is lightweight, compact and comfortable to hold. The FireBall™ is manufactured with a precision machined aluminum body, steel mesh grill and unique three stage marbled anodized finish.
Because the FireBall™ cardioid instrument microphone is a low impedance microphone, when using with a guitar amplifier, a quality, low-high impedance transformer (see T50k) is required.
Designed, machined, assembled and test by Audix in the USA.
Applications
- Live Stage, studio
- Harmonica
- Vocals
- Beatbox
- Percussion
- Saxophone, trumpet, trombone
- Flute
- Accordian
Please see the spec sheet under the specifications tab for more information about this product.
Specifications
| Type | Dynamic |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Response | 50 Hz - 16 kHz |
| Impedance | 280 ohms |
| Sensitivity | 1.5 mV/Pa @1k |
Ultra-small Professional Dynamic Instrument Microphone
All-purpose professional dynamic instrument microphone
Affordable dynamic instrument microphone
Ultra-small professional dynamic instrument mic
ADX20i
Wireless Component, Condenser Instrument, Microphone
Miniature Condenser Clip-on Microphone
-
The ADX20i miniature condenser microphone is applicable for professional stage and studio applications. This microphone is primarily used for miking most reed and brass instruments.
The ADX20i has a uniformly controlled cardioid polar pattern, which provides excellent isolation and feedback control on stage with natural sound reproduction at very close distances.
The ADX20i condenser instrument microphone is lightweight, compact and simple to use. Included with the ADX20i is a gooseneck clip with spring tension for easy mounting to the bell of an instrument.
- Saxophone
- Trombone, trumpet
- Room ambience, recording
- Accordion
Specifications
| Type | Pre-polarized Condenser |
|---|---|
| Polar Pattern | Cardioid, Hypercardioid |
| Frequency Response | 40 Hz - 20 kHz |
| Impedance | 250 Ohms |
| Sensitivity | 6 mV/Pa @1k (C) / 5.6 mV/Pa @1k (HC) |
What's In The Box
- 1 x ADX20i Instrument Microphone
- 1 x MC20i Microphone Clip
- 1 x WS20 External Windscreen
- 1 x P1 Carrying Pouch
ADX10FLP
Condenser Instrument, Microphone
Miniaturized Condenser Flute Microphone
-
-
Type Pre-polarized Condenser Polar Pattern Cardioid Frequency Response 50 Hz - 18 kHz Impedance 250 Ohms Sensitivity 4.5 mV/Pa @1k
-
What's In The Box
1 x ADX10FLP Instrument Microphone
1 x MCFLUTE Microphone Clip
1 x WS10 External Windscreen
1 x P1 Carrying Pouch
1 x APS911 Phantom Power Adapter
-
