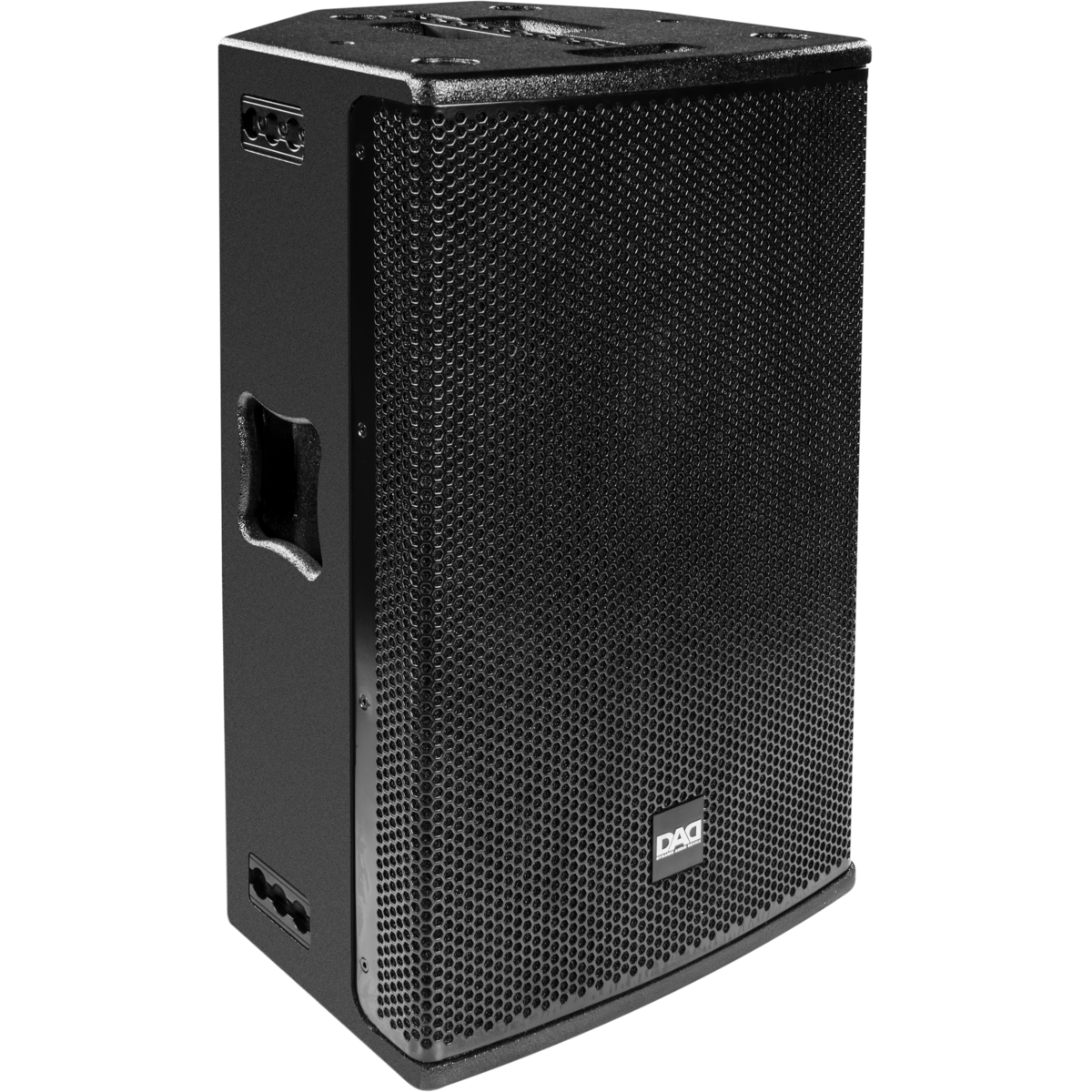

2-way passive loudspeaker, 500W AES, 129dB SPLComponents:
12” Nd woofer with 3” voice coil
HF compression driver with 1.4” throat, titanium diaphragm and 3” voice coil
80°x50° (HxV) constant-directivity waveguide
Impedance: 8Ohm
Recommended amplifier: up to 1000W RMS/8Ohm
Sensitivity: 99dB @1W/1m
Frequency response: 80-18000Hz (±3dB)
Crossover frequency: 1200Hz
External HPF recommended range: 90Hz to 150Hz
Passive filter with HF driver protection
Connections:
Neutrik NL-4 Speakon in/out
Cabinet construction:
Asymmetrical trapezoidal profile, dual-angle (30°/50°) enclosure
18mm multilayer birch plywood
Fast-locking ”fly-track” suspension system or M8 eye bolt over 6 anchoring points
35mm pole-mount adapter for stands
Applications:
Excellent clarity in reproduction of voice and music for live and recorded performances
For sound installations in environments requiring dynamics and high sound pressure
Installed into theatres and congress halls owing to excellent acoustic performance
Mid-high unit in multi-amplified sound systems combined with DAD subwoofer
Stage-monitor
