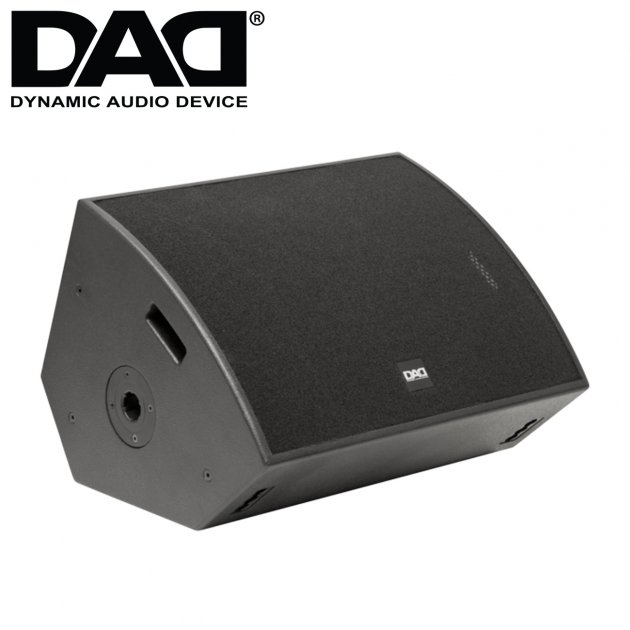

Passive stage-monitor, coaxial design, 2-way 300W AES, 128dB SPLComponents:
15” woofer with 3” voice coil
HF Compression driver with 1” throat, titanium diaphragm and 1.7” voice coil
90°x90° (HxV) conical waveguide
Impedance: 8Ohm
Recommended amplifier: up to 600W RMS/8Ohm
Sensitivity: 98dB @1W/1m
Frequency response: 55-18000Hz (±3dB)
Passive filter with HF driver protection
Connections:
4-pole Speakon in/out
Cabinet construction:
Trapezoidal profile, 40° enclosure angle
15mm multilayer birch plywood
Fast-locking ”fly-track” suspension system or M8 eye bolt over 6 anchoring points
35mm pole-mount adapter for stands
Applications:
Stage monitor
Reproduction of voice and music for live and recorded performances
For sound installations in environments requiring dynamics and high sound pressure
Installed into theatres and congress halls
Mid-high unit in multi-amplified sound systems combined with DAD subwoofer
