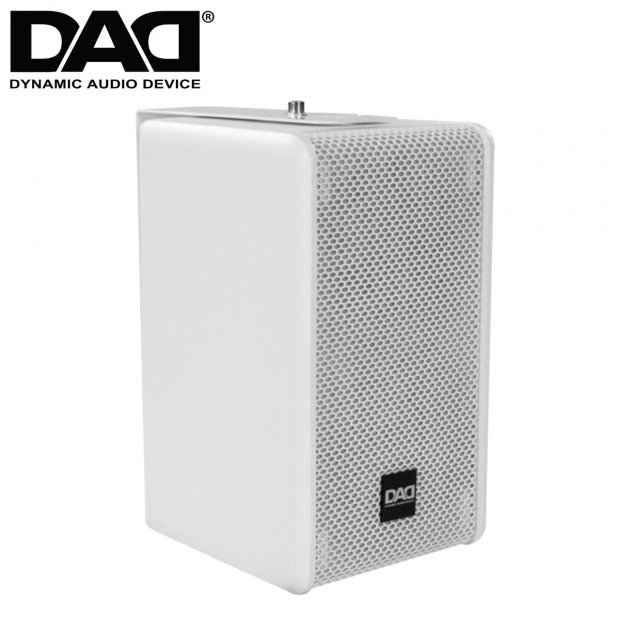

2-way passive loudspeaker, 120W AES, 114dB SPLComponents:
5” woofer with 1.5” voice coil, HF Compression driver with 1” throat, titanium diaphragm and 1” voice coil
140°x140° (HxV) constant-directivity rotatable waveguide
Impedance: 16Ohm
Recommended amplifier: up to 480W RMS/16Ohm
Sensitivity: 89dB @1W/1m
Frequency response: 75-18000Hz (±3dB)
Xover frequency: 2300Hz
Suggest HPF range: 140/180Hz
Passive filter with driver protection
Connections:
4-pole in/out – terminal clamp
Cabinet construction:
Symmetrical trapezoidal profile with 7.5° angle
12mm plywood cabinet
Quick suspension system with U-bracket (included) – arrangement for articulated bracket (optional).
Applications:
Reproduction of voice and music for live and recorded performances
For sound installations in small to medium-sized environments
Mid-high unit in multi-amplified sound systems combined with ARK208SA/ARK208SP DAD subwoofers
For theatre, conference hall and club
Stage-monitor
