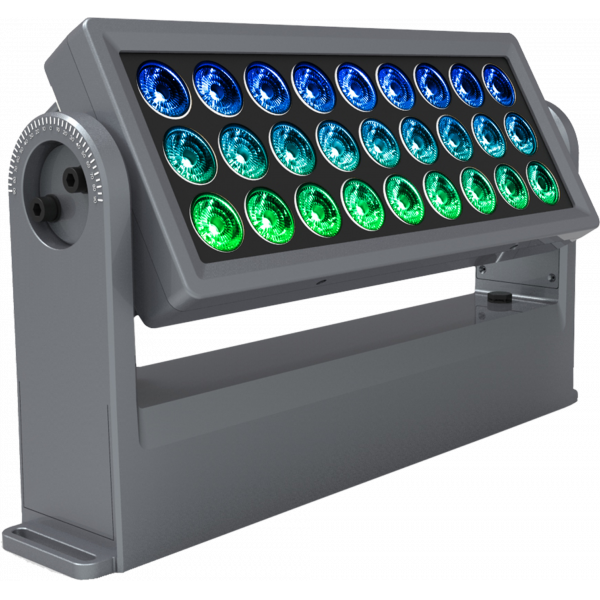

ARCPOD27Q
ARCPOD27Q is a compact high-power outdoor wash light featuring an outstanding brightness of 11,480 lumens. Equipped with 27x10W RGBW full colour LEDs, delivering superior colour mixing. The slim sizing, as well as the wide range of available optics through the magnet, makes the ARCPOD27Q an incredibly flexible and versatile device for large outdoor applications
Features:
27x10W RGBW/FC LEDs delivering 11'480 lumens
Compact form factor and fan-free
- Source: 27X10W RGBW/FC LEDs
- CT: 5960K
- CRI: 71.8
- Luminous flux: @full 11480lm
- Lux: 15° @full 11276lux @3m
- Lux: 15° @full 4060lux @5m
- Source life expectancy: >100.000 h
- Beam angle: 15°
- Field angle: 28°
- Lens diameter: 36mm
- Lens type: honeycomb gapless plano convex optics
- Additional optics: 10°, 25°, 45°
- Other: barn doors not included
- Colour mixing: RGBW/FC
- CTC: CTC control through independent DMX channel
- Colour wheel: virtual colour wheel with presets
- Macros: several pre-build macros with adjustable speed
- Static colour mode: selection of static colour
- Manual colour mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
- Tilt angle: +/- 90 ° Manual°
- Body: sturdy die-cast aluminium body conceived for long-time durability
- Body colour: grey
- Protocols: DMX512, RDM
- DMX channels: 5, 7, 10, 13channel
- Pixel control: 3 horizontal individual sections controlled
- RDM: RDM ready for fixture remote monitor and settings
- Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
- Master/Slave: for synchronized operation of more units linked in a chain
- Dimmer: linear 0~100% electronic dimmer
- Operating temperature: -20° ~ +50°
- Flicker: flicker free operation
- Selectable PWM: 600~25K Hz
- Power supply: 100-240V – 50/60Hz
- Power consumption (at 230V): 268W
- Power consumption (at 120V): 275W
- Output (at 230V):9 units on a single power line
- Output (at 120V): 5 units on a single power line
- Power factor: 0,994
- Cooling: natural cooling of the peculiar chassis and to absence of fans
- Sospension and fixing: hanging bracket for floor positioning with
- Signal connection: IP IN/OUT DMX connector
- Power connection: IP IN/OUT power connector
- IP rating: 65
- Dimensions (WxHxD): 454x153x268.5mm
- Weight: 9kg
ARCPOD27Q

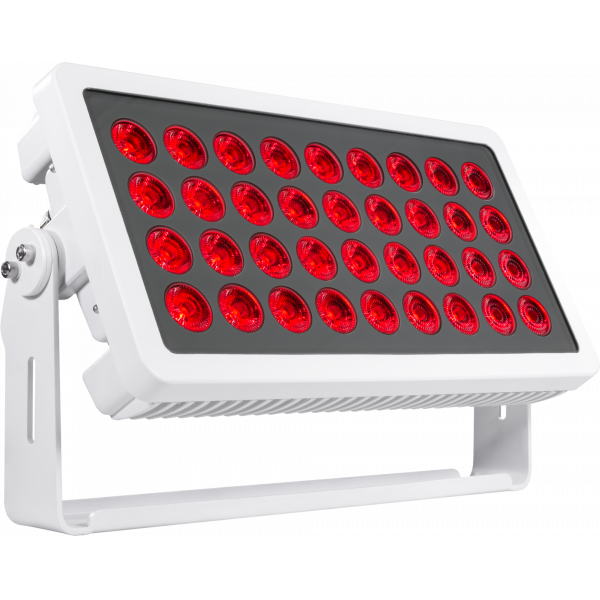

ARCPOD36
ARCPOD36 is a wash light with a 36x8W RGBW/FC LED source designed for outdoor installations where a high performing projector with reliable brightness and chromatic precision is required. The rectangular shape design and the super-slim profile allow the ARCPOD36 to be easily integrated into any architectonic context whilst also integrate with outdoor (IP 65) projects and installations due to the construction of chassis in die-cast aluminium and tempered glass with no fans for ventilation. ARCPOD36 is a compact projector capable of lighting large spaces, both as a stage wash in temporary events and for architectural lighting projects
Features:
4D (RGBW) colour mixing
DMX virtual colour wheel
CTC
235W power consumption and LED source expected life of over 50.000 hours
User menu and settings are accessed through a 4 button touch-sensitive LED interface while 3 different DMX modes (4-10 channel) available
- Source: 36 x 8W RGBW/FC LEDs
- Luminous flux: @full 7769lm
- Lux: 15° @full 9429lux @3m
- Lux: 15° @full 3395lux @5m
- Source life expectancy: >50.000 h
- Beam angle: 15°
- Field angle: 22°
- Additional optics:25° / 45° (optional)
- Colour mixing: RGBW/FC
- White presets: 3200K~10000K
- Colour wheel: virtual colour wheel with presets
- Macros: several pre-build macros with adjustable speed
- Static colour mode: selection of static colour
- Manual colour mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
- Body: sturdy die-cast aluminium body conceived for long-time durability
- Body colour: white
- Protocols: DMX512
- DMX channels: 4 / 6 / 10channel
- Display: touch-sensitive LED displayFirmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
- Master/Slave: for synchronized operation of more units linked in a chain
- Dimmer: linear 0~100% electronic dimmer
- Dimmer curves:4 different dimming curves available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -20° ~ +50°
- Flicker: flicker free operation
- Power supply:100-240V 50/60Hz
- Power consumption (at 230V): 235W
- Output (at 230V): 6 units on a single power line
- Cooling:pressure and temperature balance through GORE membrane vents
- Sospension and fixing: hanging bracket suitable for safe hanging and positioning
- Adaptors: XLR and 16A adaptors included
- Signal connection: IP connectors
- Power connection: IP connector
- IP rating: 65
- Dimensions (WxHxD): 579x338x115mm
- Weight: 16.66kg
ARCPOD36

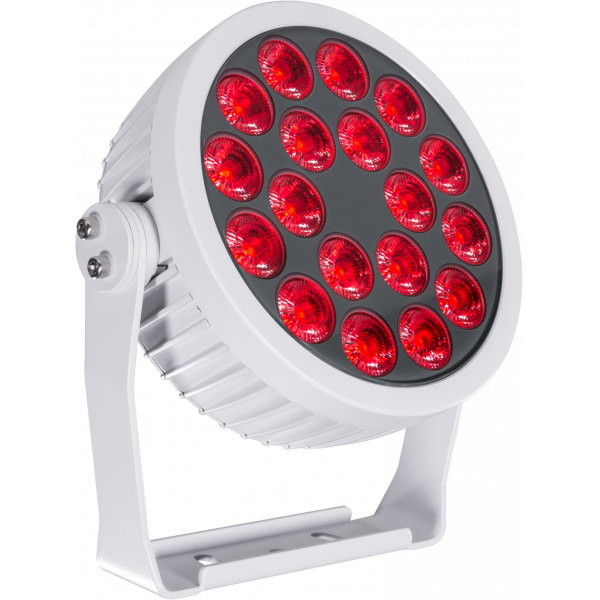

ARCPAR18
ARCPAR18 is a wash light with 18x8W RGBW/FC LED source engineered for outdoor installations where a high-performance projector with superior brightness and chromatic precision is required. The round shape design and the super-slim profile allows the ARCPAR18 to be easily integrated into any architectonic design whether it be indoor or outdoor (IP 65) due to the construction of chassis in die-cast aluminium and tempered glass with no ventilation fans. ARCPAR18 is a compact projector capable of lighting large spaces both as a stage wash in temporary events and for architectural lighting projects and installations
Features:
4D (RGBW) colour mixing
DMX virtual colour wheel
CTC
Low 128W power consumption and LED source expected life of over 50000 hours
User menu and settings are accessed through a 4 button touch-sensitive LED interface while 3 different DMX modes (4-10 channel) available
- Source: 18x8W RGBW/FC LEDs
- Luminous flux: @full 3831lm
- Lux: 15° @full 4367lux @3m
- Lux: 15° @full 1572lux @5m
- Source life expectancy: >50.000 h
- Beam angle: 15°
- Field angle: 22°
- Additional optics: 25° / 45° (optional)
- Colour mixing: RGBW/FC
- White presets: 3200K~10000K
- Colour wheel: virtual colour wheel with presets
- Macros: several pre-build macros with adjustable speed
- Static colour mode: selection of static colour
- Manual colour mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
- Body: sturdy die-cast aluminium body conceived for long-time durability
- Body colour: white
- Protocols: DMX512
- DMX channels: 4 / 6 / 10channel
- Display: touch-sensitive LED display
- Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
- Master/Slave: for synchronized operation of more units linked in a chain
- Dimmer: Linear 0~100% electronic dimmer
- Dimmer curves: 4 different dimming curves available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -20° ~ +50°
- Flicker: flicker free operation
- Power supply: 100-240V – 50/60Hz
- Power consumption (at 230V): 128W
- Output (at 230V): 12 units on a single power line
- Cooling: pressure and temperature balance through GORE membrane vents
- Sospension and fixing hanging bracket suitable for safe hanging and positioning
- Adaptors: XLR and 16A adaptors included
- Signal connection: IP connectors
- Power connection: IP connector
- IP rating: 65
- Dimensions (WxHxD): 337x317x131mm
- Weight: 6.5kg
ARCPAR18
Catalogue

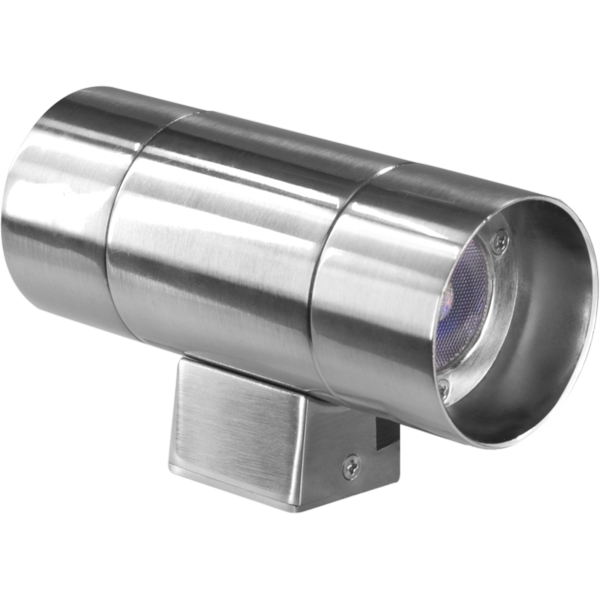

ARCTORCH3TRI
ARCTORCH3TRI is a LED projector based on 3W RGB/FC technology, conceived to create astonishing colour shows in wall mounted uni-directional applications. The external design is made in a stainless steel housing to grant a pleasant aspect in all architectural environments.
Features:
1x3W RGB/FC CREE LED
Beam angle: 20°
IP rating: 2X
- Source: 1x3WW CREE RGB/FC LED
- Luminous flux: @full 98lm
- Lux: 16° @full 175lux @2m
- Source life expectancy: >50.000 h
- Beam angle: 16°
- Colour mixing: CREE RGB/FC
- White presets: 3200 K~10000K
- Colour wheel: virtual colour wheel with presets
- Macros: several pre-build macros with adjustable speed
- Static colour mode: selection of static colour
- Manual colour mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
- Body: steel
- Body colour: silver
- Protocols: DMX512
- Dimmer: linear 0~100% electronic dimmer
- Dimmer curves: different dimming curves available
- Operating temperature: -20° ~ +45°
- Power supply: 100-240V – 50/60Hz
- Power consumption (at 230V): 3,2W
- Cooling: natural cooling of the peculiar chassis and to absence of fans
- Signal connection: IP connectors
- Power connection: IP connector
- IP rating: 2X
- Dimensions (WxHxD): 129x78x55mmWeight: 0.4kg
ARCTORCH3TRI

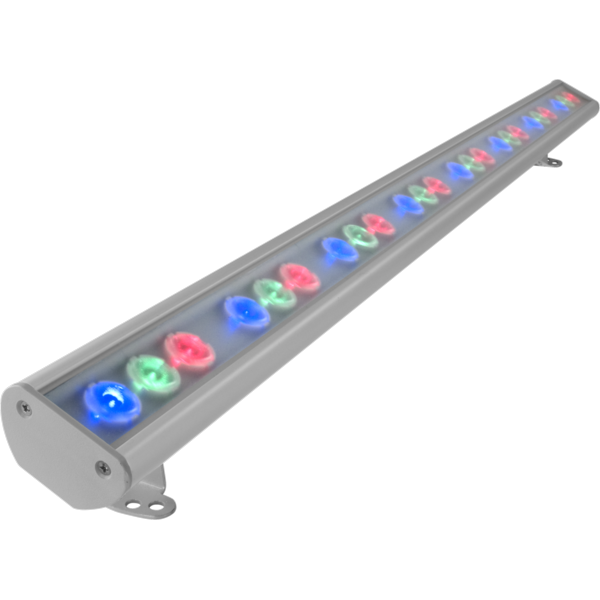

ARCBAR24RGB
ARCBAR24RGB is a linear LED wash equipped with 24 RGB LED, 1W each. Its special optical group (30°) and structure have been expressly developed for application as wall-washer or to be installed in very thin spaces. RGB colour synthesis allows generating a limitless chromatic range, a precious tool to create soft colour sets.
Features:
24x1W RGB LEDs
Beam angle: 30°
IP rating: 2X
- Source: 24x1W RGB LEDs
- Lux: @full 541lux @2m
- Source life expectancy:>50.000 h
- Beam angle: 30°
- Additional optics: 15° - 25x6°
- Colour mixing: CREE RGB
- White presets:3200 K~10000K
- Colour wheel: virtual colour wheel with presets
- Static colour mode: selection of static colour
- Manual colour mode: manual adjustment of colour
- Body: sturdy die-cast aluminium body conceived for long-time durability
- Body colour: grey
- Protocols: DMX512
- Pixel control: 1 section control
- Dimmer: linear 0~100% electronic dimmer
- Dimmer curves: different dimming curves available
- Operating temperature: -20° ~ +40°
- Power supply: 100-240V – 50/60Hz
- Power consumption (at 230V): 24W
- Cooling: natural cooling of the peculiar chassis and to absence of fans
- Signal connection: IP connectors
- Power connection: IP connector
- IP rating: 2X
- Dimensions (WxHxD): 800x57x75mm
- Weight: 1.6kg
ARCBAR24RGB

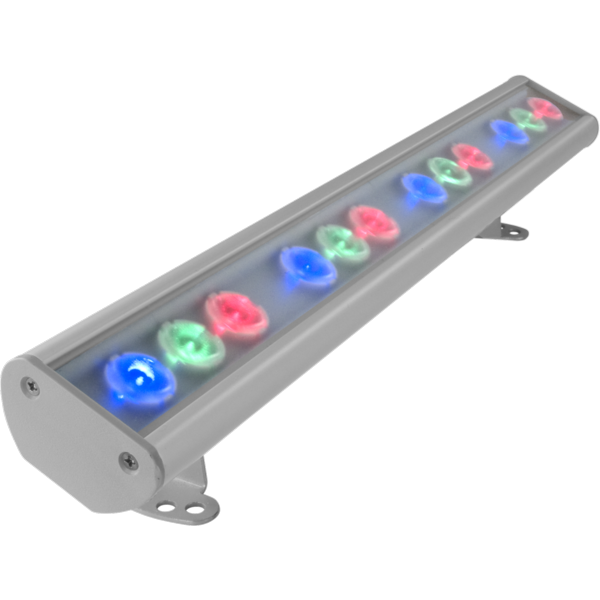

ARCBAR12RGB
ARCBAR12RGB is a linear LED wash equipped with 12 RGB LED, 1W each. Its special optical group (30°) and structure have been developed on purpose for application as wall-washer or to be installed in very thin spaces. RGB colour synthesis allows generating a limitless chromatic range, a precious tool to create soft colour sets.
Features:
12x1W RGB LEDs
Beam angle: 30°
IP rating: 2X
- Source:12x1WRGB LEDs
- Luminous flux: lm
- Lux: @full 206lux @2m
- Source life expectancy: >50.000 h
- Beam angle: 30°
- Additional optics: 15° - 25x6°
- Other: Special frost filter applied on the frontal transparent cover
- Colour mixing: CREE RGB
- White presets: 3200 K~10000K
- Static colour mode: selection of static colour
- Manual colour mode: manual adjustment of colour
- Body: sturdy aluminum profile
- Body colour: grey
- Protocols: DMX512
- Pixel control: 1 section control
- Dimmer: linear 0~100% electronic dimmer
- Dimmer curves: different dimming curves available
- Operating temperature: -20° ~ +40°
- Power consumption (at 230V): 12,9W
- Cooling: natural cooling of the peculiar chassis and to absence of fans
- Signal connection: IP connectors
- Power connection: IP connector
- IP rating: 2X
- Dimensions (WxHxD): 400x57x75mm
- Weight battery: 0.8kg
ARCBAR12RGB
Catalogue

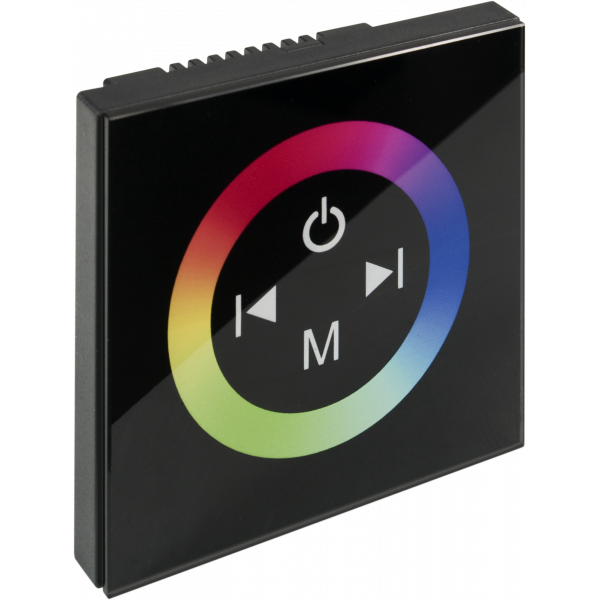

LSTCRGB
Touch sensitive control interface for RGB LEDSTRIP.
Features:
Static colours, auto programs, auto speed, dimmer
Output: 4A/ch (3 channels) = 144W (12V)
Operating temperature: -20/60°
Dimensions: 86x86x37 mm
Supply voltage: DC12-24V
Weight: 0.128 kg
LSTCRGB
