TRABES

Aluminum Trusses

 22CM

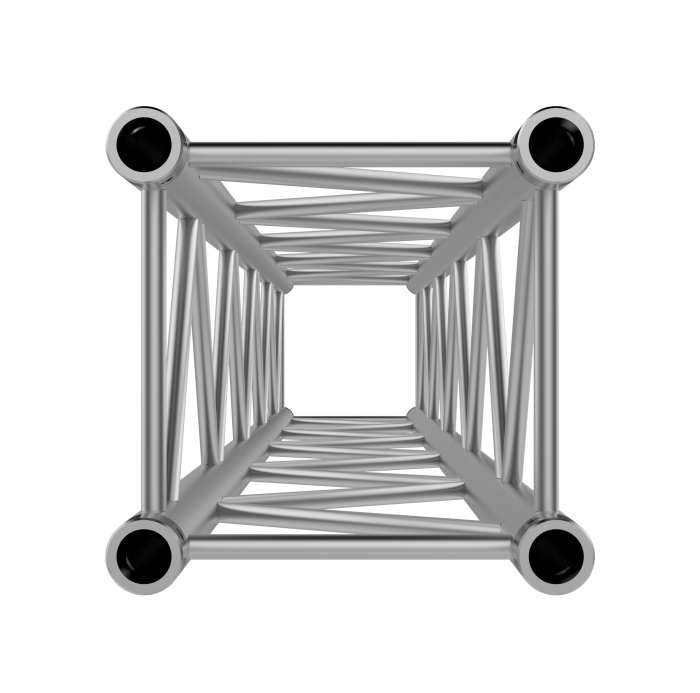

Code: B22Q

Aluminium square truss with bushing,  22 cm side
Technical information
Main Tubes Ø 35x2 mm
Diagonasl Ø 12x1.5 mm

Connection system
Aluminum spigots and conical pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, showrooms and small structures

CodeDescription

B22Q 050Aluminium square truss with bushing  22 cm side - L 50 cm
B22Q 100Aluminium square truss with bushing  22 cm side - L 100 cm
B22Q 150Aluminium square truss with bushing  22 cm side - L 150 cm
B22Q 200Aluminium square truss with bushing  22 cm side - L 200 cm
B22Q 250Aluminium square truss with bushing  22 cm side-  L 250 cm
B22Q 300Aluminium square truss with bushing  22 cm side - L 300 cm
B22Q 350Aluminium square truss with bushing  22 cm side - L 350 cm
B22Q 400Aluminium square truss with bushing  22 cm side - L 400 cm











30CM

Code: B30L

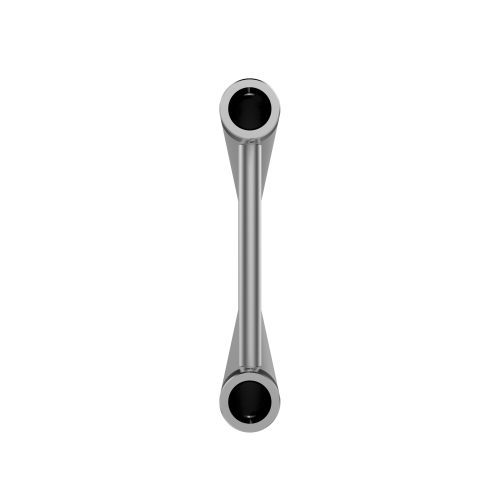

Aluminium flat truss with bushing,  29 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibition stands, TV studios, entertainment facilities

Available in HEAVY DUTY version with
Main tubes Ø 50x3 mm
Diagonals Ø 20x2 mm

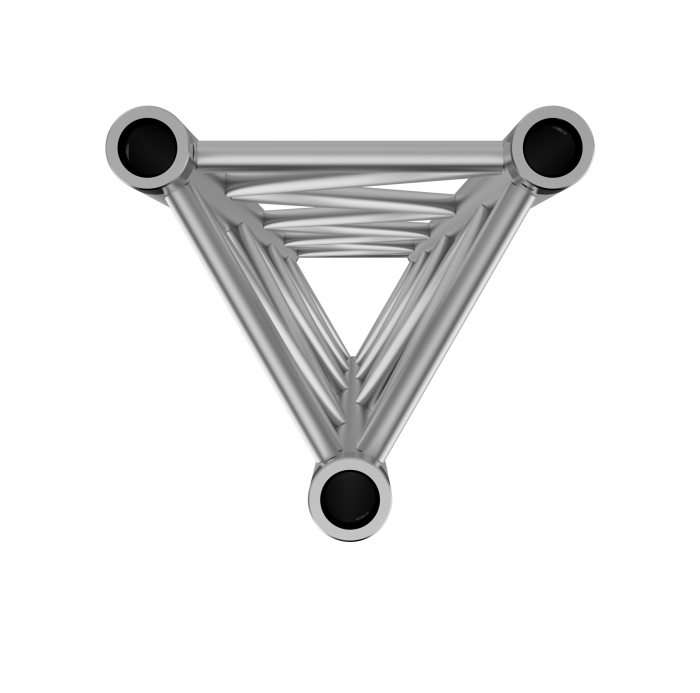

Code: B30T

Aluminium triangular truss with bushing,  29 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibition stands, TV studios, entertainment facilities

Available in HEAVY DUTY version with
Main tubes Ø 50x3 mm
Diagonals Ø 20x2 mm




Code: B30Q

Aluminium square truss with bushing,  29 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibition stands, TV studios, entertainment facilities

Available in HEAVY DUTY version with
Main tubes Ø 50x3 mm
Diagonals Ø 20x2 mm

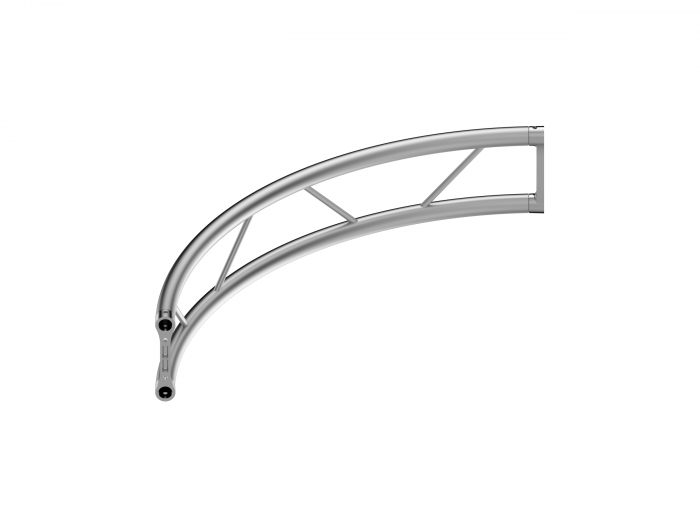

Code: B30LC

Aluminium flat circle with bushing, 29 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, shops and small structures

Available in HEAVY DUTY version with
Main tubes Ø 50x3 mm
Diagonals Ø 20x2 mm

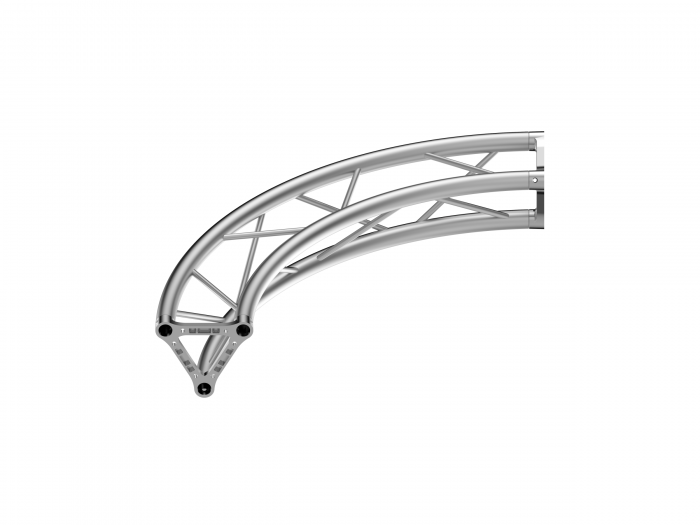

Code: B30TC

Aluminium triangular circle with bushing, 29 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R" pins

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, shops and small structures

Available in HEAVY DUTY version with
Main tubes Ø 50x3 mm
Diagonals Ø 20x2 mm



Code: B30QC

Aluminium square circle with bushing, 29 cm side
Technical information
Main Tubes Ø 50x2 mm
Diagonals Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R" pins

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, shops and small structures

Available in HEAVY DUTY version with
Main tubes Ø 50x3 mm
Diagonals Ø 20x2 mm




40CM

Code: B40L

Aluminium flat truss with bushing, 40 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibition stands, TV studios, entertainment facilities



Code: B40Q

Aluminium square truss with bushing, 40 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibition stands, TV studios, entertainment facilities





Code: B40I

Aluminium isosceles truss with bushing, 29x40 cm side
Technical information
Main tubes Ø 50x3mm
Diagonals Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibition stands, TV studios, entertainment facilities




Code: B40QHD

Aluminium Heavy Duty square truss with bushing, 40 cm side
Technical information
Main tubes Ø 50x3 mm
Diagonals Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibition stands, TV studios, entertainment facilities




Code: B40R

Aluminium rectangular truss with bushing, 29x40 cm side
Technical information
Main tubes Ø 50x3 mm
Diagonals Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibition stands, TV studios, entertainment facilities


Code: B40QC

Aluminium square circle with bushing, 40 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibition stands, TV studios, entertainment facilities

Available in HEAVY DUTY version with
Main tubes Ø 50x3 mm
Diagonals Ø 20x2 mm


BUSHING

25CM



Code: P25L

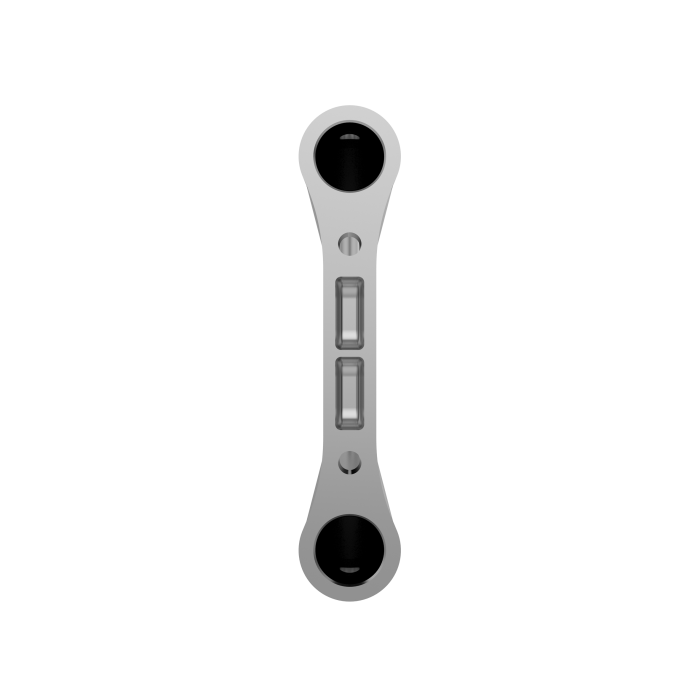

Aluminium flat truss with end plate, 25 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 12x1.5 mm

Double connection system
Aluminum spigots and conical pins with "R" clips, or M8 bolt and nuts

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibitions, TV studios

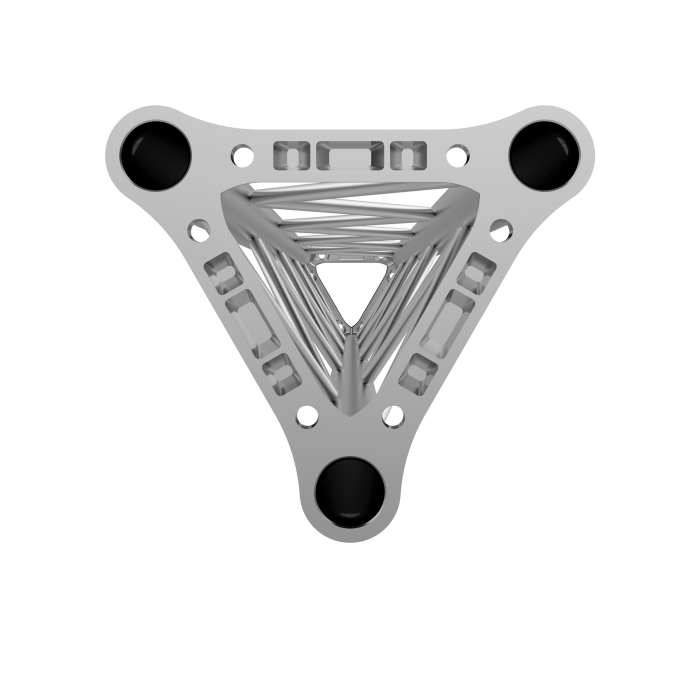

Code: P25T

Aluminium triangular truss with end plate, 25 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 12x1.5 mm

Double connection system
Aluminum spigots and conical pins with "R" clips, or M8 bolt and nuts

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibitions, TV studios

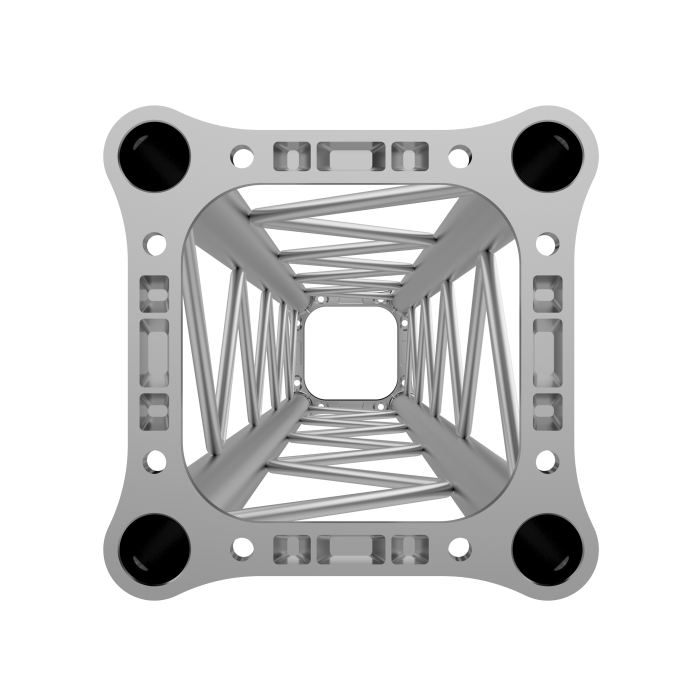

Code: P25Q

Aluminium square truss with end plate, 25 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 12x1.5 mm

Double connection system
Aluminum spigots and conical pins with "R" clips, or M8 bolt and nuts

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibitions, TV studios





Code: P25LC

Aluminium flate circle with end plate, 25 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 12x1.5 mm

Double connection system
Aluminum spigots and conical pins with "R" clips, or M8 bolt and nuts

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibitions, TV studios






Code: P25TC

Aluminium triangular circle with end plate, 25 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 12x1.5 mm

Double connetion system
Aluminum spigots and conical pins with "R" clips, or M8 bolt and nuts

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibitions, TV studios







Code: P25QC

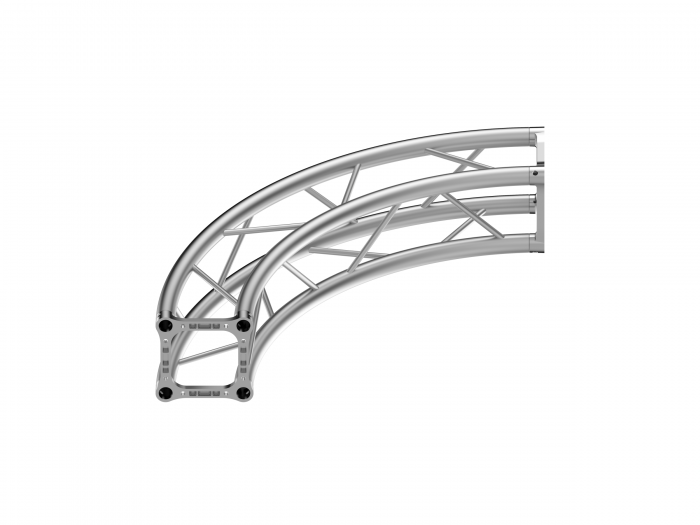

Aluminium square circle with end plate, 25 cm side
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 12x1.5 mm

Double connection system
Aluminum spigots and conical pins with "R" clips, or M8 bolt and nuts

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibitions, TV studios

END PLATE

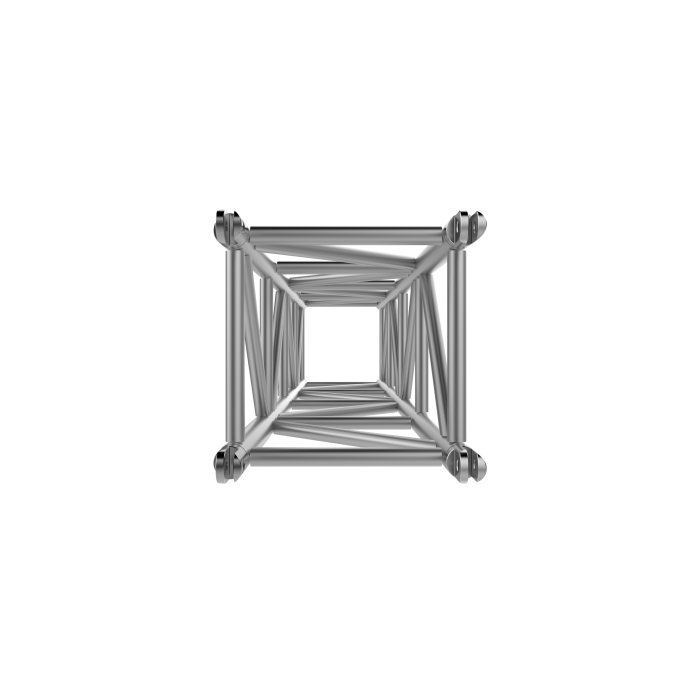

Code: F40Q

Aluminium square truss with fork connection, 40 cm side
Technical information
Main tubes Ø 50x4 mm
Diagonals Ø 30x3 mm

Connection system
Fork connection, pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for installations where high load capacities are required

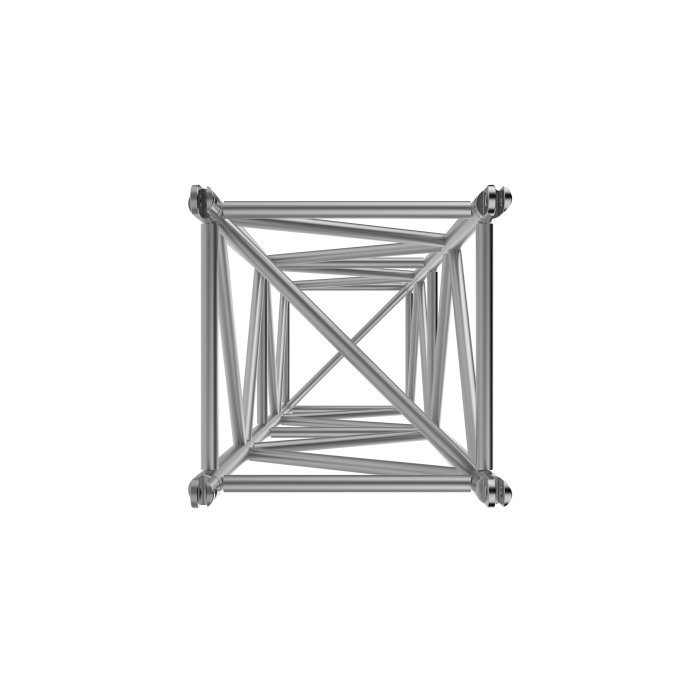

Code: F52Q

Aluminium square truss with fork connection, 52 cm side
Technical information
Main tubes Ø 50x4 mm
Diagonals Ø 30x3 mm

Connection system
Fork connection, pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for installations where high load capacities are required




Code: F60R

Aluminium rectangular truss with fork connection, 60x40 cm side
Technical information
Main tubes Ø 50x4 mm
Diagonals Ø 30x3 mm

Connection system
Fork connection, pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for installations where high load capacities are required

FORK

Aluminum Towers

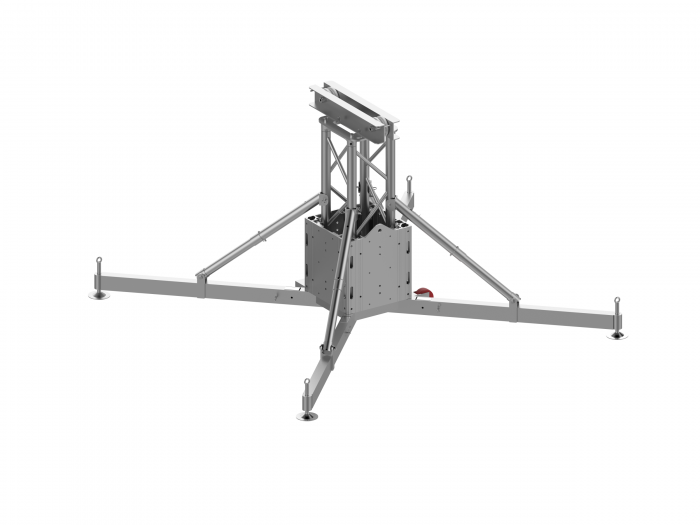

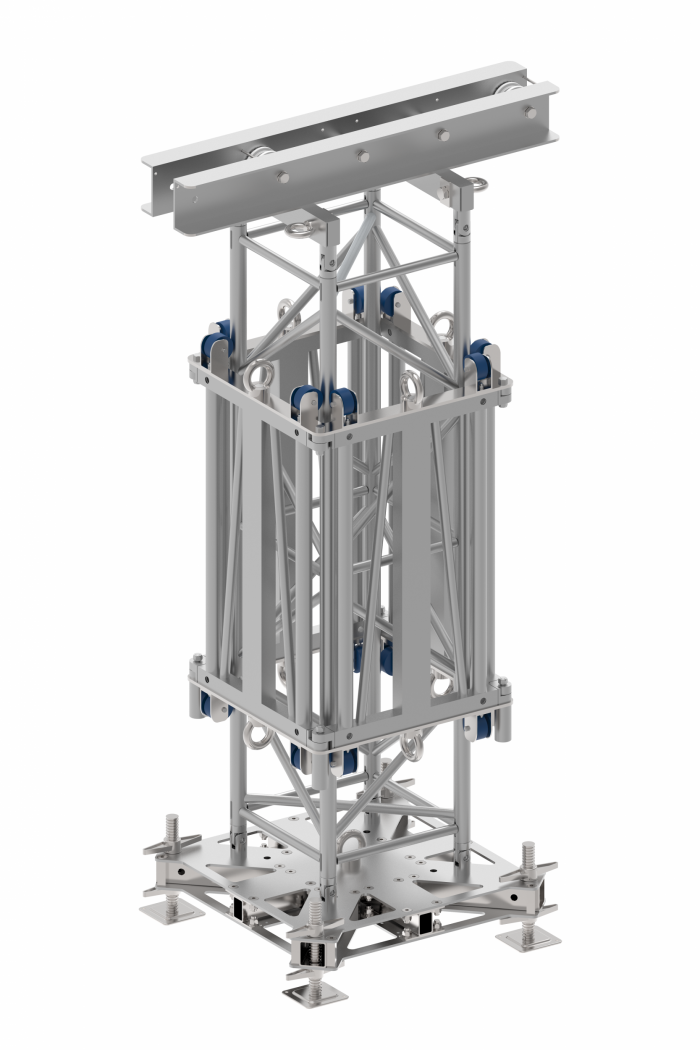

P30Q T

 Code: P30Q T

Aluminium tower, 29 cm side, maximum height 7 meters, capacity 1000 kg
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 18x2 mm

Double connection system
Aluminum spigots and conical pins with "R", or M10 bolt and nuts

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibition stands, TV studios, entertainment facilities

Available in HEAVY DUTY version with
Main tubes Ø 50x3 mm
Diagonals Ø 20x2 mm



P30Q T

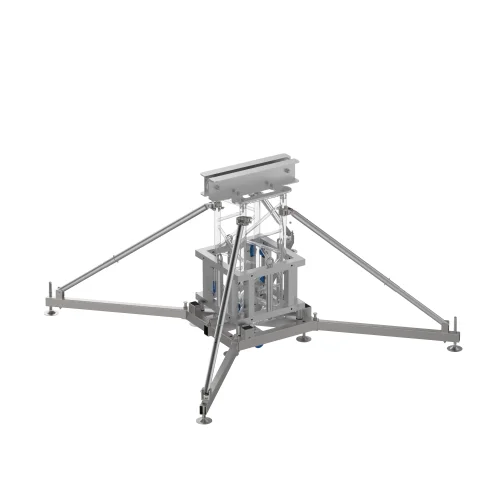

P40Q T

Code: P40Q T

Aluminium tower, 40 cm side, maximum height 10 meters, capacity 2000 kg
Technical information
Main tubess Ø 50x2 mm
Diagonals Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, television studios, entertainment facilities, all those jobs that require a large scale

P40Q T

F52Q T

Code: F52Q T

Aluminum tower, 52 cm side, maximum height 14 meters, capacity 3000 kg
Technical information
Main tubes Ø 50x4 mm
Diagonals Ø 30x3 mm

Connection system
Fork connection, pins with "R" clips

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, entertainment facilities, all those jobs that require a great deal

F52Q T

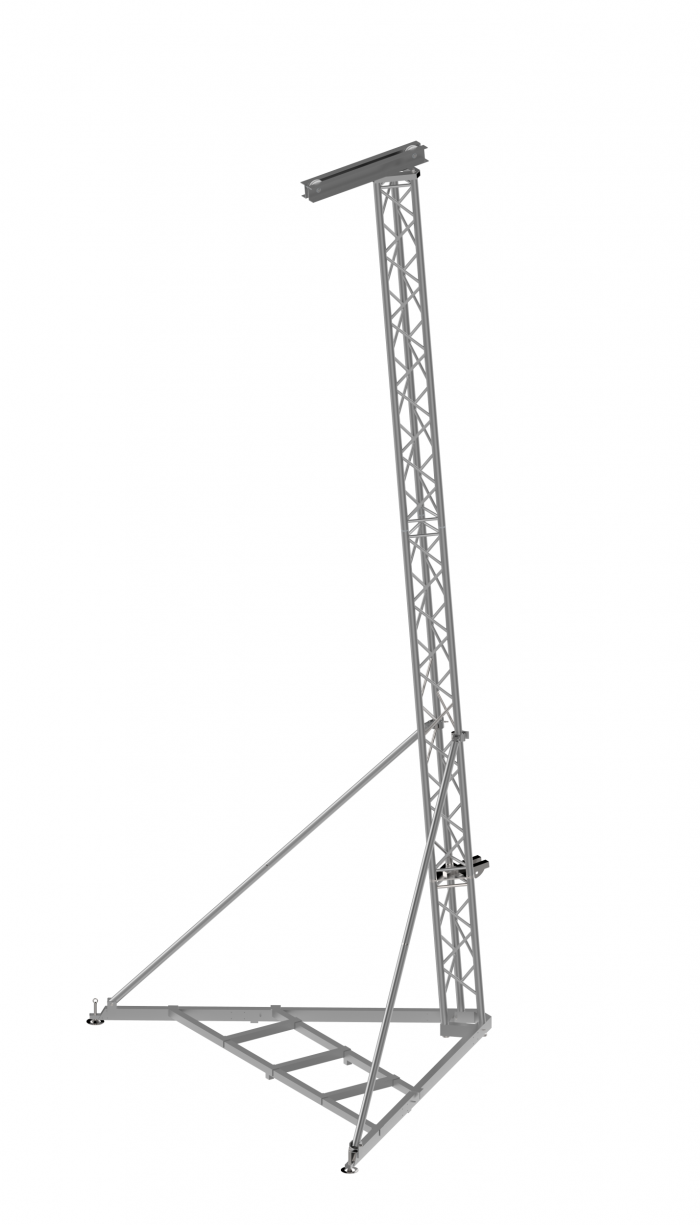

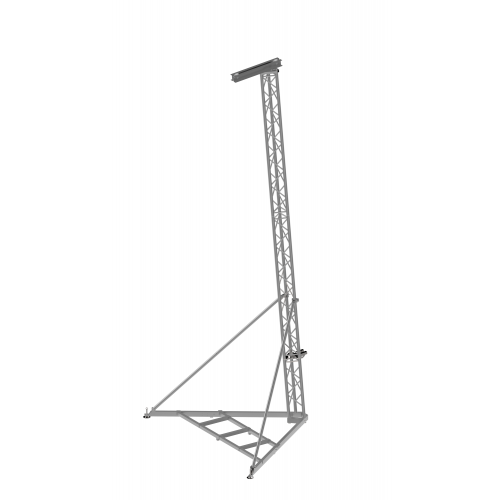

B30T SL


Code: B30T SL

Lift 6 meters, capacity 300 kg
Technical information
Main tubes Ø 50x2 mm
Diagonals Ø 20x2 mm

Finishing
Natural aluminum or customized painting

Applications
Ideal for suspending audio systems


Lift for audio systems, load capacity 300 kg

Roof Systems

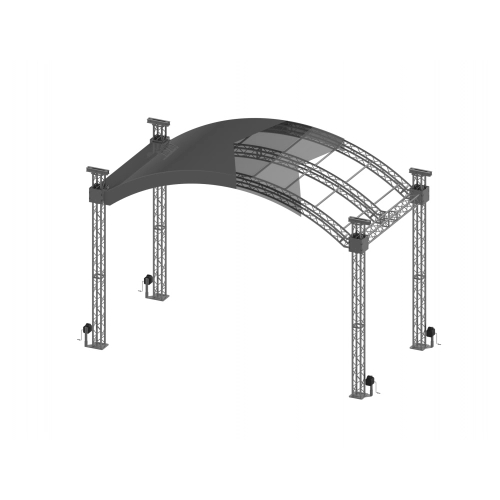

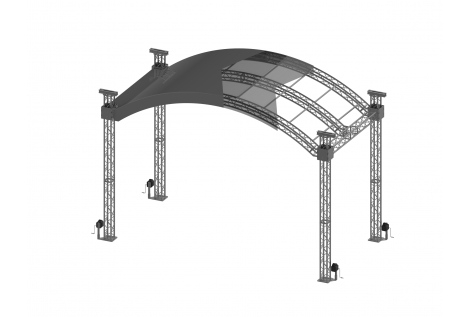

Arc Roof









Code: AR

Arc Roof
This roof is available in two versions:
  •   8x6 meters, height 7 meters
  • 10x8 meters, height 7 meters
Made with 29 and 40 section trusses .
Tower P30Q T


CodeDescription

AR30 0806    Arc Roof 8x6 m, height 7 m : 4 Towers P30Q T, 4 manual winches, roof with P30Q trusses and crosswise tubes with
spring clamp, PVC sheet (color of your choice), complete with all accessories for mounting. Lifting system excluded

AR40 1008Arc Roof 10x8 m, height 7 m: 4 Towers P30Q T , 4 manual winches, roof with P40Q trusses and crosswise tubes with
spring clamp, PVC sheet (color of your choice), complete with all accessories for mounting. Lifting system excluded


Other configurations available upon request




Arc Roof

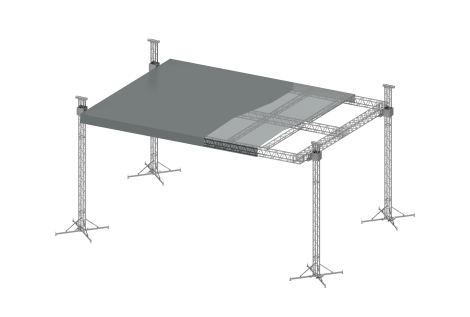

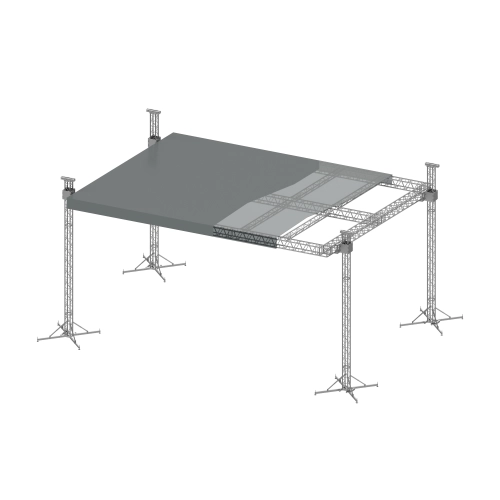

Standard Roof



Code: SR

Standard coverage
This cover is available in two versions:
  • 10x 8 meters, height 7 meters
  • 12x10 meters, height 8 meters
Made with 40 section trusses.
Tower P30Q T or P40Q T



CodeDescription

SR40 1008Flat roof 10x8 m, height 7 m: 4 Towers P30Q T , 4 articulated flanges for the slide corner block, roof with P40Q trusses, crosswise trusses with clamp, PVC cover (color of your choice), complete with all mounting accessories. Lifting system excluded

SR40 1210Flat roof 12x10 m, height 8 m: 4 Towers P40Q T , 4 articulated flanges for the slide corner block, roof with P40Q trusses, crosswise trusses with clamp, PVC cover (color of your choice), complete with all mounting accessories. Lifting system excluded



Other configurations available upon request

Standard Roof






Peak Roof System



Code: PR

Double Pitched Roof
This roof is available in two versions:
  • 12x10 meters, height 8 meters
  • 14x12 meters, height 10 meters
Made with section 40 trusses.

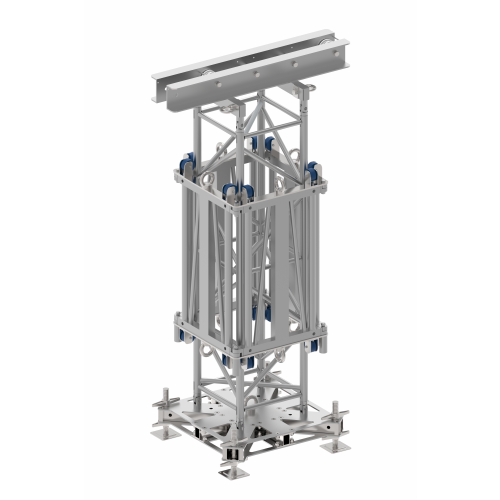

Tower P40Q T and P40QH T



CodeDescription

PR40 1210     Cover with double pitch 12x10 m, height 8 m: 4 Towers P40Q T , roof with P40QH trusses, crosswise trusses with clamp,
PVC cover (color of your choice), complete with all accessories for assembly. Lifting system excluded

PR40 1412Cover with double pitch 14x12 m, height 10 m: 4 Towers P40QH T , roof with P40QH trusses, crosswise trusses with clamp,
PVC cover (color of your choice), complete with all accessories for assembly. Lifting system excluded


Other configurations available upon request

F52Q T

Modular Stage

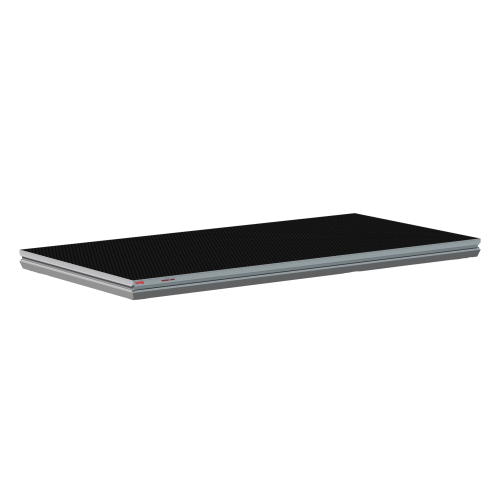

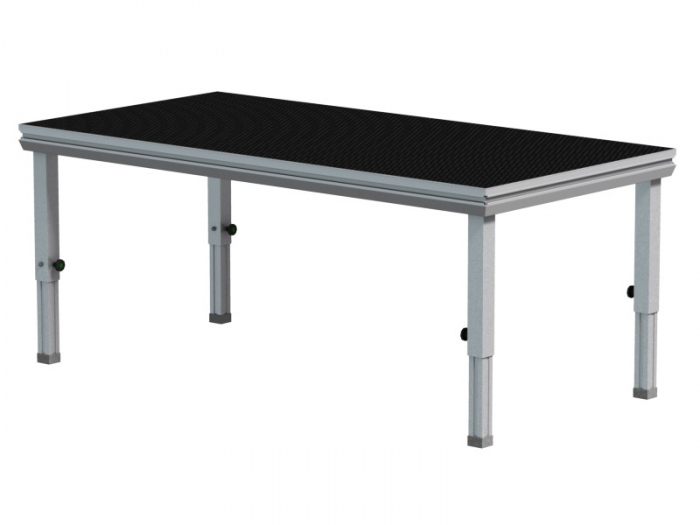

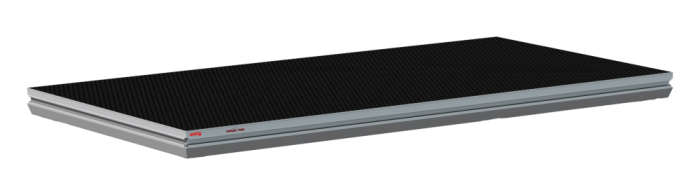

Stage Deck





Code: SD

Modular wood deck with HEXA finish and aluminum frame
Technical information
  • Capacity of 750 kg / m²
  • Minimum Flexion
  • Only 32kg for the 2x1 m deck


Stage Deck

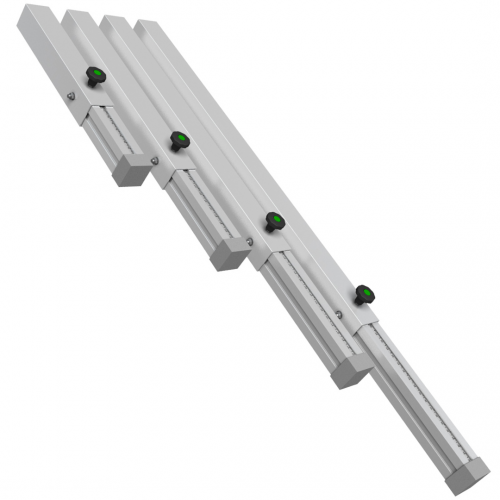

Telescopic Legs



Code: STL

AluminiumTelescopic legs
Technical information

  • 60x60 mm aluminium profile
  • Notches numbered in cm to set the desired height
  • Knob for easy adjustment
  • Plastic cap for floor protection



Standard Legs

Code: SSL

Aluminium Standard legs.
Technical information

  • 60x60 mm aluminium profile
  • Plastic cap for floor protection

Legs

Modular Steps

Code: SMS

Aluminium Modular Steps
Technical information
  • Steps with HEXA surface and non-slip edge
  • Easily connected to reach desired heights
  • Heights: from 20 to 80 cm

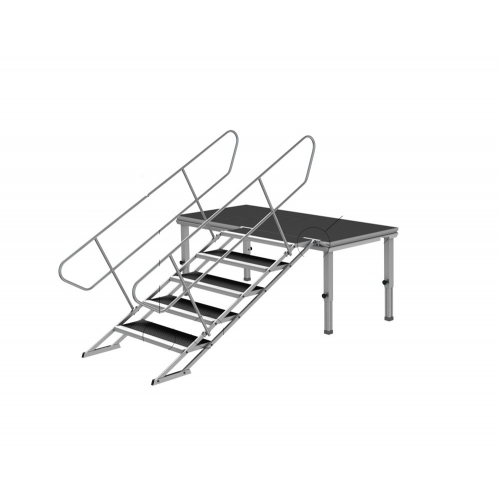

Adjustable Steps


Code: SAS

Aluminium Adjustable Steps
Technical information
  • Steps with HEXA surface and non-slip edge
  • Easily connected to reach desired heights
  • Heights: from 40 to 180 cm

Stairs

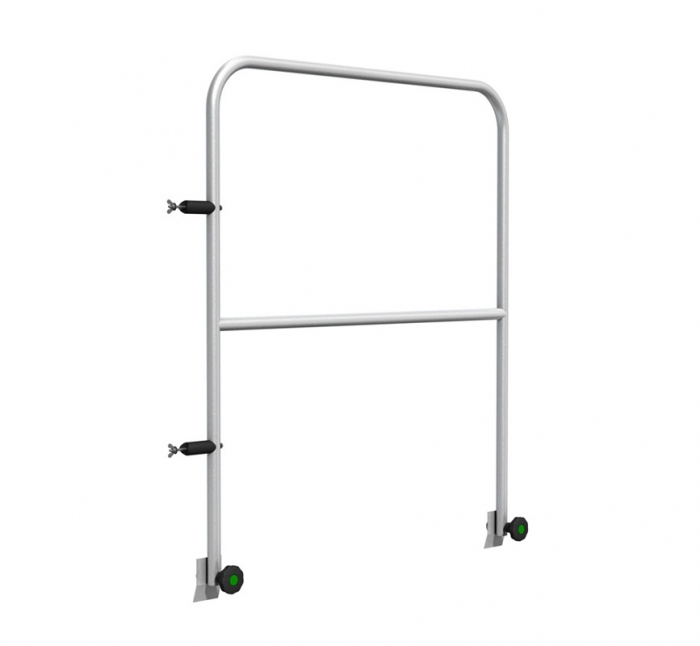

Rounded Edge Handrails

Code: SHR

Rounded Edge Handrail
Technical information

  • Steel railing for Stage Deck, galvanized or black
  • Built-in connection clamps
  • 2 Connectionsoni with wing nuts between the built-in handrails

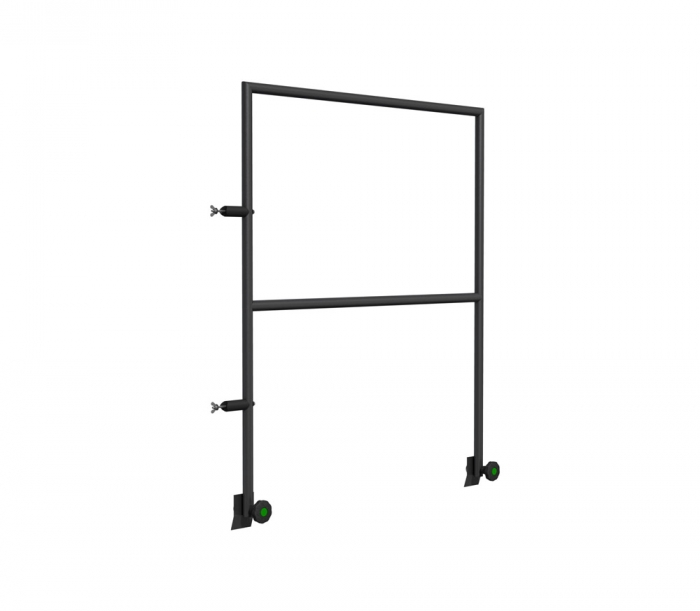

Sharp Edge Handrail



Code: SHS

Sharp Edge Handrails
Technical information

  • Steel railing for Stage Deck, galvanized or black
  • Built-in connection clamps
  • 2 Connectionsoni with wing nuts between the built-in railings

Handrails

DIVOlogobanner NEW

Code: DSB320




Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the IGVW SQP2 guideline


TECHNICAL SPECIFICATIONS
Load capacity320 kg
Lifting speed at 50 Hz4m / min
Operating voltage400 V - 50 Hz
Protection ClassIP 55 DIN 40050
Motor power at 50 Hz0.18 kW
FEM Class1Bm
AC braking system1 brake
Noise level<67.5 dB (full load)
Load wheel5 pockets
RUD® Load chain4x12 mm
Number of chains1
Chain weight0.36 kg / m
Weight of the body11 kg
Type of controlDirect Control
Type of connector | Red Plug400V EEC 16A - 3P + T
Climbing usepermitted
Safety factor5: 1
Handlesoptional

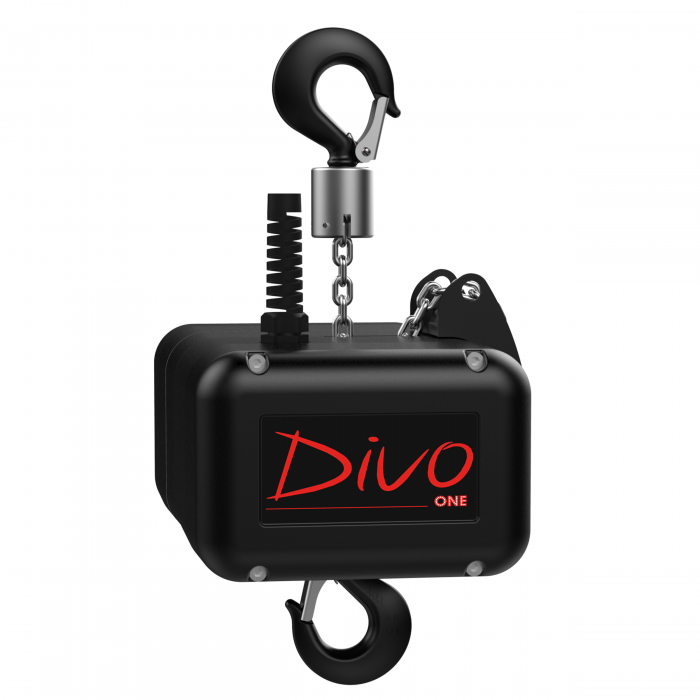

DIVO ONE

Code: DMF500

Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the IGVW SQP2 guideline



TECHNICAL SPECIFICATIONS
Load capacity500 kg
Lifting speed at 50 Hz4m / min
Operating voltage400V 50 Hz
Protection ClassIP 55 DIN 40050
Motor power at 50 Hz0.37 kW
FEM Class2m
DC braking system1 brake
Noise level<67.5 dB (full load)
Loading wheel6 pockets
RUD® Load chain5x15 mm
Number of chains1
Chain weight0.54 kg / m
Weight of the machine body-
Type of controlDirect Control
Type of connector400V EEC 16 A - 3P + T
Climbing usepermitted
Safety factor5: 1
End Stroom Stromag® with 4 switchesOptional

DIVO TWO

Code: DLM1000

Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the IGVW SQP2 guideline


TECHNICAL SPECIFICATIONS
Load capacity1000 kg
Lifting speed at 50 Hz4m / min
Operating voltage400V 50 Hz
Protection ClassIP 55 DIN 40050
Motor power at 50 Hz0.72 kW
FEM Class1Bm
DC braking system1 brake
Noise level<67.5 dB (full load)
Loading wheel5 pockets
RUD® Load chain6,3x19 mm
Number of chains1
Chain weight0.86 kg / m
Weight of the body-
Type of controlDirect Control
Type of connector | Red Plug400V EEC 16 A - 3P + T
Climbing usepermitted
Safety factor5: 1
End Stroom Stromag® with 4 switchesOptional

DIVO THREE

TECHNICAL SPECIFICATIONS
Load capacity1000 kg
Lifting speed at 50 Hz4m / min
Operating voltage400V 50 Hz
Protection ClassIP 55 DIN 40050
Motor power at 50 Hz0.75 kW
FEM Class2m
DC braking system1 brake
Noise level<67.5 dB (full load)
Loading wheel5 pocketes
RUD® Load chain8x24 mm
Number of chains1
Chain weight1.4 kg / m
Weight of the machine body52 kg
Type of controlDirect Control
Type of connector | Red Plug400V EEC 16A - 3P + T
Climbing usepermitted
Safety factor8: 1
End Stroom Stromag® with 4 switchesOptional

DIVO FOUR

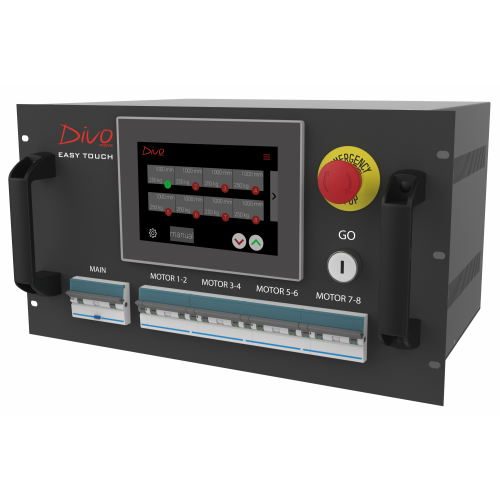

Easy Touch



Easy Touch

Technical information
8 channels Motor Controller with 7 "touchscreen panel.
Management of multiple slave units up to a maximum of 12 (96 total channels).
Integrated software with reading of the load and position.
E-Stop, channel protection



TECHNICAL SPECIFICATIONS
Operating voltage220/400 V - 3P + E - 50/60 Hz
Protection classIP 55 DIN 40050
Outputs4 Harting / Socapex connector
Weight15 kg
Channel Selection7 "Touch Screen
dimensions6U Rack, 420mm depth
Portable remote control with cableOptional
E-StopIncluded

Easy Touch

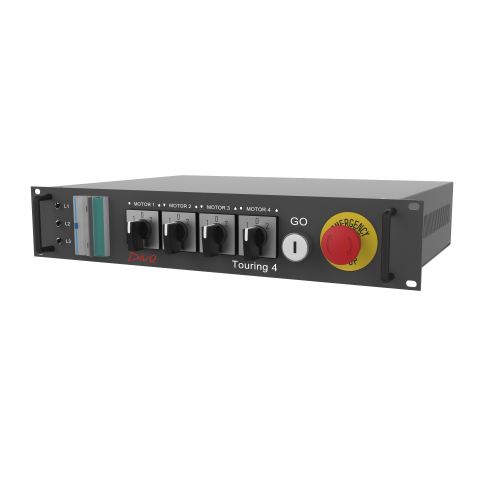

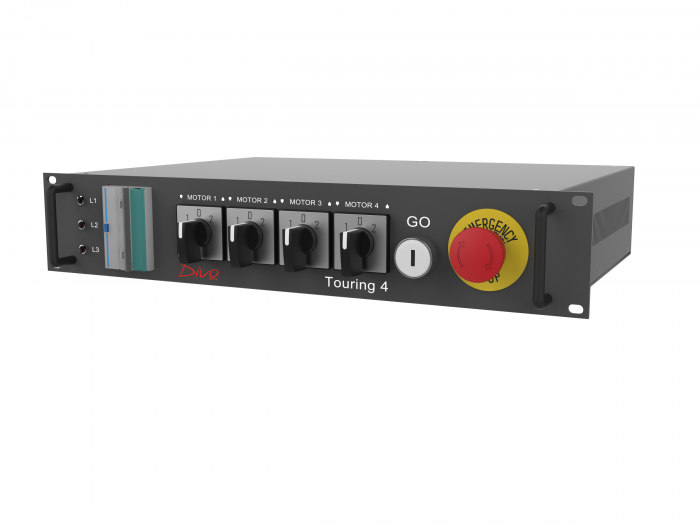

Touring



Touring

Technical information

Motor Controller 4 and 8 channels, in standard version.

TECHNICAL SPECIFICATIONS
 4 channels8 channels
Operating voltage220/400 V - 3P + E - 50/60 Hz220/400 V - 3P + E - 50/60 Hz
Protection classIP 55 DIN 40050IP 55 DIN 40050
Outputs400V CEE 46 A - 3P + E400V CEE 46 A - 3P + E
Weight8 kg14 kg
dimensions2U rack 420mm4U rack 420mm
E-StopIncludedIncluded

Touring

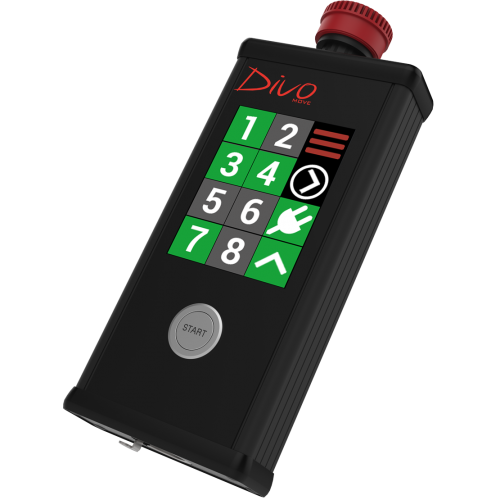

Remote Touch

Remote Touch

Technical information

Remote controller with touch screen

TECHNICAL SPECIFICATIONS
Operating voltage24 Volt - DC
Protection classIP 55
OutputsRS 485 date
Weight0.5 kg
dimensions160x72 mm
Touch Screen3.2 inches
E-StopIncluded

Remote Touch

Double push-button panel



Code: SMC02

400V Pushbutton for 2 hoists
Technical information

  • Command up / down
  • Emergency stop button

Double push-button panel

ΤΙΜΟΚΑΤΑΛΟΓΟΙ
GALLERY
  • Image 1
VIDEOS
Tags:
